WEP12864L#QP3D00000-FC

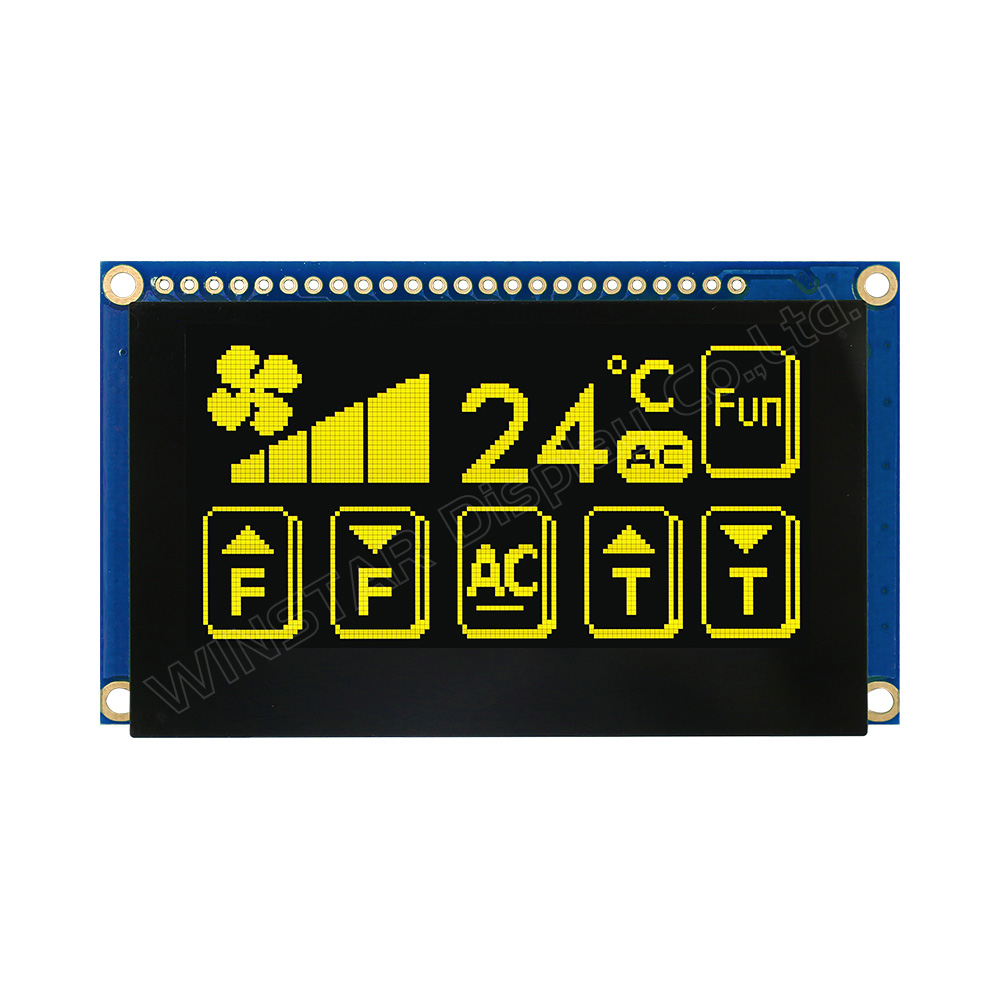

Picture of WEP12864L#QP3D00000-FC Picture of WEP12864L#QP3D00000-FC
PMOLED 2.7'' Graphic 128x64, Yellow color ,COG + PCB + Frame, 3V, Interface 6800,8080,SPI,I2C, Glare, Capacitive touch panel (GT911)

DESCRIPTION

COG Graphic OLED with Capacitive Touch Panel, diagonal size 2.7 inch, made of 128x64 pixels. This OLED module is built-in with SSD1309 IC; it supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interface, supply voltage for logic 3V, the display with 50% Check board current is 175mA @3.0V VDD (typical value), driving duty 1/64. This model is having Capacitive Touch Panel on module; it is built-in with GT911 IC which supports I2C interface, one detect point for CTP, normal glare surface glass. The module is having PCB board on module which is suitable for customers to use wire connection; customers do not need to develop extra PCB for their applications. Also, we integrated VCC circuit on PCB to make it easier for customers to use.

This model is a COG OLED display with a PCB on module. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. This OLED module is suitable for smart home application, medical device, industrial control, etc. Operating temperature from -20℃ to +70℃; storage temperature from -30℃ to +80℃.

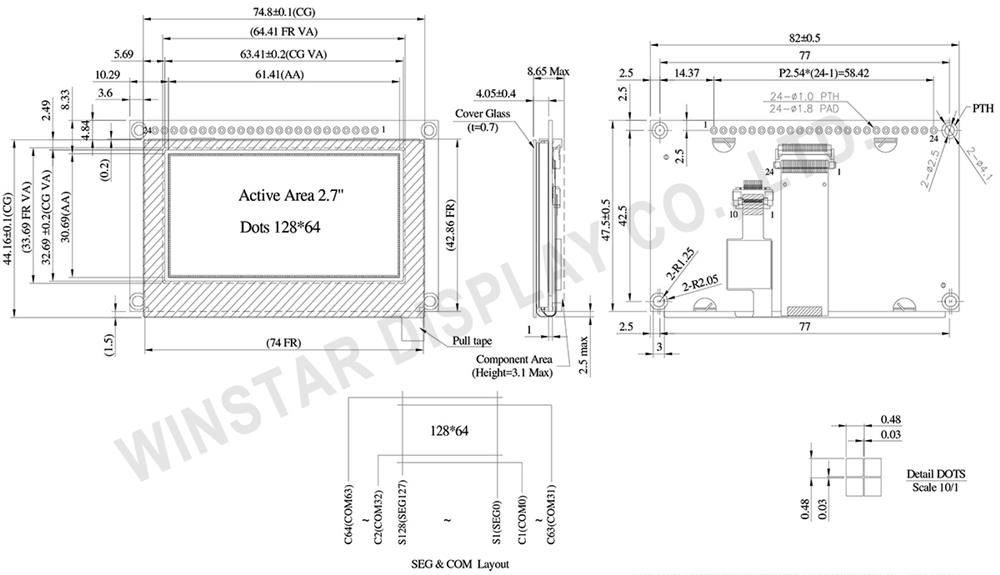

DRAWING





SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 VSS Ground.
2 VDD Power supply pin for core logic operation
3 NC No connection
4 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
In I2C mode, this pin acts as SA0 for slave address selection.
5 R/W#
(WR#)		 This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
6 E(/RD#) This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
7-14 D0~D7 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
15 NC No connection
16 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
17 CS# This pin is the chip select input connecting to the MCU.
The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
18 NC No connection
19 BS2 MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2 and BS1 are pin select
 BS1BS2
I2C 1 0
4-wire Serial 0 0
8-bit 68xx Parallel 0 1
8-bit 80xx Parallel 1 1
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD
20 BS1
21 TP_SCK I2C clock signal
22 TP_SDA I2C data signal
23 TP_INT External interrupt signal, active low
24 TP_RST External reset signal, active low



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 x 64 －
Module dimension 82.0 × 47.5 × 8.65 Max. mm
Active Area 61.41 × 30.69 mm
Pixel Size 0.45 × 0.45 mm
Pixel Pitch 0.48 × 0.48 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1309
Interface 6800,8080,4-Wire SPI,I2C
Size 2.7 inch
CTP IC GT911
Detect Point 1
CTP Interface I2C
Surface Normal Glare



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 4 V
Operating Temperature TOP -20 +70 °C
Storage Temperature TSTG -30 +80 °C




Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD － 2.8 3.0 3.3 V
High Level Input VIH － 0.8×VDD － － V
Low Level Input VIL － － － 0.2×VDD V
High Level Output VOH － 0.9×VDD － － V
Low Level Output VOL － － － 0.1×VDD V
50% Check Board operating Current VDD =3V － 175 350 mA




Touch Panel Controller GT911

ItemSymbolMinTypMaxUnit
Input High Volt. VIH 0.75xVDD   VDD+0.3 V
Input Low Volt. VIL -0.3 － 0.25xVDD V
Output High Volt. VOH 0.85xVDD － － V
Output Low Volt. VOL － － 0.15xVDD V


SKU: WEP12864L#QP3D00000-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€45.00
€37.50
€36.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€45.00 excl tax

DESCRIPTION

COG Graphic OLED with Capacitive Touch Panel, diagonal size 2.7 inch, made of 128x64 pixels. This OLED module is built-in with SSD1309 IC; it supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interface, supply voltage for logic 3V, the display with 50% Check board current is 175mA @3.0V VDD (typical value), driving duty 1/64. This model is having Capacitive Touch Panel on module; it is built-in with GT911 IC which supports I2C interface, one detect point for CTP, normal glare surface glass. The module is having PCB board on module which is suitable for customers to use wire connection; customers do not need to develop extra PCB for their applications. Also, we integrated VCC circuit on PCB to make it easier for customers to use.

This model is a COG OLED display with a PCB on module. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. This OLED module is suitable for smart home application, medical device, industrial control, etc. Operating temperature from -20℃ to +70℃; storage temperature from -30℃ to +80℃.



DRAWING





SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 VSS Ground.
2 VDD Power supply pin for core logic operation
3 NC No connection
4 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
In I2C mode, this pin acts as SA0 for slave address selection.
5 R/W#
(WR#)		 This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
6 E(/RD#) This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
7-14 D0~D7 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
15 NC No connection
16 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
17 CS# This pin is the chip select input connecting to the MCU.
The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
18 NC No connection
19 BS2 MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2 and BS1 are pin select
 BS1BS2
I2C 1 0
4-wire Serial 0 0
8-bit 68xx Parallel 0 1
8-bit 80xx Parallel 1 1
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD
20 BS1
21 TP_SCK I2C clock signal
22 TP_SDA I2C data signal
23 TP_INT External interrupt signal, active low
24 TP_RST External reset signal, active low



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 x 64 －
Module dimension 82.0 × 47.5 × 8.65 Max. mm
Active Area 61.41 × 30.69 mm
Pixel Size 0.45 × 0.45 mm
Pixel Pitch 0.48 × 0.48 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1309
Interface 6800,8080,4-Wire SPI,I2C
Size 2.7 inch
CTP IC GT911
Detect Point 1
CTP Interface I2C
Surface Normal Glare



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 4 V
Operating Temperature TOP -20 +70 °C
Storage Temperature TSTG -30 +80 °C




Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD － 2.8 3.0 3.3 V
High Level Input VIH － 0.8×VDD － － V
Low Level Input VIL － － － 0.2×VDD V
High Level Output VOH － 0.9×VDD － － V
Low Level Output VOL － － － 0.1×VDD V
50% Check Board operating Current VDD =3V － 175 350 mA




Touch Panel Controller GT911

ItemSymbolMinTypMaxUnit
Input High Volt. VIH 0.75xVDD   VDD+0.3 V
Input Low Volt. VIL -0.3 － 0.25xVDD V
Output High Volt. VOH 0.85xVDD － － V
Output Low Volt. VOL － － 0.15xVDD V


Products specifications
Brand Winstar
Size 2.7"
Resolution 128x64
Active Area (mm) 61.41x30.69
Dot Size 0.45x0.45
Polarizer Glare
Color Yellow
Power supply 3V
Display Interface 6800/8080/SPI/I2C
Display IC SSD1309ZC
Constructive Structure COG + PCB
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 24
Pin Pitch 2.54mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.7"
Resolution 128x64
Active Area (mm) 61.41x30.69
Dot Size 0.45x0.45
Polarizer Glare
Color Yellow
Power supply 3V
Display Interface 6800/8080/SPI/I2C
Display IC SSD1309ZC
Constructive Structure COG + PCB
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 24
Pin Pitch 2.54mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
