WEX25664S#A00-FC

PMOLED 2.8'' Graphic 256x64, Sky Blue color, COF, 3V, Interface 6800,8080,SPI

DESCRIPTION

Winstar 2.8 inch OLED Display Module of 256x64 COF Graphic is built-in SSD1322 IC which with the outline dimension of 84.0 x 25.8 mm, AA siez of 69.098 x 17.258 mm. Winstar COF Series are suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc. Customers can upgrade your current applications from traditional STN displays to OLED displays since Winstar provides a very wide range of dot pixel formats OLED solutions.

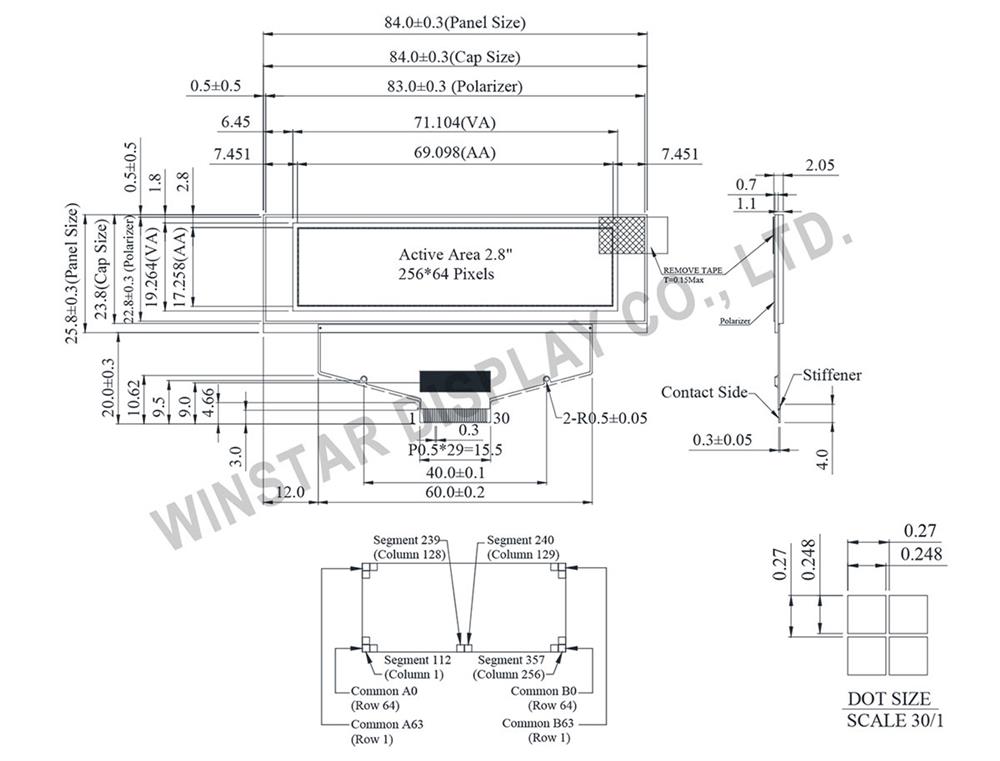

DRAWING

2.8 OLED, OLED 256x64, OLED Display 256x64, SSD1322 OLED - WEX025664A

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 NC No Connection
2 VSS Ground Pin
3 VCC Panel driving voltage
4 VCOMH COM deselected level
5 VLSS Analog system ground pin
6~13 D7~D0 Data Bus
14 E/RD# Chip Enable Signal
15 R/W# Read/Write Control
16 BS0 Interface selection
17 BS1 Interface selection
18 D/C# Data/Command Control Pin
19 CS# Chip Select Pin
20 RES# Reset Signal Pin
21 FR Not Connected
22 IREF SEG output current refer pin
23 NC No Connection
24 VDDIO Voltage for interface logic
25 VDD Voltage for logic
26 VCI Low voltage power supply
27 VSL SEG voltage refer Pin
28 VLSS Analog system ground pin
29 VCC Panel driving voltage
30 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 84.0 × 25.8 mm
Viewing area 71.104 × 19.264 mm
Active area 69.098 × 17.258 mm
Dot pitch 0.27 × 0.27 mm
Dot size 0.248 × 0.248 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 2.8 3.0 3.3 V



SKU: WEX25664S#A00-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€28.00
€22.40
€21.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€28.00 excl tax

DESCRIPTION

Winstar 2.8 inch OLED Display Module of 256x64 COF Graphic is built-in SSD1322 IC which with the outline dimension of 84.0 x 25.8 mm, AA siez of 69.098 x 17.258 mm. Winstar COF Series are suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc. Customers can upgrade your current applications from traditional STN displays to OLED displays since Winstar provides a very wide range of dot pixel formats OLED solutions.



DRAWING

2.8 OLED, OLED 256x64, OLED Display 256x64, SSD1322 OLED - WEX025664A

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 NC No Connection
2 VSS Ground Pin
3 VCC Panel driving voltage
4 VCOMH COM deselected level
5 VLSS Analog system ground pin
6~13 D7~D0 Data Bus
14 E/RD# Chip Enable Signal
15 R/W# Read/Write Control
16 BS0 Interface selection
17 BS1 Interface selection
18 D/C# Data/Command Control Pin
19 CS# Chip Select Pin
20 RES# Reset Signal Pin
21 FR Not Connected
22 IREF SEG output current refer pin
23 NC No Connection
24 VDDIO Voltage for interface logic
25 VDD Voltage for logic
26 VCI Low voltage power supply
27 VSL SEG voltage refer Pin
28 VLSS Analog system ground pin
29 VCC Panel driving voltage
30 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 84.0 × 25.8 mm
Viewing area 71.104 × 19.264 mm
Active area 69.098 × 17.258 mm
Dot pitch 0.27 × 0.27 mm
Dot size 0.248 × 0.248 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 2.8 3.0 3.3 V



Products specifications
Brand Winstar
Size 2.8"
Resolution 256x64
Active Area (mm) 69.09x17.25
Dot Size 0.24x0.24
Polarizer Glare
Color Sky Blue
Power supply 3V
Display Interface 6800/8080/SPI
Display IC Controller SSD1322UR1
Constructive Structure COF
Frame No
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FPC per ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
