WF0128-240240BD#0P0-FC

TFT 1.28'' 240x240, Circular, LCD + IC Controller, Interface MCU (SPI) IC GC9A01, Wide View Angle (IPS), 400cd/m², No touch

DESCRIPTION

Round IPS TFT-LCD screen with a 1.28-inch diameter display with resolution 240x240 pixels. This round TFT display comprises an IPS TFT-LCD panel built with a GC9A01 driver IC that can communicate via SPI interface.

IPS panel with the advantage of higher contrast, true black background when the display or pixel is off and wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 1,000:1 (typical value), brightness 400 nits (typical value), anti-glare surface panel. Capacitive touch panel option available.

The power supply voltage of LCM is from 2.7V to 3.3V, the typical value of 2.8V. It can be operating at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃. The display modules are suited for compact devices like smart gauges, wearable devices, and meter applications. They are also ideal for home automation products, white products, and video systems.

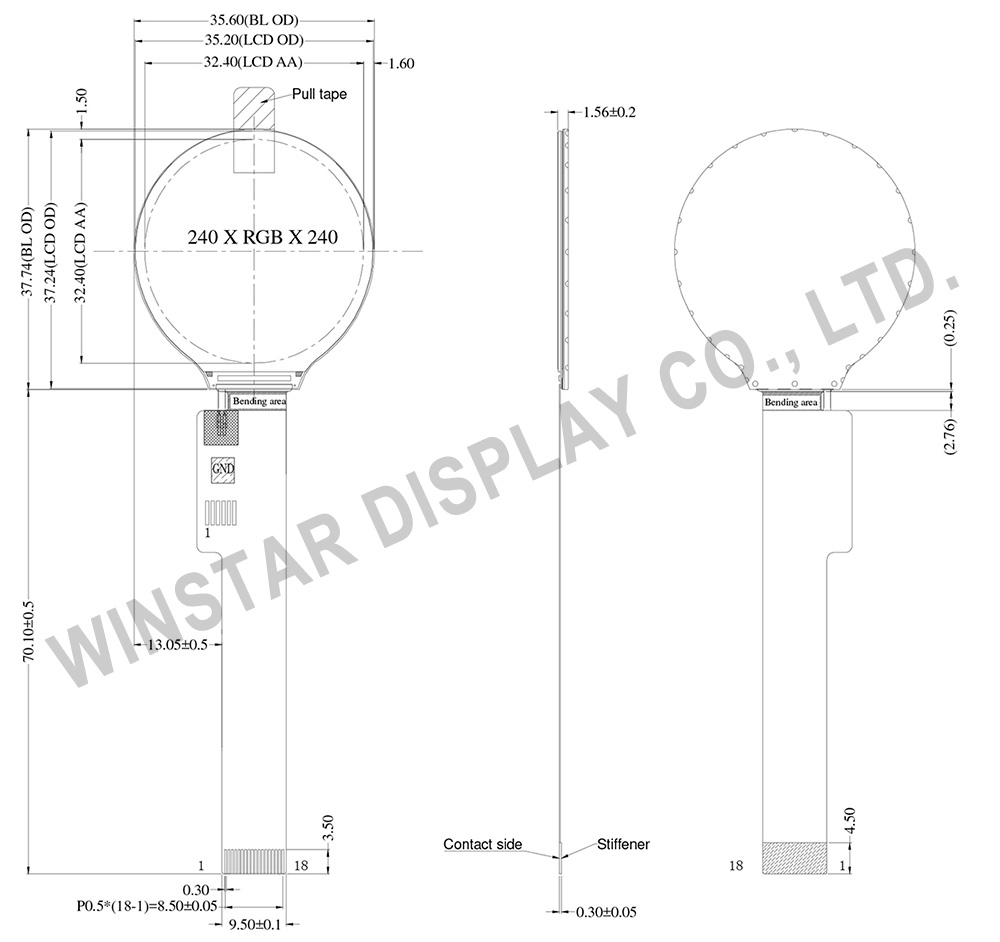

DRAWING

SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1-6 NC No connection
7 VLED+ Backlit positive
8 VLED- Backlit negative
9 GND Ground
10 CS Chip select signal
11 SCL Serial clock
12 SDA Serial data signal
13 RS Register select signal
14 TE TE signal
15 RESET LCD RESET Signal
16 VCI3.3V LCD Power supply
17 NC No connection
18 GND Ground



General Specifications

ItemDimensionUnit
Size 1.28 inch
Pixel Number 240 × RGB × 240 (TFT) pixel
Module dimension 35.60 × 37.74 × 1.56 mm
Active Area 32.40 × 32.40 mm
Pixel Pitch 0.043 × 0.135 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
TFT Interface SPI
Backlight Type LED, Normally White
Driver IC GC9A01
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionsStandard ValueUnit
MinTypMax
Power Supply Voltage for Analog VCI Ta= +25℃ 2.7 2.8 3.3 V
Input High Voltage for LCD VIH - 0.8Iovcc - Iovcc V
Input Low Voltage for LCD VIL - Vss - 0.2 Iovcc V
Output High Voltage for LCD VOH - 0.8Iovcc - Iovcc V
Output Low Voltage for LCD VOL - Vss - 0.2 Iovcc V
SKU: WF0128-240240BD#0P0-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€27.10
€21.70
€18.30
€17.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€27.10 excl tax

DESCRIPTION

Round IPS TFT-LCD screen with a 1.28-inch diameter display with resolution 240x240 pixels. This round TFT display comprises an IPS TFT-LCD panel built with a GC9A01 driver IC that can communicate via SPI interface.

IPS panel with the advantage of higher contrast, true black background when the display or pixel is off and wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 1,000:1 (typical value), brightness 400 nits (typical value), anti-glare surface panel. Capacitive touch panel option available.

The power supply voltage of LCM is from 2.7V to 3.3V, the typical value of 2.8V. It can be operating at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃. The display modules are suited for compact devices like smart gauges, wearable devices, and meter applications. They are also ideal for home automation products, white products, and video systems.

DRAWING

SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1-6 NC No connection
7 VLED+ Backlit positive
8 VLED- Backlit negative
9 GND Ground
10 CS Chip select signal
11 SCL Serial clock
12 SDA Serial data signal
13 RS Register select signal
14 TE TE signal
15 RESET LCD RESET Signal
16 VCI3.3V LCD Power supply
17 NC No connection
18 GND Ground



General Specifications

ItemDimensionUnit
Size 1.28 inch
Pixel Number 240 × RGB × 240 (TFT) pixel
Module dimension 35.60 × 37.74 × 1.56 mm
Active Area 32.40 × 32.40 mm
Pixel Pitch 0.043 × 0.135 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
TFT Interface SPI
Backlight Type LED, Normally White
Driver IC GC9A01
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionsStandard ValueUnit
MinTypMax
Power Supply Voltage for Analog VCI Ta= +25℃ 2.7 2.8 3.3 V
Input High Voltage for LCD VIH - 0.8Iovcc - Iovcc V
Input Low Voltage for LCD VIL - Vss - 0.2 Iovcc V
Output High Voltage for LCD VOH - 0.8Iovcc - Iovcc V
Output Low Voltage for LCD VOL - Vss - 0.2 Iovcc V
Products specifications
Brand Winstar
Size 1.28"
Resolution 240x240
Active Area (mm) 32.40x32.40
Color Full Color
Display Interface MCU (SPI)
Display IC GC9A01
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 18
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
