WF0128-240240BD#0P19-FC

Picture of WF0128-240240BD#0P19-FC Picture of WF0128-240240BD#0P19-FC
TFT 1.28'' 240x240, Round, LCD + IC Controller, Interface MCU (SPI) IC GC9A01, Wide View Angle (IPS), 320cd/m², Capacitive touch panel

DESCRIPTION

It is a diameter 1.28-inch round IPS TFT-LCD module with capacitive touch panel made of resolution of 240x240 pixels. This round TFT display comprises an IPS TFT-LCD panel built with a GC9A01 driver IC that can communicate via SPI interface and is equipped with a capacitive touch panel that supports I2C interface.

It is adopted IPS panel, which has the advantage of higher contrast, true black background when the display or pixel is off and wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 1,000:1 (typical value), brightness 320 nits (typical value), glare surface panel.

The power supply voltage for analog（VCI）is from 2.65 to 3.3 V, the typical value of 2.8V. It can operate temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃. The round TFT display modules are suited for compact devices like wearable devices, and smart home applications.



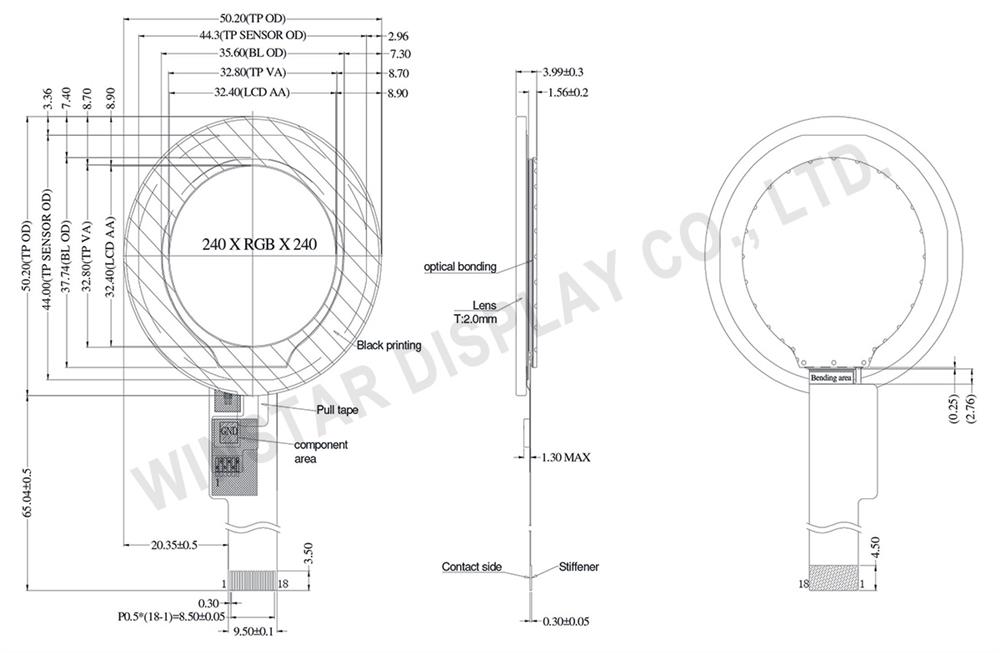

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 TP_INT INTERUPT SIGNAL
2 TP_SDA IIC DATA
3 TP_SCL IIC CLOCK
4 TP_RESET TP RESET SIGNAL
5 TP_GND Ground
6 TP_VDD3.3V CTP POWER SUPPLY
7 VLED+ Backlit positive
8 VLED- Backlit negative
9 GND Ground
10 CS Chip select signal
11 SCL Serial clock
12 SDA Serial data signal
13 RS Register select signal
14 TE TE signal
15 RESET LCD RESET Signal
16 VCI3.3V LCD Power supply
17 NC No connection
18 GND Ground



General Specifications

ItemDimensionUnit
Size 1.28 inch
Pixel Number 240 × RGB × 240 (TFT) dots
Module dimension 50.20 × 50.20 × 3.99 mm
Active Area 32.40 × 32.40 mm
Pixel Pitch 0.043 × 0.135 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
TFT Interface SPI
Backlight Type LED, Normally White
Driver IC GC9A01
PCAP Driver IC CTS816 or equivalent
PCAP FW Version 0X1
PCAP Resolution 240*240
Touch Panel Projected capacitive touch screen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionsStandard ValueUnit
MinTypMax
Power Supply Voltage for Analog VCI Ta= +25℃ 2.65 2.8 3.3 V
Supply PCAP TP_VDD3.3 Ta= +25℃ 2.65 2.8 3.3 V
ICTP Ta= +25℃ - 3.0 4.5 mA
Input High Voltage for LCD VIH - 0.8Iovcc - Iovcc V
Input Low Voltage for LCD VIL - Vss - 0.2 Iovcc V
Output High Voltage for LCD VOH - 0.8Iovcc - Iovcc V
Output Low Voltage for LCD VOL - Vss - 0.2 Iovcc V

SKU: WF0128-240240BD#0P19-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€41.40
€34.50
€29.20
€28.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€41.40 excl tax

DESCRIPTION

It is a diameter 1.28-inch round IPS TFT-LCD module with capacitive touch panel made of resolution of 240x240 pixels. This round TFT display comprises an IPS TFT-LCD panel built with a GC9A01 driver IC that can communicate via SPI interface and is equipped with a capacitive touch panel that supports I2C interface.

It is adopted IPS panel, which has the advantage of higher contrast, true black background when the display or pixel is off and wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 1,000:1 (typical value), brightness 320 nits (typical value), glare surface panel.

The power supply voltage for analog（VCI）is from 2.65 to 3.3 V, the typical value of 2.8V. It can operate temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃. The round TFT display modules are suited for compact devices like wearable devices, and smart home applications.



DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 TP_INT INTERUPT SIGNAL
2 TP_SDA IIC DATA
3 TP_SCL IIC CLOCK
4 TP_RESET TP RESET SIGNAL
5 TP_GND Ground
6 TP_VDD3.3V CTP POWER SUPPLY
7 VLED+ Backlit positive
8 VLED- Backlit negative
9 GND Ground
10 CS Chip select signal
11 SCL Serial clock
12 SDA Serial data signal
13 RS Register select signal
14 TE TE signal
15 RESET LCD RESET Signal
16 VCI3.3V LCD Power supply
17 NC No connection
18 GND Ground



General Specifications

ItemDimensionUnit
Size 1.28 inch
Pixel Number 240 × RGB × 240 (TFT) dots
Module dimension 50.20 × 50.20 × 3.99 mm
Active Area 32.40 × 32.40 mm
Pixel Pitch 0.043 × 0.135 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
TFT Interface SPI
Backlight Type LED, Normally White
Driver IC GC9A01
PCAP Driver IC CTS816 or equivalent
PCAP FW Version 0X1
PCAP Resolution 240*240
Touch Panel Projected capacitive touch screen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionsStandard ValueUnit
MinTypMax
Power Supply Voltage for Analog VCI Ta= +25℃ 2.65 2.8 3.3 V
Supply PCAP TP_VDD3.3 Ta= +25℃ 2.65 2.8 3.3 V
ICTP Ta= +25℃ - 3.0 4.5 mA
Input High Voltage for LCD VIH - 0.8Iovcc - Iovcc V
Input Low Voltage for LCD VIL - Vss - 0.2 Iovcc V
Output High Voltage for LCD VOH - 0.8Iovcc - Iovcc V
Output Low Voltage for LCD VOL - Vss - 0.2 Iovcc V

Products specifications
Brand Winstar
Size 1.28"
Resolution 240x240
Active Area (mm) 32.40x32.40
Color Full Color
Display Interface MCU (SPI)
Display IC GC9A01
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 18
Pin Pitch 0.5mm
Touch Panel IC Controller CTS816
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 1.28"
Resolution 240x240
Active Area (mm) 32.40x32.40
Color Full Color
Display Interface MCU (SPI)
Display IC GC9A01
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 18
Pin Pitch 0.5mm
Touch Panel IC Controller CTS816
Preferred - Not Preferred Preferred
