WO240128-85HB2#000-FC

Graphic LCD 4,8" 240x128, B/L white, FSTN white pos, Transflective, COG + PCB with screw holes, 3V, Interface SPI 4line (6800/8080 option), 6 O'clock

DESCRIPTION

WO240128-85HB2#000-FC is a COG LCD display WO240128B model with a PCB board on module, which is made of 240x128 dots. WO240128-85HB2#000-FC is built in with ST7586S controller IC; it supports 6800 8-bit (default), 8080 8-bit parallel and serial SPI interface, power supply voltage 3.3V, 1/128 duty, 1/12 Bias. The advantage of WO240128-85HB2#000-FC is having circuit layout on PCB board and with screw holes which make modules can be fixed on customers’ applications easily. Also, there are three kinds of connector pitch sizes of 2.54mm (default), 1.0mm and 0.5mm for options. WO240128-85HB2#000-FC also have VDD 5V power supply voltage for optional.

This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. The WO240128B2 is available for FSTN positive Transflective with white LED backlight. Please contact us if you need different types of LCDs or LED combinations.

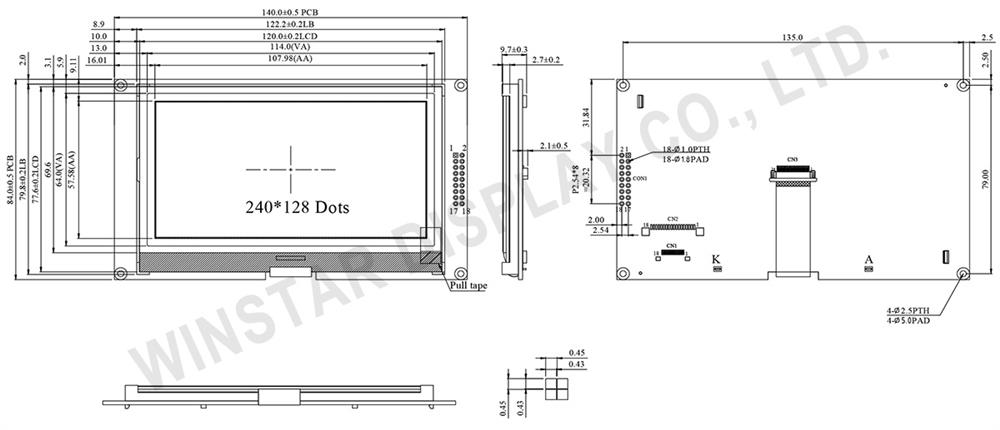

DRAWING

Chip on Glass LCD Module 240x128 with PCB - WO240128B2



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply
2 NC No connection
3 VSS Ground
4 CSB Chip select input pin
CSB=“L”: This chip is selected and the MPU interface is active
CSB=“H”: This chip is not selected and the MPU interface is disabled
(D[7:0] are high impedance)
5 RSTB Reset input pin. When RSTB is “L”, internal initialization procedure is executed
6 /RD(E) Read / Write execution control pin. (This pin is only used in parallelinterface)
MPU TypeERDDescription
6800-series E Read/Write control input pin.
R/W = "H": When E is "H", data bus is in output status.
R/W = "L": The data are latched at the falling edge of the E signal.
8080-series /RD Read enable input pin.
When /RD is "L", data bus is in out put status.
This pin is not used in serial interfaces and should be connected to VDD1
7~14 D7~D0 The bi-directional data bus of the MPU interface. When CSB is “H”, they are high impedance
If using serial interface:
D0 is the SDA signal in 4-Line & 3-Line interface
D1 is the A0 signal in 4-Line interface
15 /WR/(R/W) Read / Write execution control pin. (This pin is only used in parallel interface)
MPU TypeERDDescription
6800-series R/W Read/Write control input pin.
R/W = "H": read
R/W = "L": write
8080-series /WR Read enable input pin.
The data are latched at the rising edge of the /WR signal.
This pin is not used in serial interfaces and should be connected to VDD1
16 A0(SCL) The function of this pin is different in parallel and serial interface
In parallel interface: A0 is register selection input
A0 = "H": inputs on data bus are display data
A0 = "L": inputs on data bus are command
In serial interface: this pad will be used as SCL (serial-clock) input
17 A LED+
18 K LED-



Mechanical Data

ItemDimensionUnit
Number of dots 240 × 128 －
Module dimension 140.0 × 84.0 × 9.7 mm
View area 114.0 × 64.0 mm
Active area 107.98 × 57.58 mm
Dot size 0.43 × 0.43 mm
Dot pitch 0.45 × 0.45 mm
Drive Method 1/128 Duty，1/12 Bias
Backlight Type LED
IC ST7586S



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Digital Power Supply Voltage VDDI -0.3 － 3.6 V
Analog Power supply voltage VDDA -0.3 － 3.6 V
LCD Power supply voltage V0-XV0 -0.3 － 19 V
LCD Power supply voltage VG -0.3 － 5.5 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 3.0 3.3 3.6 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=+70℃		 －
14.8
－		 －
15.0
－		 －
15.2
－		 V
V
V
Input High Volt. VIH － 0.7VDD － VDD V
Input Low Volt. VIL － VSS － 0.3 VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － VSS － 0.2VDD V
Supply Current IDD VDD=3.3V － 2.0 4.0 mA



SKU: WO240128-85HB2#000-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€36.80
€29.50
€28.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€36.80 excl tax

DESCRIPTION

WO240128-85HB2#000-FC is a COG LCD display WO240128B model with a PCB board on module, which is made of 240x128 dots. WO240128-85HB2#000-FC is built in with ST7586S controller IC; it supports 6800 8-bit (default), 8080 8-bit parallel and serial SPI interface, power supply voltage 3.3V, 1/128 duty, 1/12 Bias. The advantage of WO240128-85HB2#000-FC is having circuit layout on PCB board and with screw holes which make modules can be fixed on customers’ applications easily. Also, there are three kinds of connector pitch sizes of 2.54mm (default), 1.0mm and 0.5mm for options. WO240128-85HB2#000-FC also have VDD 5V power supply voltage for optional.

This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. The WO240128B2 is available for FSTN positive Transflective with white LED backlight. Please contact us if you need different types of LCDs or LED combinations.



DRAWING

Chip on Glass LCD Module 240x128 with PCB - WO240128B2



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply
2 NC No connection
3 VSS Ground
4 CSB Chip select input pin
CSB=“L”: This chip is selected and the MPU interface is active
CSB=“H”: This chip is not selected and the MPU interface is disabled
(D[7:0] are high impedance)
5 RSTB Reset input pin. When RSTB is “L”, internal initialization procedure is executed
6 /RD(E) Read / Write execution control pin. (This pin is only used in parallelinterface)
MPU TypeERDDescription
6800-series E Read/Write control input pin.
R/W = "H": When E is "H", data bus is in output status.
R/W = "L": The data are latched at the falling edge of the E signal.
8080-series /RD Read enable input pin.
When /RD is "L", data bus is in out put status.
This pin is not used in serial interfaces and should be connected to VDD1
7~14 D7~D0 The bi-directional data bus of the MPU interface. When CSB is “H”, they are high impedance
If using serial interface:
D0 is the SDA signal in 4-Line & 3-Line interface
D1 is the A0 signal in 4-Line interface
15 /WR/(R/W) Read / Write execution control pin. (This pin is only used in parallel interface)
MPU TypeERDDescription
6800-series R/W Read/Write control input pin.
R/W = "H": read
R/W = "L": write
8080-series /WR Read enable input pin.
The data are latched at the rising edge of the /WR signal.
This pin is not used in serial interfaces and should be connected to VDD1
16 A0(SCL) The function of this pin is different in parallel and serial interface
In parallel interface: A0 is register selection input
A0 = "H": inputs on data bus are display data
A0 = "L": inputs on data bus are command
In serial interface: this pad will be used as SCL (serial-clock) input
17 A LED+
18 K LED-



Mechanical Data

ItemDimensionUnit
Number of dots 240 × 128 －
Module dimension 140.0 × 84.0 × 9.7 mm
View area 114.0 × 64.0 mm
Active area 107.98 × 57.58 mm
Dot size 0.43 × 0.43 mm
Dot pitch 0.45 × 0.45 mm
Drive Method 1/128 Duty，1/12 Bias
Backlight Type LED
IC ST7586S



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Digital Power Supply Voltage VDDI -0.3 － 3.6 V
Analog Power supply voltage VDDA -0.3 － 3.6 V
LCD Power supply voltage V0-XV0 -0.3 － 19 V
LCD Power supply voltage VG -0.3 － 5.5 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 3.0 3.3 3.6 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=+70℃		 －
14.8
－		 －
15.0
－		 －
15.2
－		 V
V
V
Input High Volt. VIH － 0.7VDD － VDD V
Input Low Volt. VIL － VSS － 0.3 VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － VSS － 0.2VDD V
Supply Current IDD VDD=3.3V － 2.0 4.0 mA



Products specifications
Brand Winstar
Size 4.8"
Resolution 240x128
Active Area (mm) 107.98x57.58
Dot Size 0.43x0.43
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface SPI
Display IC ST7586S
Constructive Structure COG + PCB
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 18
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.8"
Resolution 240x128
Active Area (mm) 107.98x57.58
Dot Size 0.43x0.43
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface SPI
Display IC ST7586S
Constructive Structure COG + PCB
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 18
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
