WF35-320480UD#0P1-FC

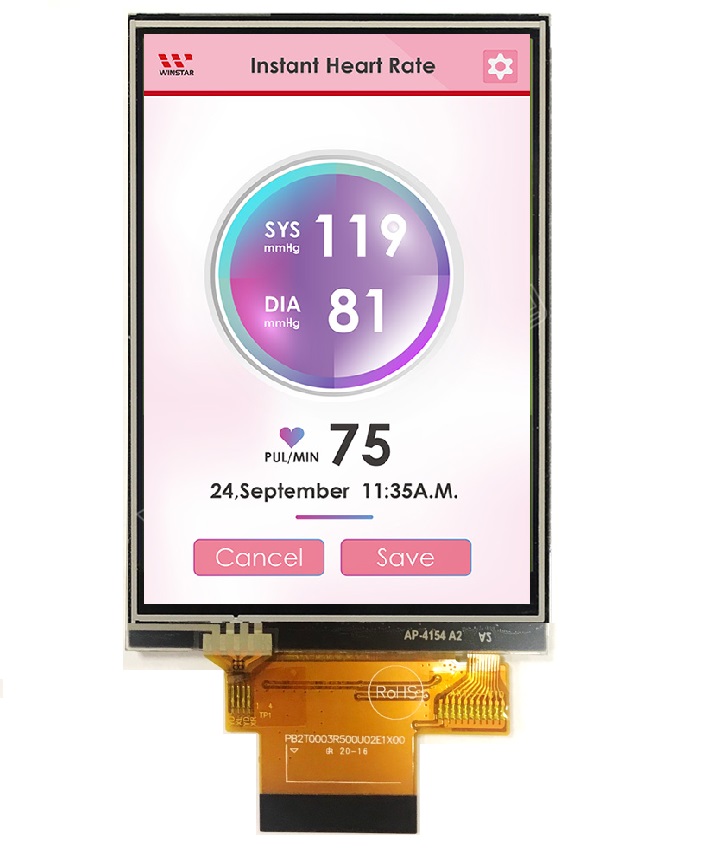

Picture of WF35-320480UD#0P1-FC Picture of WF35-320480UD#0P1-FC
TFT 3.5'' 320x480, Portrait, LCD + IC Controller, Interface MCU/SPI IC ILI9488, 600cd/m², Wide View Angle (IPS), Resistive touch panel

DESCRIPTION



3.5 inch IPS Panel with 320x480 resolution TFT LCD module. This module is built in with ILI9488 IC; it supports MCU interface and featured with brightness 600 nits (typical value without touch). Resistive touch panel version.

This 3.5” TFT LCD module is portrait mode with IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical). Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.



DRAWING

INTERFACE

NOSymbolFunctionI/O
1 LEDK Cathode of LED backlight P
2 LEDA Anode of LED backlight. P
3 IM0 Note 1 I
4 IM1 Note 1 I
5 IM2 Note 1 I
6 RESET System reset pin. I
7 NC No connection
8 NC No connection
9 NC No connection
10 NC No connection
11~28 DB17-0 Data bus I/O
29 NC (SDA) Connection (serial data input/output pin) I/O
30 RD Read strobe signal. Read out data when RDX is Low. I
31 WR (SCL) Write data when WRX is Low.(serial clock input pin) I
32 D/C register select I
33 CS (NCS) Chip select signal (serial chip select input pin) I
34 IOVCC Power supply(TYP:1.8V/2.8V). P
35 VCI Power supply(TYP:2.8V). P
36 GND Ground P
37 YD Bottom electrode
38 XR Right electrode
39 YU Top electrode
40 XL Left electrode

Note 1:
IM2IM1IM0MPU  InterfaceGRAM
0 1 0 8080 MCU 16-bit bus D[15:0]
0 1 1 8080 MCU 8-bit bus D[7:0]
1 0 1 3-Line SPI (SDA,SCL,NCS)



SKU: WF35-320480UD#0P1-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€25.60
€20.40
€18.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€25.60 excl tax

DESCRIPTION



3.5 inch IPS Panel with 320x480 resolution TFT LCD module. This module is built in with ILI9488 IC; it supports MCU interface and featured with brightness 600 nits (typical value without touch). Resistive touch panel version.

This 3.5” TFT LCD module is portrait mode with IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical). Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.



DRAWING

INTERFACE

NOSymbolFunctionI/O
1 LEDK Cathode of LED backlight P
2 LEDA Anode of LED backlight. P
3 IM0 Note 1 I
4 IM1 Note 1 I
5 IM2 Note 1 I
6 RESET System reset pin. I
7 NC No connection
8 NC No connection
9 NC No connection
10 NC No connection
11~28 DB17-0 Data bus I/O
29 NC (SDA) Connection (serial data input/output pin) I/O
30 RD Read strobe signal. Read out data when RDX is Low. I
31 WR (SCL) Write data when WRX is Low.(serial clock input pin) I
32 D/C register select I
33 CS (NCS) Chip select signal (serial chip select input pin) I
34 IOVCC Power supply(TYP:1.8V/2.8V). P
35 VCI Power supply(TYP:2.8V). P
36 GND Ground P
37 YD Bottom electrode
38 XR Right electrode
39 YU Top electrode
40 XL Left electrode

Note 1:
IM2IM1IM0MPU  InterfaceGRAM
0 1 0 8080 MCU 16-bit bus D[15:0]
0 1 1 8080 MCU 8-bit bus D[7:0]
1 0 1 3-Line SPI (SDA,SCL,NCS)



Products specifications
Brand Winstar
Size 3.5"
Resolution 320x480
Active Area (mm) 48.96x73.44
Color Full Color
Display Interface MCU/SPI
Display IC Controller ILI9488
View Angle IPS
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x480
Active Area (mm) 48.96x73.44
Color Full Color
Display Interface MCU/SPI
Display IC Controller ILI9488
View Angle IPS
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
