WF101-1280800KL#0P0-FC

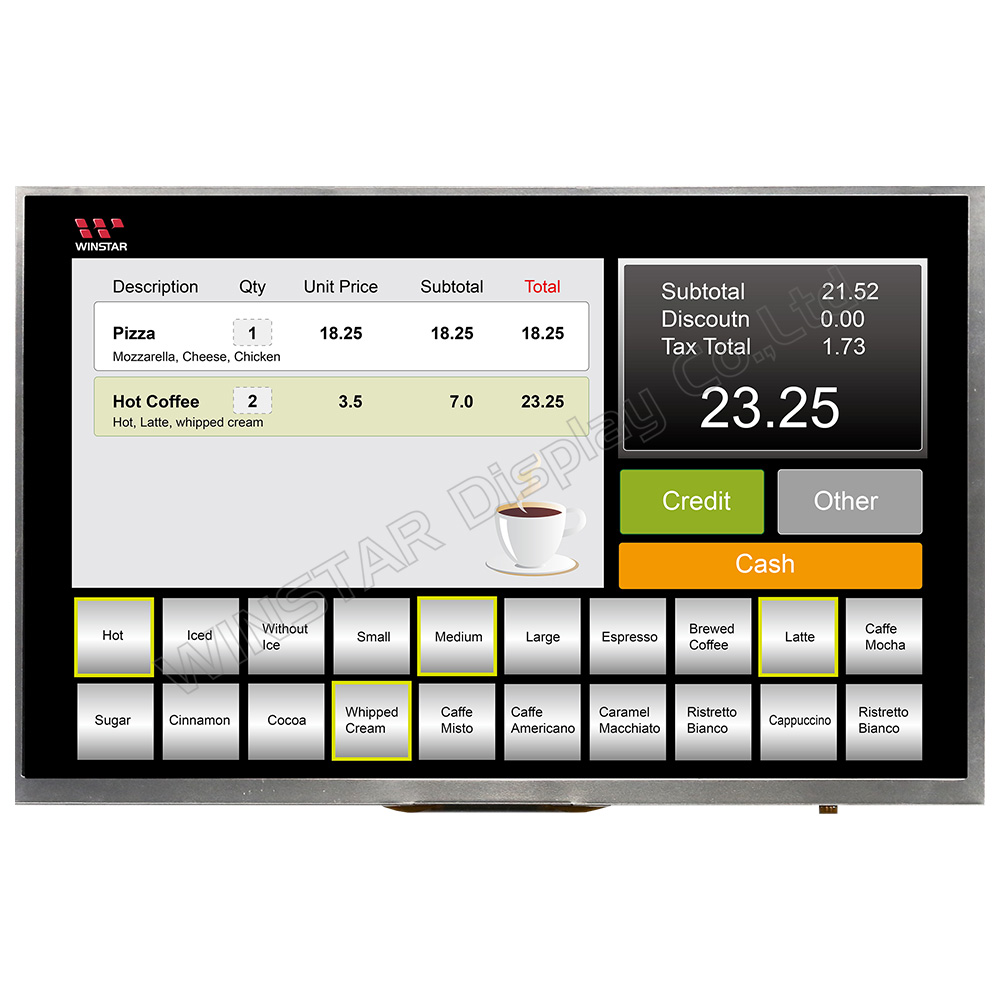

Picture of WF101-1280800KL#0P0-FC Picture of WF101-1280800KL#0P0-FC
TFT 10.1" 1280x800 LCD Panel, Interface LVDS, 350cd/m², Wide View Angle (IPS), No touch

DESCRIPTION

10.1-inch IPS TFT-LCD display, made of resolution 1280x800 pixels. This module is built-in with EK79202B1 driver IC, and it supports LVDS interface. IPS panel which is having the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 1000:1 (typical value), brightness 350 nits (minimum value), anti-glare surface panel, aspect ratio 16:10. WF101K model is also available in projected capacitive touch screen (PCAP) and resistive touch screen (RTP).

The supply voltage (VCC) is from 3.0V to 3.5V, the typical value of 3.3V. Operating temperature from -20℃ to +70℃ and storage temperature from -30℃ to +80℃.

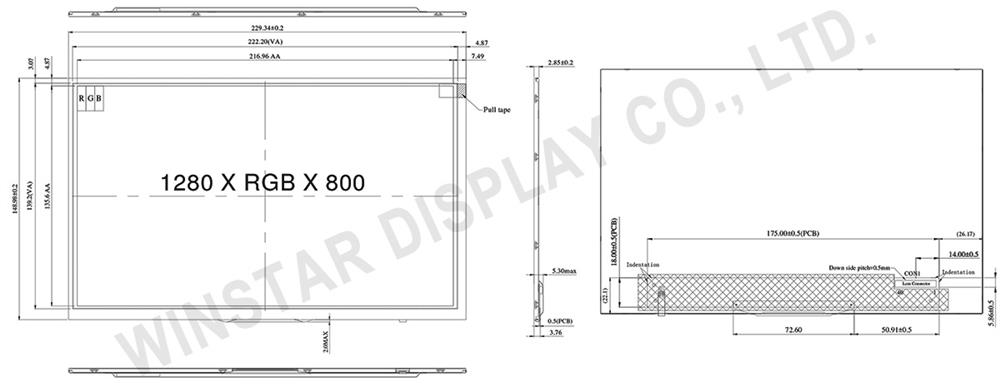

DRAWING



SPECIFICATIONS

Interface

Pin No.SymbolI/OFunctionRemark
1 NC - No connection
2 VCC P Power Supply
3 VCC P Power Supply
4 NC - No connection
5 NC - No connection
6 NC - No connection
7 GND P Ground
8 Rxin0- I -LVDS Differential Data Input R0-R5,G0
9 Rxin0+ I +LVDS Differential Data Input
10 GND P Ground
11 Rxin1- I -LVDS Differential Data Input G1G5,B0,B1
12 Rxin1+ I +LVDS Differential Data Input
13 GND P Ground
14 Rxin2- I -LVDS Differential Data Input B2-B5,HS,VS, DE
15 Rxin2+ I +LVDS Differential Data Input
16 GND P Ground
17 RxCLK- I -LVDS Differential Clock Input LVDS CLK
18 RxCLK+ I +LVDS Differential Clock Input
19 GND P Ground
20 Rxin3- I -LVDS Differential Data Input R6,R7,G6,G7,
B6,B7
21 Rxin3+ I +LVDS Differential Data Input
22 GND P Ground
23 NC - No connection
24 NC - No connection
25 GND P Ground
26 NC - No connection
27 NC - No connection
28 NC - No connection
29 NC - No connection
30 GND P Ground
31 LED- P LED Cathode
32 LED- P LED Cathode
33 NC - No connection
34 NC - No connection
35 VGL P Gate OFF Voltage
36 NC - No connection
37 NC - No connection
38 VGH P Gate ON Voltage
39 LED+ P LED Anode
40 LED+ P LED Anode



General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 × 3(RGB) × 800 dots
Module dimension 229.34 × 148.98 × 2.85 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
Display Mode Normally Black, Transmissive
Viewing Angle 80/80/80/80
Pixel Arrangement R.G.B. Vertical Stripe
TFT Drive IC EK79202B1 or Equivalent
TFT Interface LVDS
Backlight Type LED, Normally White
Aspect Ratio 16:10
Touch Screen Without touch screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Condition

Item

Symbol

ValuesUnit
Min.Typ.MAX.
Power voltage VCC 3.0 3.3 3.5 V
VGH   18   V
VGL   -10   V
VSP   5.5   V
VSN   -5.5   V


SKU: WF101-1280800KL#0P0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€77.60
€69.80
€58.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€77.60 excl tax

DESCRIPTION

10.1-inch IPS TFT-LCD display, made of resolution 1280x800 pixels. This module is built-in with EK79202B1 driver IC, and it supports LVDS interface. IPS panel which is having the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 1000:1 (typical value), brightness 350 nits (minimum value), anti-glare surface panel, aspect ratio 16:10. WF101K model is also available in projected capacitive touch screen (PCAP) and resistive touch screen (RTP).

The supply voltage (VCC) is from 3.0V to 3.5V, the typical value of 3.3V. Operating temperature from -20℃ to +70℃ and storage temperature from -30℃ to +80℃.



DRAWING



SPECIFICATIONS

Interface

Pin No.SymbolI/OFunctionRemark
1 NC - No connection
2 VCC P Power Supply
3 VCC P Power Supply
4 NC - No connection
5 NC - No connection
6 NC - No connection
7 GND P Ground
8 Rxin0- I -LVDS Differential Data Input R0-R5,G0
9 Rxin0+ I +LVDS Differential Data Input
10 GND P Ground
11 Rxin1- I -LVDS Differential Data Input G1G5,B0,B1
12 Rxin1+ I +LVDS Differential Data Input
13 GND P Ground
14 Rxin2- I -LVDS Differential Data Input B2-B5,HS,VS, DE
15 Rxin2+ I +LVDS Differential Data Input
16 GND P Ground
17 RxCLK- I -LVDS Differential Clock Input LVDS CLK
18 RxCLK+ I +LVDS Differential Clock Input
19 GND P Ground
20 Rxin3- I -LVDS Differential Data Input R6,R7,G6,G7,
B6,B7
21 Rxin3+ I +LVDS Differential Data Input
22 GND P Ground
23 NC - No connection
24 NC - No connection
25 GND P Ground
26 NC - No connection
27 NC - No connection
28 NC - No connection
29 NC - No connection
30 GND P Ground
31 LED- P LED Cathode
32 LED- P LED Cathode
33 NC - No connection
34 NC - No connection
35 VGL P Gate OFF Voltage
36 NC - No connection
37 NC - No connection
38 VGH P Gate ON Voltage
39 LED+ P LED Anode
40 LED+ P LED Anode



General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 × 3(RGB) × 800 dots
Module dimension 229.34 × 148.98 × 2.85 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
Display Mode Normally Black, Transmissive
Viewing Angle 80/80/80/80
Pixel Arrangement R.G.B. Vertical Stripe
TFT Drive IC EK79202B1 or Equivalent
TFT Interface LVDS
Backlight Type LED, Normally White
Aspect Ratio 16:10
Touch Screen Without touch screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Condition

Item

Symbol

ValuesUnit
Min.Typ.MAX.
Power voltage VCC 3.0 3.3 3.5 V
VGH   18   V
VGL   -10   V
VSP   5.5   V
VSN   -5.5   V


Products specifications
Brand Winstar
Size 10.1"
Resolution 1280x800
Active Area (mm) 216.96x135.60
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 10.1"
Resolution 1280x800
Active Area (mm) 216.96x135.60
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
