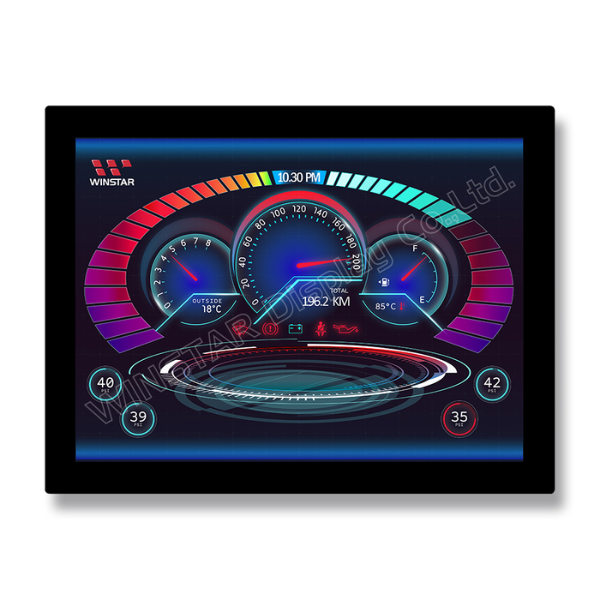

The WF104-1024768GH#VSPW8-FC is a high-brightness 1024x768 HDMI TFT-LCD display with a projected capacitive touch panel (PCAP). This module features a diagonal size of 10.4 inches and an aspect ratio of 4:3. Featuring the TFP401 Controller IC, the WF104-1024768GH#VSPW8-FC comes with a control board that exclusively supports the HDMI signal interface (DVI) for the Raspberry Pi system. Specifically designed for the Raspberry Pi platform, this TFT module includes a 40-pin GPIO connector for seamless integration. Additionally, the WF104G HDMI series supports PWM (Pulse Width Modulation) functionality for adjusting LED backlight brightness.

The WF104-1024768GH#VSPW8-FC adopts an IPS panel, providing a wider viewing angle of 80 degrees (typical value) in all directions: Left: 80 / Right: 80 / Up: 80 / Down: 80. It boasts a brightness of 800 nits (typical value) and a contrast ratio of 800:1 (typical value). Equipped with a projected capacitive touch panel (PCAP) featuring the ILI2511 IC, it supports a USB interface and offers 1/ 2/ multi-point touch capabilities.

The LCM power supply voltage ranges from 11.4V to 12.6V, with a typical value of 12.0V. The display operates within temperatures ranging from -20℃ to +70℃, with storage temperatures from -30℃ to +80℃. The 10.4-inch 1024x768 HDMI display module of the WF104-1024768GH#VSPW8-FC is suitable for use in control panels for infotainment systems in cars, industrial control systems, boat dashboards, and home security.
