WF104-1024768FL#000-FC

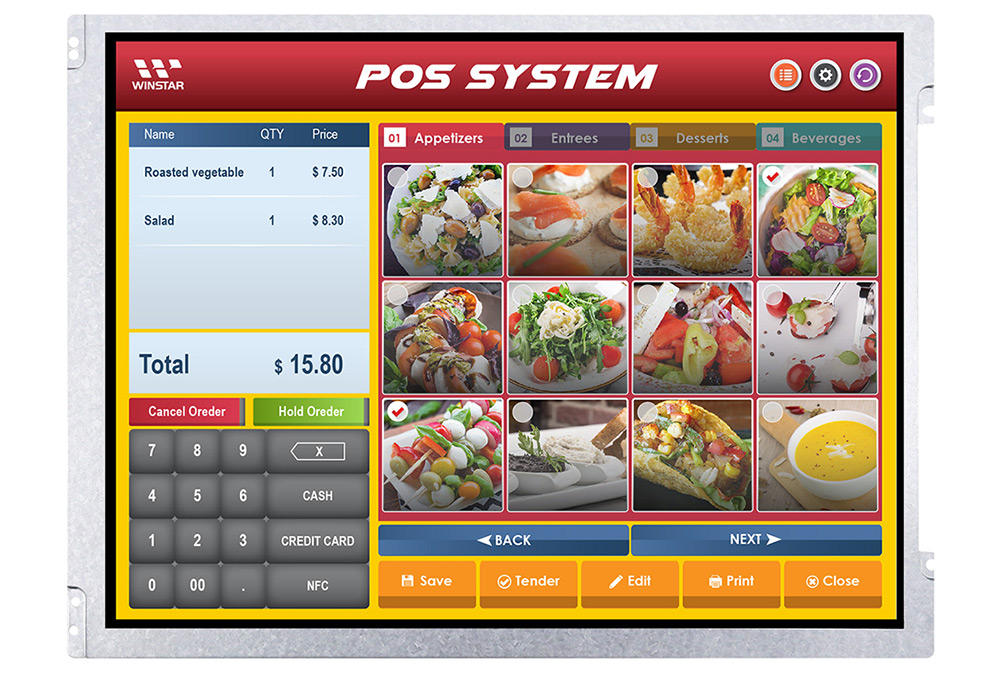

TFT 10.4" 1024x768 LCD Panel, Interface LVDS, 350cd/m², No touch

DESCRIPTION

10.4 inch full TFT-LCD display with XGA resolution (1024 horizontal by 768 vertical pixels array). This module is composed of a TFT-LCD panel, a timing controller, voltage reference, common voltage, column driver, and row driver circuit. This model supports LVDS interface; the supply voltage (VCC) of driving LCD panel is from is 3.0V to 3.6V.

It is a TN-LCD type TFT which gray scale inversion direction is 6 o'clock. with brightness 350 cd/m2 (typical value). Operating temperature from -20℃ to +70℃; storage temperature range from -30℃ to +80℃.

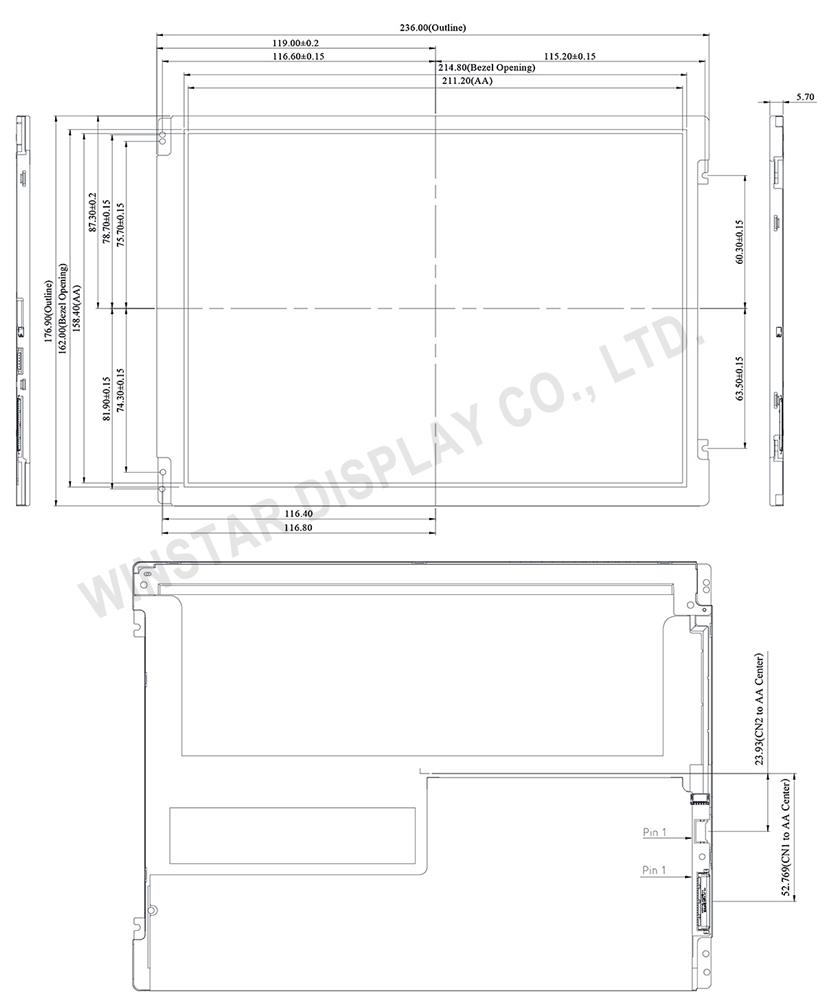

DRAWING

10.4 TFT LCD, 10.4 TFT Display, 10.4 inch LCD Display - Winstar Display

SPECIFICATIONS

Interface

Signal Connector Type

Item	Description
Type / Part Number	MSB24013P20HA (Manufacture by STM)
Mating Receptacle / Type (Reference)	P24013P20 or compatible

Signal Connector Pin Assignment

Pin No.	Symbol	Function
1	VDD	Power Supply, 3.3V (typical)
2	VDD	Power Supply, 3.3V (typical)
3	VSS	Ground
4	REV	Reverse Scan selection {High:2.5(min), 3.3(typ),3.6(max); Low: 0.5(max)}
5	Rin1-	-LVDS differential data input (R0-R5,G0)
6	Rin1+	+LVDS differential data input (R0-R5,G0)
7	VSS	Ground
8	Rin2-	-LVDS differential data input (G1-G5,B0-B1)
9	Rin2+	+LVDS differential data input (G1-G5,B0-B1)
10	VSS	Ground
11	Rin3-	-LVDS differential data input (B2-B5,HS,VS,DE)
12	Rin3+	+LVDS differential data input (B2-B5,HS,VS,DE)
13	VSS	Ground
14	CIkIN-	-LVDS differential clock input
15	CIkIN+	+LVDS differential clock input
16	GND	Ground
17	Rin4-	-LVDS differential data input (R6-R7,G6-G7,B6-B7)
18	Rin4+	+VDS differential data input (R6-R7,G6-G7,B6-B7)
19	SEL68	6/8 bits LVDS data input selection(H:8bits L/NC:6bits)
20	Bist	Internal use

General Specifications

Item	Dimension	Unit
Size	10.4	inch
Dot Matrix	1024×R.G.B.×768	dots
Module dimension	236.0×176.9×5.7	mm
Active area	211.2×158.4	mm
Dot pitch	0.20625×0.20625	mm
LCD type	TFT, Normally White, Transmissive
Gray scale inversion direction	6 o'clock
Backlight Type	LED, Normally White
Interface	LVDS
Touch Panel	Without Touch Panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item		Symbol	Min	Typ	Max	Units
LCD Drive Voltage (Logic)		VDD	3.0	3.3	3.6	V
VDD Current	Black Pattern	IDD	-	TBD	(0.25)	A
VDD Power Consumption	Black Pattern	PDD	-	-	(0.84)	W
Rush Current		Irush	-	-	1.5	A
Allowable Logic/LCD Drive Ripple Voltage		VDDrp	-	-	(200)	mV

SKU: WF104-1024768FL#000-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€231.50

€220.20

€188.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€231.50 excl tax
