WF70-800480A9D#0SPW3-FC

Picture of WF70-800480A9D#0SPW3-FC Picture of WF70-800480A9D#0SPW3-FC
TFT 7" 800x480 LCD Panel, Interface RGB (50pin), High Brightness 800cd/m², Wide view angle (IPS) Square pixels, Super extended Temperature, Capacitive touch panel I2C interface (GG, ILI2130 IC)

DESCRIPTION

WF70-800480A9D#0SPW3-FC is a 7 inch IPS TFT-LCD with a Projected Capacitive Touch Panel (PCAP). The module is built in with HX8249-A + HX8678-C IC Driver IC, supporting 24-bit RGB interfaces. WF70-800480A9D#0SPW3-FC features the IPS technology to present wider viewing angles of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical value). Its surface adopts a glare-glass with a 15:9 aspect ratio. Its PCAP touch panel comes with ILI2130 IC, supporting I2C interfaces.

The supply voltage (VCC) range of WF70-800480A9D#0SPW3-FC is from 2.7V to 3.6V; the typical value is 3.3V. It has features of high brightness and a wide operating temperature range. It boasts a resolution of 800x480 pixels, a high contrast ratio of 1,000:1 (typical value), and a high brightness of 800 nits (typical value). It can operate at the temperature range from -30℃ to +80℃, and its storage temperature covers from -40℃ to +85℃. It's perfect for outdoor measuring equipment, industrial measuring equipment, testing equipment, measuring tools, plastic bottle recycling machine, automated car park payment machine, etc.



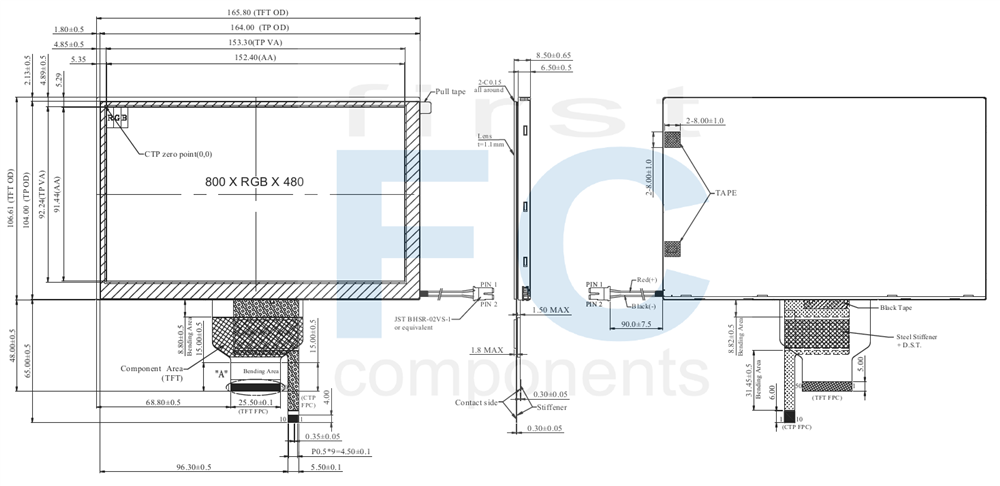

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1-4 NC No connection
5 GND Power Ground
6 NC No connection
7 VCC Power voltage
8 MODE Input timing mode selection.
MODEFunctionNote
0 DE only -
1 HS+VS Default
9 DE Data enable signal for TTL mode.
10 VS Vertical sync input
11 HS Horizontal sync input
12 B7 Blue data(MSB)
13 B6 Blue data
14 B5 Blue data
15 B4 Blue data
16 B3 Blue data
17 B2 Blue data
18 B1 Blue data
19 B0 Blue data(LSB)
20 G7 Green data(MSB)
21 G6 Green data
22 G5 Green data
23 G4 Green data
24 G3 Green data
25 G2 Green data
26 G1 Green data
27 G0 Green data(LSB)
28 R7 Red data(MSB)
29 R6 Red data
30 R5 Red data
31 R4 Red data
32 R3 Red data
33 R2 Red data
34 R1 Red data
35 R0 Red data (LSB)
36 GND Power Ground
37 DCLK Sample clock
38 GND Power Ground
39 L/R Horizontal shift direction (source output) selection.
L/RSource output sequence and data orderNote
1 Left to right Default
0 Right to left -
40 U/D Vertical shift direction (gate output) selection.
U/DFunctionNote
1 Top→bottom Default
0 Bottom→top -
41 NC No connection
42 NC No connection
43 NC No connection
44 RESET Reset pin. The chip is in reset state when RESETB=0.
45 NC No connection
46 NC No connection
47 DITHB STBYB Standby mode setting pin. The chip is in standby mode when STBYB=0.
48 GND Power Ground
49 NC No connection
50 NC No connection



Backlight PIN Definition

PinSymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- Black, LED_ Cathode



PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 x RGB x 480(TFT) dots
Module dimension 165.8 (W) x 106.61 (H) x 8.5(D) mm
Active Area(AA) 152.40 x 91.44 mm
Pixel pitch 0.1905 x 0.1905 mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
TFT Interface 24-bit RGB
TFT Driver IC HX8249-A + HX8678-C or Equivalent
Aspect Ratio 15:9
Backlight Type LED, Normally White
PCAP IC ILI 2130 or Equivalent
PCAP Interface I2C
PCAP FW Version 0x07.0x00. 0x00. 0x00. 0x00. 0x07. 0x68. 0xA1
PCAP Resolution 16384*16384
Touch Panel Projected capacitive touch panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -40 － +85 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage Vcc 2.7 3.3 3.6 V
Current of power supply Icc － 101 150 mA
Supply PCAP VDDT 3.1 3.3 3.5 V
IVDDT － 62 93 mA


LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current - - 450 - mA
LED voltage VLED+ 8.1 9.3 10.2 V
LED Life Time - 40000 - - Hr

SKU: WF70-800480A9D#0SPW3-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€95.40
€85.80
€71.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€95.40 excl tax

DESCRIPTION

WF70-800480A9D#0SPW3-FC is a 7 inch IPS TFT-LCD with a Projected Capacitive Touch Panel (PCAP). The module is built in with HX8249-A + HX8678-C IC Driver IC, supporting 24-bit RGB interfaces. WF70-800480A9D#0SPW3-FC features the IPS technology to present wider viewing angles of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical value). Its surface adopts a glare-glass with a 15:9 aspect ratio. Its PCAP touch panel comes with ILI2130 IC, supporting I2C interfaces.

The supply voltage (VCC) range of WF70-800480A9D#0SPW3-FC is from 2.7V to 3.6V; the typical value is 3.3V. It has features of high brightness and a wide operating temperature range. It boasts a resolution of 800x480 pixels, a high contrast ratio of 1,000:1 (typical value), and a high brightness of 800 nits (typical value). It can operate at the temperature range from -30℃ to +80℃, and its storage temperature covers from -40℃ to +85℃. It's perfect for outdoor measuring equipment, industrial measuring equipment, testing equipment, measuring tools, plastic bottle recycling machine, automated car park payment machine, etc.



DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1-4 NC No connection
5 GND Power Ground
6 NC No connection
7 VCC Power voltage
8 MODE Input timing mode selection.
MODEFunctionNote
0 DE only -
1 HS+VS Default
9 DE Data enable signal for TTL mode.
10 VS Vertical sync input
11 HS Horizontal sync input
12 B7 Blue data(MSB)
13 B6 Blue data
14 B5 Blue data
15 B4 Blue data
16 B3 Blue data
17 B2 Blue data
18 B1 Blue data
19 B0 Blue data(LSB)
20 G7 Green data(MSB)
21 G6 Green data
22 G5 Green data
23 G4 Green data
24 G3 Green data
25 G2 Green data
26 G1 Green data
27 G0 Green data(LSB)
28 R7 Red data(MSB)
29 R6 Red data
30 R5 Red data
31 R4 Red data
32 R3 Red data
33 R2 Red data
34 R1 Red data
35 R0 Red data (LSB)
36 GND Power Ground
37 DCLK Sample clock
38 GND Power Ground
39 L/R Horizontal shift direction (source output) selection.
L/RSource output sequence and data orderNote
1 Left to right Default
0 Right to left -
40 U/D Vertical shift direction (gate output) selection.
U/DFunctionNote
1 Top→bottom Default
0 Bottom→top -
41 NC No connection
42 NC No connection
43 NC No connection
44 RESET Reset pin. The chip is in reset state when RESETB=0.
45 NC No connection
46 NC No connection
47 DITHB STBYB Standby mode setting pin. The chip is in standby mode when STBYB=0.
48 GND Power Ground
49 NC No connection
50 NC No connection



Backlight PIN Definition

PinSymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- Black, LED_ Cathode



PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 x RGB x 480(TFT) dots
Module dimension 165.8 (W) x 106.61 (H) x 8.5(D) mm
Active Area(AA) 152.40 x 91.44 mm
Pixel pitch 0.1905 x 0.1905 mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
TFT Interface 24-bit RGB
TFT Driver IC HX8249-A + HX8678-C or Equivalent
Aspect Ratio 15:9
Backlight Type LED, Normally White
PCAP IC ILI 2130 or Equivalent
PCAP Interface I2C
PCAP FW Version 0x07.0x00. 0x00. 0x00. 0x00. 0x07. 0x68. 0xA1
PCAP Resolution 16384*16384
Touch Panel Projected capacitive touch panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -40 － +85 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage Vcc 2.7 3.3 3.6 V
Current of power supply Icc － 101 150 mA
Supply PCAP VDDT 3.1 3.3 3.5 V
IVDDT － 62 93 mA


LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current - - 450 - mA
LED voltage VLED+ 8.1 9.3 10.2 V
LED Life Time - 40000 - - Hr

Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.45
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.45
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Preferred
