TFT 12.1" 1024x768 LCD Module, Interface LVDS, 600cd/m², Wide View Angle (IPS), Super extended Temperature, No touch

DESCRIPTION



12.1 inch Wide Temperature TFT LCD with IPS great angle-visibility. This 12.1” IPS LCD TFT display is featured with resolution 1024x4768 pixels. it supports LVDS interface, with brightness 600 nits (typical value), aspect ratio 4:3, anti-glare surface panel.

This 12.1 inch 1024x768 TFT LCD display is an IPS (In-Plane Switching) Panel which has the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical). Operating temperatures from -30℃ to +85℃; storage temperature from -40℃ to +90℃.

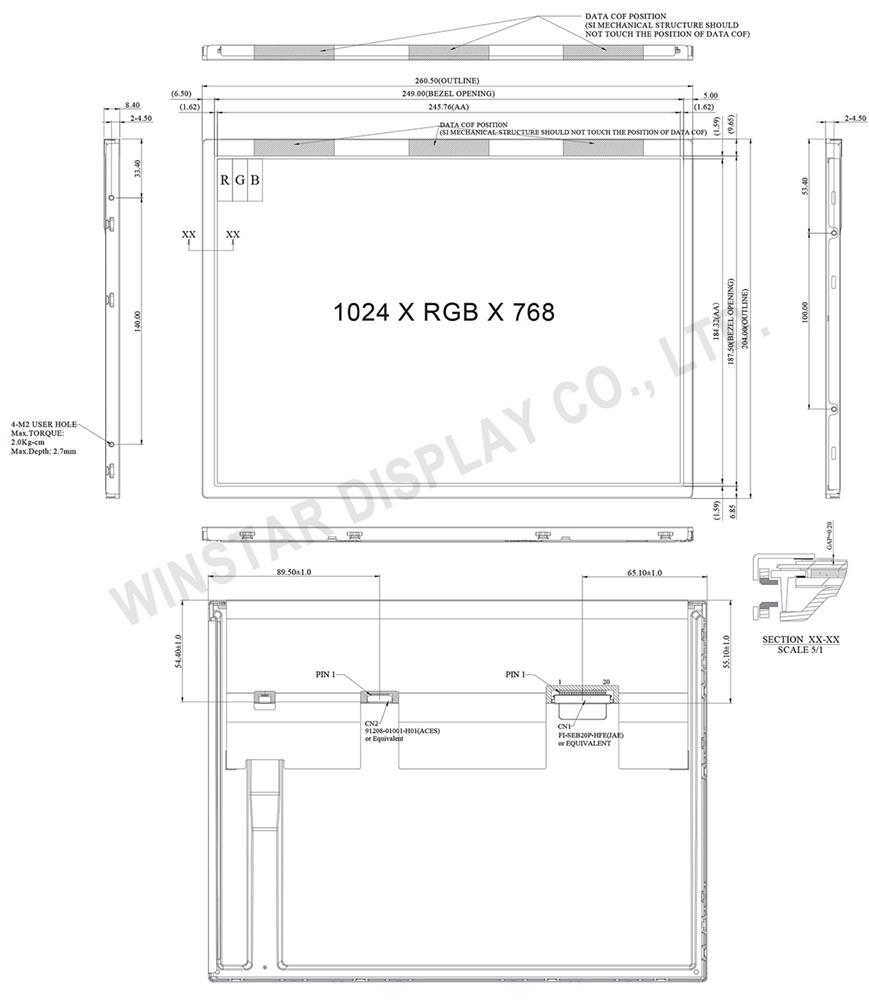

DRAWING





SPECIFICATIONS



Interface Pin Function

TFT LCD Module

PinNameDescription
1 RX3+ Differential Data Input, CH3 ( Positive )
2 RX3- Differential Data Input, CH3 (Negative )
3 NC NC
4 SEL68 LVDS 6/8 bit select function control,
Low or NC 6 bit Input Mode
High 8 bit Input Mode
5 GND Ground
6 RXC+ Differential Clock Input ( Positive )
7 RXC- Differential Clock Input ( Negative )
8 GND Ground
9 RX2+ Differential Data Input , CH2 ( Positive )
10 RX2- Differential Data Input , CH2 ( Negative )
11 GND Ground
12 RX1+ Differential Data Input , CH1 ( Positive )
13 RX1- Differential Data Input, CH1 ( Negative )
14 GND Ground
15 RX0+ Differential Data Input, CH0 ( Positive )
16 RX0- Differential Data Input, CH0 (Negative )
17 reLR Horizontal Reverse Scan Control,
Low or NC Normal Mode.
High Horizontal Reverse Scan
18 reUD Vertical Reverse Scan Control,
Low or NC Normal Mode, High Vertical Reverse Scan
19 VCC Power supply
20 VCC Power supply




Backlight Unit (Converter connector pin)

PinSymbolDescription
1 Vi Converter input voltage
2 Vi Converter input voltage
3 Vi Converter input voltage
4 Vi Converter input voltage
5 VGND Converter ground
6 VGND Converter ground
7 VGND Converter ground
8 VGND Converter ground
9 EN Enable pin
10 ADJ Backlight Adjust



General Specifications

ItemDimensionUnit
Size 12.1 inch
Pixel Number 1024 × R.G.B. × 768 pixel
Module dimension 260.5 × 204.0 × 8.4 mm
Bezel Opening Area 249.0 × 187.5  mm
Active Area 245.76 (H) × 184.32 (V) mm
Pixel Pitch 0.240(H) × 0.240(V) mm
LCD type TFT, Normally black, Transmissive
View Direction Wide View
Aspect Ratio 4:3
TFT Driver IC --
TFT Interface 1ch-LVDS
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -40 － +90 ℃



Electrical Characteristics

TFT LCD Module

ParameterSymbolValueUnit
MinTypMax
Power Supply Voltage VCC 3.0 3.3 3.6 V
Rush Current IRUSH - - 4 A
Power Supply Current White   - - 370 450 mA
Black - 300 380 mA
Power Consumption PL - 1.22 1.49 W
LVDS differential input voltage |VID| 100 - 600 mV
LVDS common input voltage VICM 0.7 - 1.6 V


SKU: WF121-1024768EL#0PW0-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€162.80
€154.80
€129.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€162.80 excl tax

DESCRIPTION



12.1 inch Wide Temperature TFT LCD with IPS great angle-visibility. This 12.1” IPS LCD TFT display is featured with resolution 1024x4768 pixels. it supports LVDS interface, with brightness 600 nits (typical value), aspect ratio 4:3, anti-glare surface panel.

This 12.1 inch 1024x768 TFT LCD display is an IPS (In-Plane Switching) Panel which has the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical). Operating temperatures from -30℃ to +85℃; storage temperature from -40℃ to +90℃.



DRAWING





SPECIFICATIONS



Interface Pin Function

TFT LCD Module

PinNameDescription
1 RX3+ Differential Data Input, CH3 ( Positive )
2 RX3- Differential Data Input, CH3 (Negative )
3 NC NC
4 SEL68 LVDS 6/8 bit select function control,
Low or NC 6 bit Input Mode
High 8 bit Input Mode
5 GND Ground
6 RXC+ Differential Clock Input ( Positive )
7 RXC- Differential Clock Input ( Negative )
8 GND Ground
9 RX2+ Differential Data Input , CH2 ( Positive )
10 RX2- Differential Data Input , CH2 ( Negative )
11 GND Ground
12 RX1+ Differential Data Input , CH1 ( Positive )
13 RX1- Differential Data Input, CH1 ( Negative )
14 GND Ground
15 RX0+ Differential Data Input, CH0 ( Positive )
16 RX0- Differential Data Input, CH0 (Negative )
17 reLR Horizontal Reverse Scan Control,
Low or NC Normal Mode.
High Horizontal Reverse Scan
18 reUD Vertical Reverse Scan Control,
Low or NC Normal Mode, High Vertical Reverse Scan
19 VCC Power supply
20 VCC Power supply




Backlight Unit (Converter connector pin)

PinSymbolDescription
1 Vi Converter input voltage
2 Vi Converter input voltage
3 Vi Converter input voltage
4 Vi Converter input voltage
5 VGND Converter ground
6 VGND Converter ground
7 VGND Converter ground
8 VGND Converter ground
9 EN Enable pin
10 ADJ Backlight Adjust



General Specifications

ItemDimensionUnit
Size 12.1 inch
Pixel Number 1024 × R.G.B. × 768 pixel
Module dimension 260.5 × 204.0 × 8.4 mm
Bezel Opening Area 249.0 × 187.5  mm
Active Area 245.76 (H) × 184.32 (V) mm
Pixel Pitch 0.240(H) × 0.240(V) mm
LCD type TFT, Normally black, Transmissive
View Direction Wide View
Aspect Ratio 4:3
TFT Driver IC --
TFT Interface 1ch-LVDS
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -40 － +90 ℃



Electrical Characteristics

TFT LCD Module

ParameterSymbolValueUnit
MinTypMax
Power Supply Voltage VCC 3.0 3.3 3.6 V
Rush Current IRUSH - - 4 A
Power Supply Current White   - - 370 450 mA
Black - 300 380 mA
Power Consumption PL - 1.22 1.49 W
LVDS differential input voltage |VID| 100 - 600 mV
LVDS common input voltage VICM 0.7 - 1.6 V
