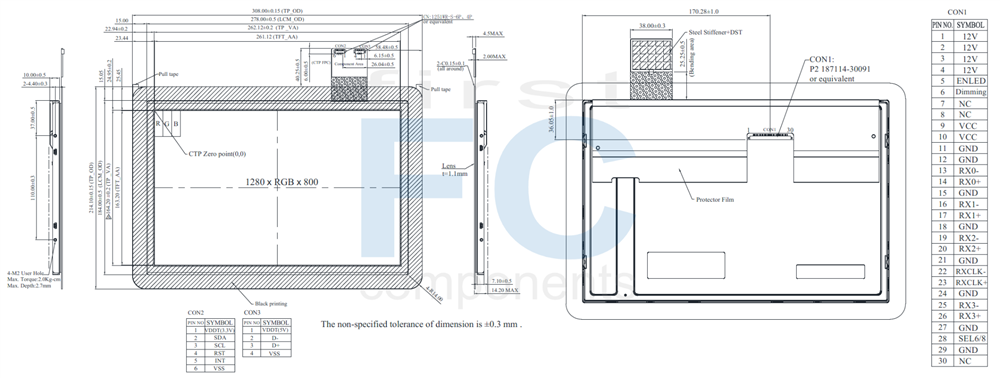

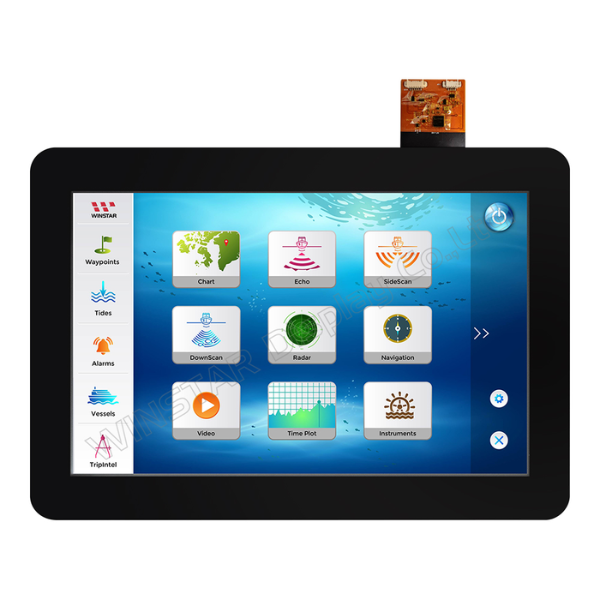

WF121-1280800BL#A08-FC is a 12.1-inch color TFT LCD module boasting a resolution of 1280x800 dots and a projected capacitive touch panel (PCAP). Featuring a built-in ILI2132 IC, its PCAP touch panel supports 10-point touch functionality.

This TFT display is equipped with the EK77526AHI205A driver IC, designed to support LVDS Interfaces. LVDS interface technology is gaining popularity for TFT displays requiring high-speed data transmission. Offering high data transmission rates with low power consumption, LVDS interface boast advantages such as compatibility with lower voltage power supplies, noise reduction, enhanced noise suppression ability, and reliable signal transmission.

WF121-1280800BL#A08-FC utilizes IPS technology to deliver wider viewing angles, offering typical values of 89 degrees in all directions (left, right, up, and down), with an aspect ratio of 16:9. It features a contrast ratio of 1,000:1 (typical value) and a brightness of 300 nits (typical value).

The power supply voltage for the LCD module ranges from 3.0 V to 3.6 V, with a typical value of 3.3 V. Operating temperatures span from -20 °C to +70 °C, while the storage temperature range extends from -20 °C to +70 °C.

With its specifications, the 12.1-inch color TFT LCD display is highly suitable for various applications, including medical equipment, fishfinders, industrial monitoring devices, home security systems, and more.
