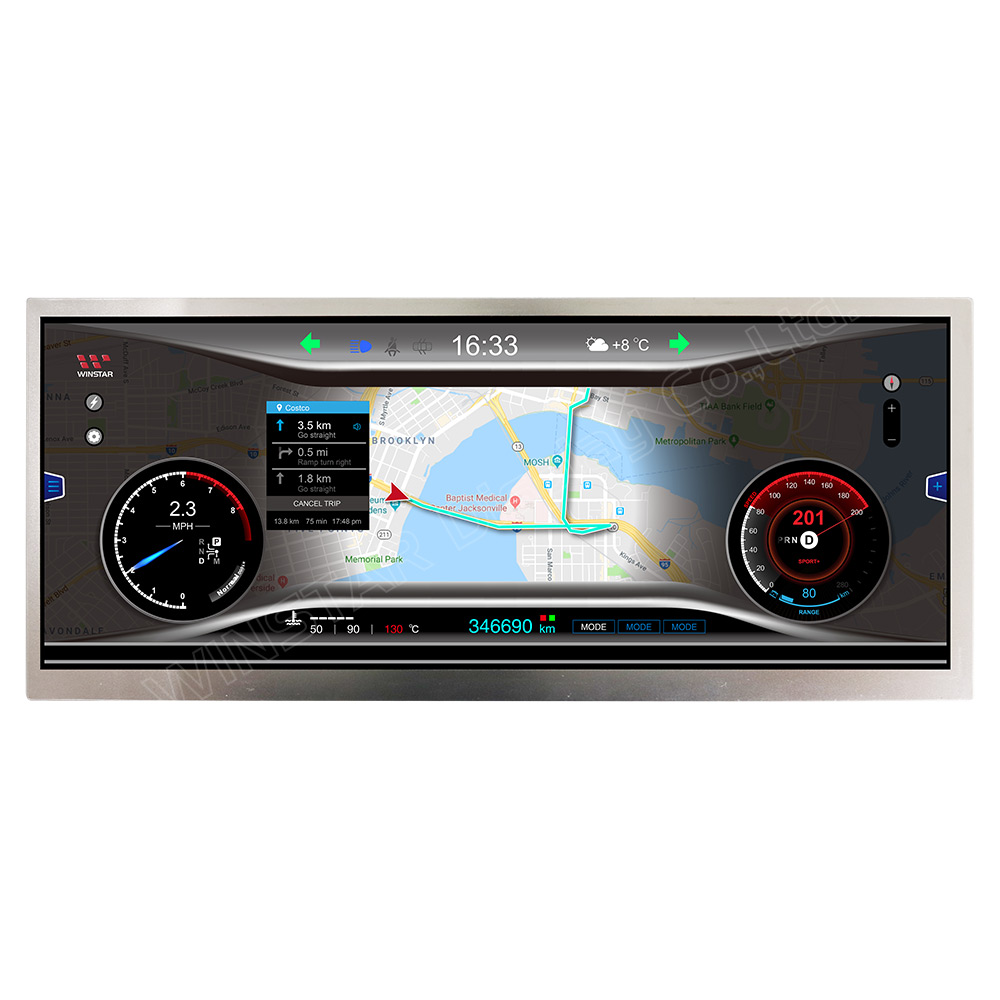

WF123-1920720BL#0SPW0-FC

TFT 12.3'' 1920x720, Bar Type, Interface LVDS (50 pins), High Brightness 850cd/m², Wide View Angle (IPS), Super extended Temperature, No touch (Customized CTP option)

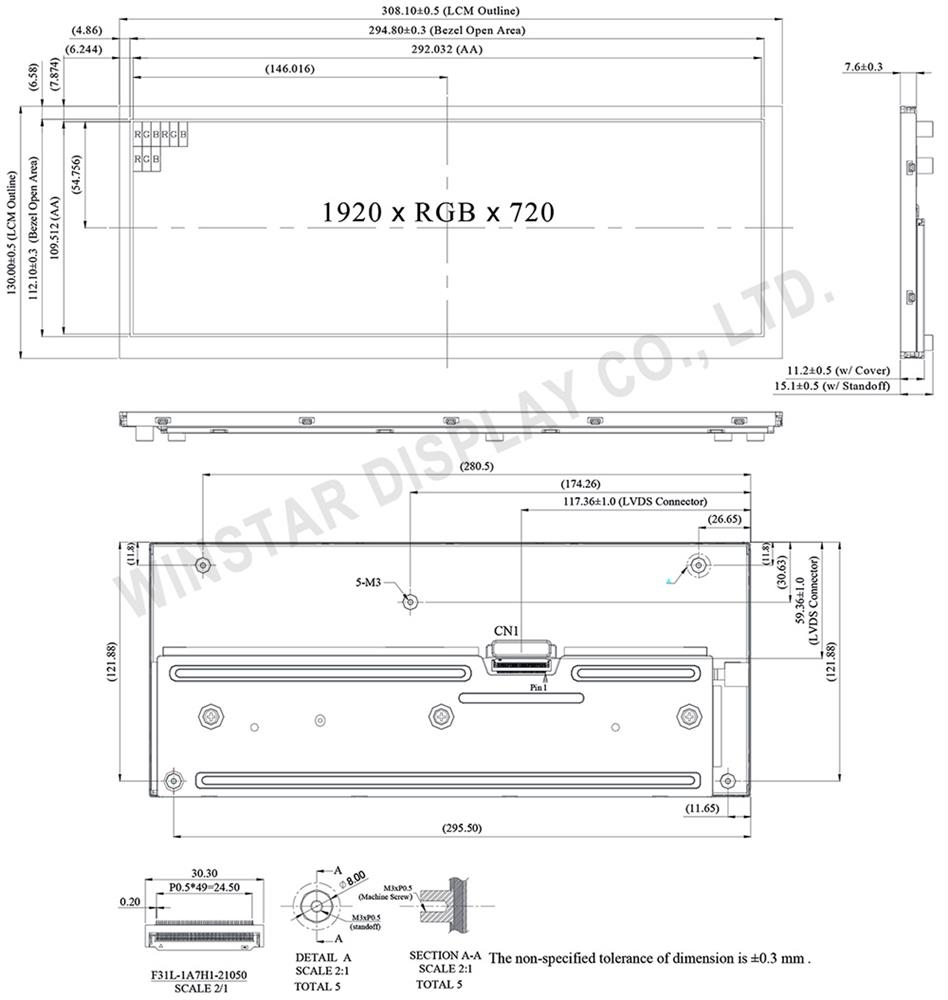

DRAWING



12.3 inch IPS Bar Type TFT Display - WF123BSWAYLNN0 - Winstar

SPECIFICATIONS



Interface

TFT LCD MODULE

FPC connector is used for electronics interface.
AORORA F31L-1A7H1-21050 , 50PIN
Pin no.SymbolFunction
1 GND Ground
2 NC No connector
3 VCC Digital Power
4 VCC Digital Power
5 GND Panel Power
6 GND Panel Power
7 NC No connector
8 NC No connector
9 GND Ground
10 ORXIN0- Odd pixel negative LVDS differential clock input
11 ORXIN0+ Odd pixel positive LVDS differential clock input
12 ORXIN1- Odd pixel negative LVDS differential clock input
13 ORXIN1+ Odd pixel positive LVDS differential clock input
14 ORXIN2- Odd pixel negative LVDS differential clock input
15 ORXIN2+ Odd pixel positive LVDS differential clock input
16 ORXCLKIN- Odd pixel negative LVDS differential clock input
17 ORXCLKIN+ Odd pixel positive LVDS differential clock input
18 ORXIN3- Odd pixel negative LVDS differential clock input
19 ORXIN3+ Odd pixel positive LVDS differential clock input
20 ERXIN0- Even pixel negative LVDS differential clock input
21 ERXIN0+ Even pixel positive LVDS differential clock input
22 ERXIN1- Even pixel negative LVDS differential clock input
23 ERXIN1+ Even pixel positive LVDS differential clock input
24 ERXIN2- Even pixel negative LVDS differential clock input
25 ERXIN2+ Even pixel positive LVDS differential clock input
26 ERXCLKIN- Even pixel negative LVDS differential clock input
27 ERXCLKIN+ Even pixel positive LVDS differential clock input
28 ERXIN3- Even pixel negative LVDS differential clock input
29 ERXIN3+ Even pixel positive LVDS differential clock input
30 GND Ground
31 NC No connector
32 RESETB Global reset pin, active low.
33 STBYB Standby mode, active low.
34 CA3 Output signal to indicate self protection mode, when DE,HS,VS,DCLK, any of these signals is missing, it will become High. If using this pin, CA3 need to pulled low by an resistor,else , let it floating.
35 SCL Serial interface clock input. (User folating)
36 SDA Serial interface data input/output.(User folating)
37 CSB Serial interface chip enable.(User folating)
38 GND Power Ground
39 GND Power Ground
40 NC No connector
41 LEDA LED power (Anode)
42 LEDA LED power (Anode)
43 LEDA LED power (Anode)
44 NC No connector
45 LEDK1 Cathode 1
46 LEDK2 Cathode 2
47 LEDK3 Cathode 3
48 LEDK4 Cathode 4
49 NTC_A NTC_Anode
50 NTC_K NTC_Cathode



General Specifications

ItemDimensionUnit
Size 12.3 inch
Pixel Number 1920 RGB (H) × 720(V) pixel
Module dimension 308.1(H) ×130.0(V) × 7.6 mm
Active Area 292.032(H) × 109.512(V) mm
Pixel Pitch 0.1521(H) × 0.1521 (V) mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
Backlight Type LED, Normally White
TFT Interface 2ch-LVDS
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +85
Storage Temperature TST -40 +90



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage VCC 3 3.3 3.6 V
Input signal voltage ViH VCC *0.7 - VCC V
ViL 0 - VCC *0.3 V
Current of power supply ICC -- -- 500 mA
SKU: WF123-1920720BL#0SPW0-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€165.60
€162.90
€150.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€165.60 excl tax

DRAWING



12.3 inch IPS Bar Type TFT Display - WF123BSWAYLNN0 - Winstar

SPECIFICATIONS



Interface

TFT LCD MODULE

FPC connector is used for electronics interface.
AORORA F31L-1A7H1-21050 , 50PIN
Pin no.SymbolFunction
1 GND Ground
2 NC No connector
3 VCC Digital Power
4 VCC Digital Power
5 GND Panel Power
6 GND Panel Power
7 NC No connector
8 NC No connector
9 GND Ground
10 ORXIN0- Odd pixel negative LVDS differential clock input
11 ORXIN0+ Odd pixel positive LVDS differential clock input
12 ORXIN1- Odd pixel negative LVDS differential clock input
13 ORXIN1+ Odd pixel positive LVDS differential clock input
14 ORXIN2- Odd pixel negative LVDS differential clock input
15 ORXIN2+ Odd pixel positive LVDS differential clock input
16 ORXCLKIN- Odd pixel negative LVDS differential clock input
17 ORXCLKIN+ Odd pixel positive LVDS differential clock input
18 ORXIN3- Odd pixel negative LVDS differential clock input
19 ORXIN3+ Odd pixel positive LVDS differential clock input
20 ERXIN0- Even pixel negative LVDS differential clock input
21 ERXIN0+ Even pixel positive LVDS differential clock input
22 ERXIN1- Even pixel negative LVDS differential clock input
23 ERXIN1+ Even pixel positive LVDS differential clock input
24 ERXIN2- Even pixel negative LVDS differential clock input
25 ERXIN2+ Even pixel positive LVDS differential clock input
26 ERXCLKIN- Even pixel negative LVDS differential clock input
27 ERXCLKIN+ Even pixel positive LVDS differential clock input
28 ERXIN3- Even pixel negative LVDS differential clock input
29 ERXIN3+ Even pixel positive LVDS differential clock input
30 GND Ground
31 NC No connector
32 RESETB Global reset pin, active low.
33 STBYB Standby mode, active low.
34 CA3 Output signal to indicate self protection mode, when DE,HS,VS,DCLK, any of these signals is missing, it will become High. If using this pin, CA3 need to pulled low by an resistor,else , let it floating.
35 SCL Serial interface clock input. (User folating)
36 SDA Serial interface data input/output.(User folating)
37 CSB Serial interface chip enable.(User folating)
38 GND Power Ground
39 GND Power Ground
40 NC No connector
41 LEDA LED power (Anode)
42 LEDA LED power (Anode)
43 LEDA LED power (Anode)
44 NC No connector
45 LEDK1 Cathode 1
46 LEDK2 Cathode 2
47 LEDK3 Cathode 3
48 LEDK4 Cathode 4
49 NTC_A NTC_Anode
50 NTC_K NTC_Cathode



General Specifications

ItemDimensionUnit
Size 12.3 inch
Pixel Number 1920 RGB (H) × 720(V) pixel
Module dimension 308.1(H) ×130.0(V) × 7.6 mm
Active Area 292.032(H) × 109.512(V) mm
Pixel Pitch 0.1521(H) × 0.1521 (V) mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
Backlight Type LED, Normally White
TFT Interface 2ch-LVDS
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +85
Storage Temperature TST -40 +90



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage VCC 3 3.3 3.6 V
Input signal voltage ViH VCC *0.7 - VCC V
ViL 0 - VCC *0.3 V
Current of power supply ICC -- -- 500 mA
Products specifications
Brand Winstar
Size 12.3"
Resolution 1920x720
Active Area (mm) 292.03x109.51
Color Full Color
Interface LVDS
Built-in Controller No
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~85
Display Connection ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
