WF123-1920720BL#0SPW8-FC

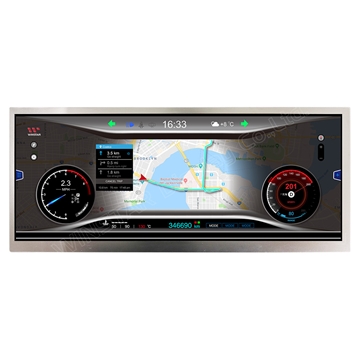

TFT 12.3'' 1920x720, Bar Type, Interface LVDS (50 pins), High Brightness 650cd/m², Wide View Angle (IPS), Super extended Temperature, Capacitive free board (USB/I2C)

DESCRIPTION

12.3 inch High Brightness 1920 x 720 IPS TFT-LCD module with projected capacitive touch panel (PCAP). This module supports 2-ch LVDS（Low-Voltage-Differential-Signaling）interface which becomes more popular for larger size of TFT LCD display. The LVDS interface is a great solution because of its high speed of data transmission while using low voltage and improved noise performance. The LVDS interface has several benefits for TFT displays. It is much less susceptible to EMI and crosstalk issues, and peripherals in need of high bandwidth, like high-definition graphics and fast frame rates, allowing the transmitting device to be located farther from the display. As to the capacitive touch panel of this module is built-in with ILI2511 IC which can communicate via USB or I2C interface, supports 10 detect points.

It is adopted IPS panel which is having the advantage of wider view angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical value), contrast ratio 1100:1 (typical value), brightness 650 nits (typical value), glare surface panel. The supply voltage (VCC) is from 3V to 3.6V, typical value 3.3V. It can be operated at wide temperatures from -30℃ to +85℃ and storage temperatures from -40℃ to +85℃. If customers require wider storage temperatures up to -40℃ to +90℃, you can contact us. Please note, the thickness of these two modules is a little different 10.48mm vs 10.7mm.

DRAWING

SPECIFICATIONS

Interface

TFT LCD Module

FPC connector is used for electronics interface.
AORORA F31L-1A7H1-21050 , 50PIN

Pin no.	Symbol	Function
1	GND	Ground
2	NC	No connector
3	VCC	Digital Power
4	VCC	Digital Power
5	GND	Panel Power
6	GND	Panel Power
7	NC	No connector
8	NC	No connector
9	GND	Ground
10	ORXIN0-	Odd pixel negative LVDS differential clock input
11	ORXIN0+	Odd pixel positive LVDS differential clock input
12	ORXIN1-	Odd pixel negative LVDS differential clock input
13	ORXIN1+	Odd pixel positive LVDS differential clock input
14	ORXIN2-	Odd pixel negative LVDS differential clock input
15	ORXIN2+	Odd pixel positive LVDS differential clock input
16	ORXCLKIN-	Odd pixel negative LVDS differential clock input
17	ORXCLKIN+	Odd pixel positive LVDS differential clock input
18	ORXIN3-	Odd pixel negative LVDS differential clock input
19	ORXIN3+	Odd pixel positive LVDS differential clock input
20	ERXIN0-	Even pixel negative LVDS differential clock input
21	ERXIN0+	Even pixel positive LVDS differential clock input
22	ERXIN1-	Even pixel negative LVDS differential clock input
23	ERXIN1+	Even pixel positive LVDS differential clock input
24	ERXIN2-	Even pixel negative LVDS differential clock input
25	ERXIN2+	Even pixel positive LVDS differential clock input
26	ERXCLKIN-	Even pixel negative LVDS differential clock input
27	ERXCLKIN+	Even pixel positive LVDS differential clock input
28	ERXIN3-	Even pixel negative LVDS differential clock input
29	ERXIN3+	Even pixel positive LVDS differential clock input
30	GND	Ground
31	NC	No connector
32	RESETB	Global reset pin, active low.
33	STBYB	Standby mode, active low.
34	CA3	Output signal to indicate self protection mode, when DE,HS,VS,DCLK, any of these signals is missing, it will become High. If using this pin, CA3 need to pulled low by an resistor,else , let it floating.
35	SCL	Serial interface clock input. (User folating)
36	SDA	Serial interface data input/output.(User folating)
37	CSB	Serial interface chip enable.(User folating)
38	GND	Power Ground
39	GND	Power Ground
40	NC	No connector
41	LEDA	LED power (Anode)
42	LEDA	LED power (Anode)
43	LEDA	LED power (Anode)
44	NC	No connector
45	LEDK1	Cathode 1
46	LEDK2	Cathode 2
47	LEDK3	Cathode 3
48	LEDK4	Cathode 4
49	NTC_A	NTC_Anode
50	NTC_K	NTC_Cathode

PCAP PIN Definition

Pin	Symbol	Function
1	USB_VSS	System ground
2	USB_VDD 5V	Power supply
3	USB_D+	Data +
4	USB_D-	Data -
5	VSS	System ground
6	SDA	I2C data input and output
7	SCL	I2C clock input
8	RST	External Reset, Low is active
9	INT	External interrupt to the host
10	VDDT 3.3	Power supply

General Specifications

Item	Dimension	Unit
Size	12.3	inch
Pixel Number	1920 RGB (H) × 720(V)	pixel
Module dimension	364.0(H) × 175.0 (V) × 10.48	mm
Active Area	292.032(H) × 109.512(V)	mm
Pixel Pitch	0.1521(H) × 0.1521 (V)	mm
LCD type	TFT, Normally Black, Transmissive
Viewing Angle	85/85/85/85
Backlight Type	LED ,Normally White
TFT Interface	2ch-LVDS
PCAP IC	ILI2511 or equivalent
PCAP Interface	USB (I2C available)
PCAP FW Version	V6.0.0.0.0.0.0.3
Touch Panel	Projected Capacitive Touch Screen, PCAP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+85	℃
Storage Temperature	TST	-40	－	+85	℃

Electrical Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Supply Voltage	VCC	3	3.3	3.6	V
Input signal voltage	ViH	VCC *0.7	-	VCC	V
Input signal voltage	ViL	0	-	VCC *0.3	V
Current of power supply	ICC	-	-	500	mA
Inrush current	IRUSH	-	-	2.0	A
Supply CTP(USB)	USB_VDD 5V	4.75	5.0	5.25	V
Supply CTP(USB)	I USB_VDD	-	90	135	mA
Supply CTP(I2C)	VDDT 3.3	3.15	3.3	3.45	V
Supply CTP(I2C)	IVDDT	-	90	135	mA
