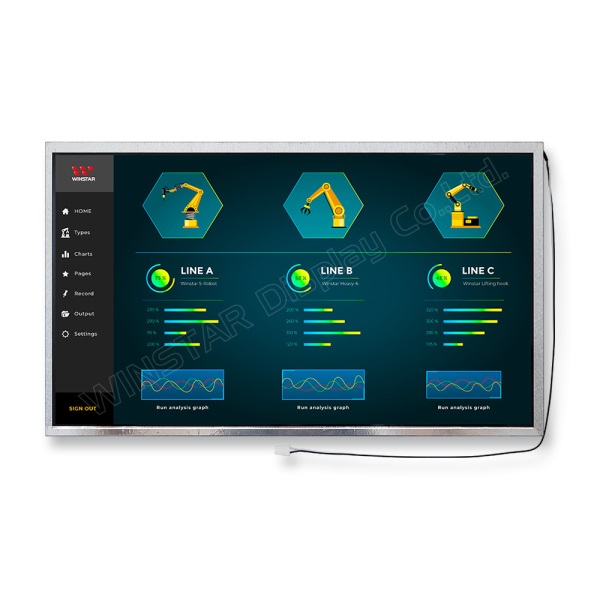

WF1560-19201080BD#0P0-FC is a 1920x1080 high-resolution eDP-interface TFT display with a 15.6-inch diagonal size. This 1920x1080 LCD module is built-in with TC2055G driver IC; it supports eDP interfaces and features a high contrast ratio of 1,500:1(typical value) and a brightness of 500 nits(typical value). Plus, it adopts IPS technology, presenting wider viewing angles of Left:80 / Right:80 / Up:80 / Down:80 degrees. The eDP (Embedded Display Port) interface has been widely used in laptops, tablets, mobile phones, and other fields integrating display panels and image processors. The eDP communication protocol has the characteristics of high bandwidth, good integration, and simple design of related products.

The module's power voltage range is from 3.0V to 3.6V (The typical value is 3.3V). The scope of the operating temperature is from -20°C to +70°C, while the storage temperature extends from -30°C to +80°C. This 15.6" 1920x1080 eDP display module is suited for various applications, including industrial control equipment, test equipment, and POS systems.
