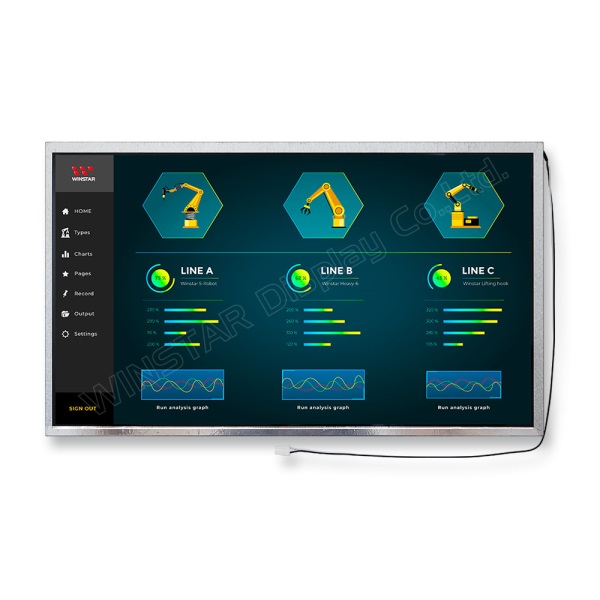

WF1560-19201080BD#0SP0-FC is a 15.6-inch TFT LCD with a high resolution of 1920x1080 pixels. This 15.6" display is built-in with TC2055G driver IC; it supports eDP interfaces and features a high contrast ratio of 1,500:1(typical value) and a high brightness of 1000 nits (typical value). Plus, it adopts IPS technology, presenting a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degrees. The eDP (Embedded Display Port) interface has been widely used in laptops, tablets, mobile phones, and other fields integrating display panels and image processors. The eDP communication protocol has the characteristics of high bandwidth, good integration, and simple design of related products.
The power voltage range of the module is from 3.0V to 3.6V (The typical value is 3.3V). The operating temperature ranges from -20°C to +70°C, while the storage temperature extends from -30°C to +80°C.
Key Features and Benefits
- Full HD Resolution: The 1920x1080 pixel resolution guarantees sharp and detailed images.
- Wide Viewing Angles: Thanks to IPS technology, the display offers consistent and accurate colors, even when viewed from different angles.
- High Brightness: Providing vivid and clear visuals even in brightly lit environments.
- eDP Interface: The eDP interface facilitates fast and reliable data transmission, ensuring a seamless user experience.
- Driver IC: The TC2055G driver IC enhances overall display performance and stability.
- Touchscreen: No touchscreen functionality - Ideal for applications where touch interaction is not required.
ApplicationsThis 15.6" eDP TFT LCD screen display module is well-suited for a wide range of applications, including but not limited to:
- Industrial control equipment
- Digital Signage
- Gaming Monitors
- Medical Imaging Devices
- Point-of-Sale (POS) Systems
- Outdoor measuring equipment
- Reverse vending machines (RVM)
Whether you need a high-resolution display for professional tasks or immersive visuals for entertainment, this 15.6-inch TFT display module offers a compelling solution. Its IPS technology, high brightness, and robust performance make it a valuable addition to various electronic devices and applications.
