WF28-240320ED#001-FC

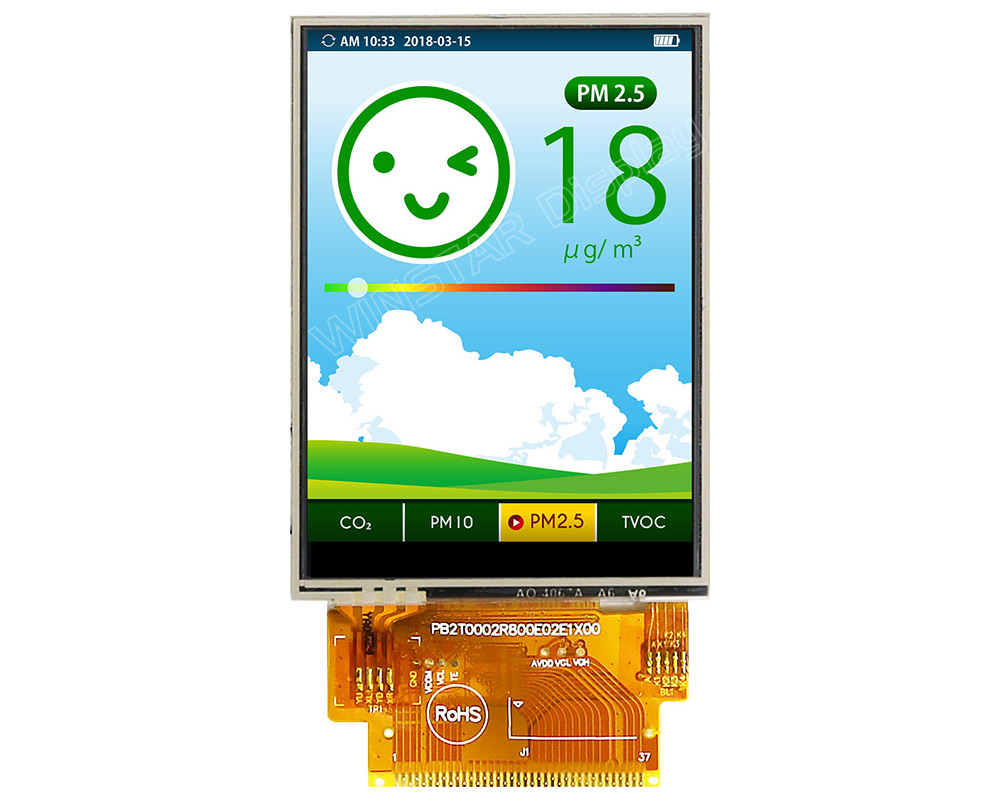

TFT 2.8" 240x320 Portrait LCD Panel, Interface MCU (Parallel) IC ILI9341, 350cd/m², Resistive touch panel

DESCRIPTION



TFT LCD module 2.8 inch diagonal size, 240xRGBx320, full color TFT LCD display. This module is built in with ILI9341V IC; it supports 8/ 16bit 8080-series Parallel MCU Interface. Module dimension of 50.0 x 69.2 mm and Active area size of 43.2 x 57.6 mm; it integrated ILI9341V controller on module, logic supply voltage range from 2.5V to 3.3V.

It is a portrait mode LCD module, if you would like to use it as landscape mode, please contact with us for more technical support.  This 2.8” TFT LCD module is featured with brightness up to 500 cd/m2(typical value). Operating at temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.   This 2.8" TFT LCD Module 6:00 o'clock viewing direction works well for devices that is easy to read above eye level without fading, such as signal analyzers or bench top laboratory equipment, handhold microscope and other handhold devices.

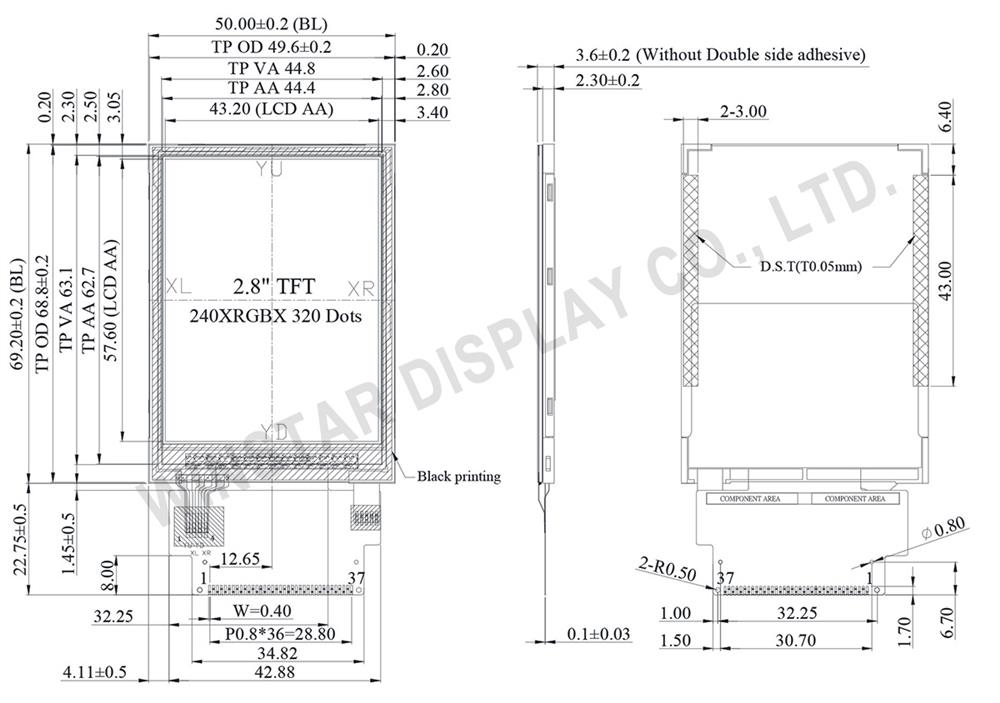

DRAWING

SPECIFICATIONS



Interface

NOSymbolFunctionI/O
1~4 DB8~DB11 Data bus I/O
5 GND Ground P
6 IOVCC power supply P
7 /CS Chip select signal. I
8 RS register select I
9 /WR Write data when WRX is Low. I
10 /RD Read strobe signal. Read out data when RDX is Low. I
11 GND Ground P
12 XL Left electrode -
13 YU Top electrode -
14 XR Right electrode -
15 YD Bottom electrode -
16 LEDA Anode of LED backlight. P
17~20 LEDK1~4 Cathode of LED backlight. P
21 IM0 IM0=0 8Bit DB8-15; IM0=1 16Bit DB0-DB15; P
22 DB12 Data bus I/O
23~30 DB0~DB7 Data bus I/O
31 /RESET System reset pin. I
32~33 VCI power supply P
34 GND Ground P
35~37 DB13~DB15 Data bus I/O



General Specifications

ItemDimensionUnit
Size 2.8 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 50.0(W) × 69.2(H) × 3.6(D) mm
Active area 43.2 × 57.6 mm
Dot pitch 0.06 × 0.18 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Portrait
Backlight Type LED, Normally White
Touch Panel Resistive Touch Screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VCI － 2.5   3.3 V
Supply Voltage For Logic IOVCC   1.65   3.3 V
Supply Current For LCM ICC － － 5 7.5 mA


SKU: WF28-240320ED#001-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€18.00
€13.20
€11.20
€10.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€18.00 excl tax

DESCRIPTION



TFT LCD module 2.8 inch diagonal size, 240xRGBx320, full color TFT LCD display. This module is built in with ILI9341V IC; it supports 8/ 16bit 8080-series Parallel MCU Interface. Module dimension of 50.0 x 69.2 mm and Active area size of 43.2 x 57.6 mm; it integrated ILI9341V controller on module, logic supply voltage range from 2.5V to 3.3V.

It is a portrait mode LCD module, if you would like to use it as landscape mode, please contact with us for more technical support.  This 2.8” TFT LCD module is featured with brightness up to 500 cd/m2(typical value). Operating at temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.   This 2.8" TFT LCD Module 6:00 o'clock viewing direction works well for devices that is easy to read above eye level without fading, such as signal analyzers or bench top laboratory equipment, handhold microscope and other handhold devices.


DRAWING

SPECIFICATIONS



Interface

NOSymbolFunctionI/O
1~4 DB8~DB11 Data bus I/O
5 GND Ground P
6 IOVCC power supply P
7 /CS Chip select signal. I
8 RS register select I
9 /WR Write data when WRX is Low. I
10 /RD Read strobe signal. Read out data when RDX is Low. I
11 GND Ground P
12 XL Left electrode -
13 YU Top electrode -
14 XR Right electrode -
15 YD Bottom electrode -
16 LEDA Anode of LED backlight. P
17~20 LEDK1~4 Cathode of LED backlight. P
21 IM0 IM0=0 8Bit DB8-15; IM0=1 16Bit DB0-DB15; P
22 DB12 Data bus I/O
23~30 DB0~DB7 Data bus I/O
31 /RESET System reset pin. I
32~33 VCI power supply P
34 GND Ground P
35~37 DB13~DB15 Data bus I/O



General Specifications

ItemDimensionUnit
Size 2.8 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 50.0(W) × 69.2(H) × 3.6(D) mm
Active area 43.2 × 57.6 mm
Dot pitch 0.06 × 0.18 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Portrait
Backlight Type LED, Normally White
Touch Panel Resistive Touch Screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VCI － 2.5   3.3 V
Supply Voltage For Logic IOVCC   1.65   3.3 V
Supply Current For LCM ICC － － 5 7.5 mA


Products specifications
Brand Winstar
Size 2.8"
Resolution 240x320
Active Area (mm) 44.20x58.60
Color Full Color
Display Interface MCU (Parallel)
Display IC ILI9341
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for Soldering
Pin Nr. 37
Pin Pitch -
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.8"
Resolution 240x320
Active Area (mm) 44.20x58.60
Color Full Color
Display Interface MCU (Parallel)
Display IC ILI9341
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for Soldering
Pin Nr. 37
Pin Pitch -
Preferred - Not Preferred Preferred
