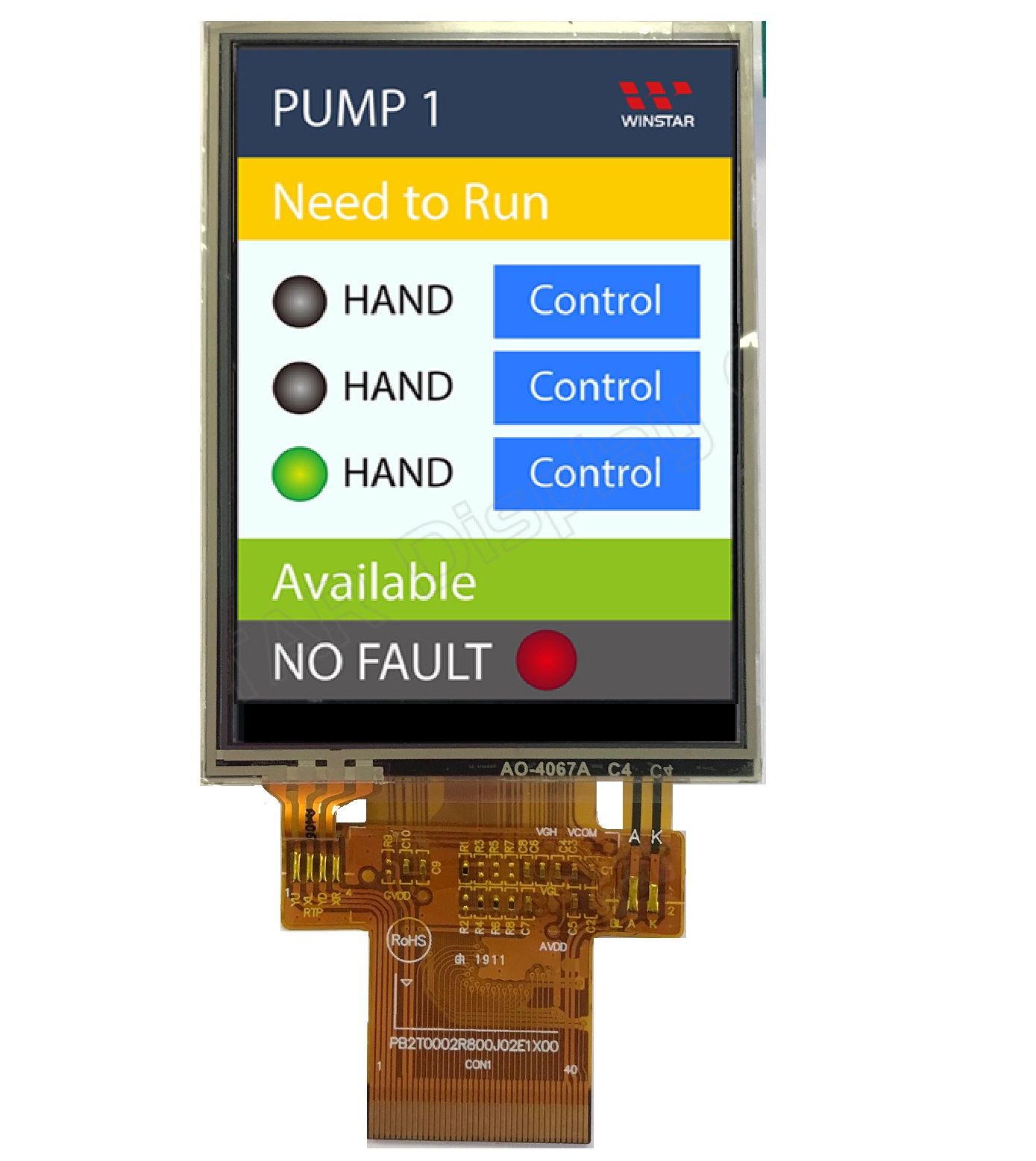

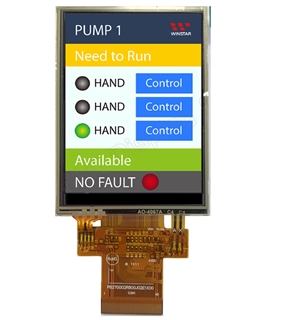

WF28-240320JD#0P1-FC

TFT 2.8'' 240x320, Portrait, LCD + IC Controller, Interface MCU/SPI IC ILI9341V, 350cd/m², Wide View Angle (IPS), Resistive touch panel

DESCRIPTION



2.4 inch TFT-LCD module with resolution 240x320 pixels. This module is built in with Himax8347-I IC; it supports 4-wire SPI interface, supply voltage for analog (VDD) range from 2.5V to 3.0V. Brightness 350 nits (typical value). View Direction 6 o'clock, Gray scale inversion 12 o'clock, contrast ratio 500:1.

This TFT-LCD module is Portrait mode with brightness 500 nits (typical value). Resistive Touch Screen (RTP) on board. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.



DRAWING

SKU: WF28-240320JD#0P1-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€18.90
€15.10
€12.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€18.90 excl tax

DESCRIPTION



2.4 inch TFT-LCD module with resolution 240x320 pixels. This module is built in with Himax8347-I IC; it supports 4-wire SPI interface, supply voltage for analog (VDD) range from 2.5V to 3.0V. Brightness 350 nits (typical value). View Direction 6 o'clock, Gray scale inversion 12 o'clock, contrast ratio 500:1.

This TFT-LCD module is Portrait mode with brightness 500 nits (typical value). Resistive Touch Screen (RTP) on board. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.



DRAWING

Products specifications
Brand Winstar
Size 2.8"
Resolution 240x320
Active Area (mm) 43.20x57.60
Color Full Color
Interface MCU/SPI
Built-in Controller ILI9341
View Angle IPS
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.8"
Resolution 240x320
Active Area (mm) 43.20x57.60
Color Full Color
Interface MCU/SPI
Built-in Controller ILI9341
View Angle IPS
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
