WF28-240320JD#0SP1-FC

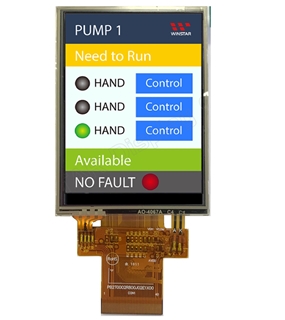

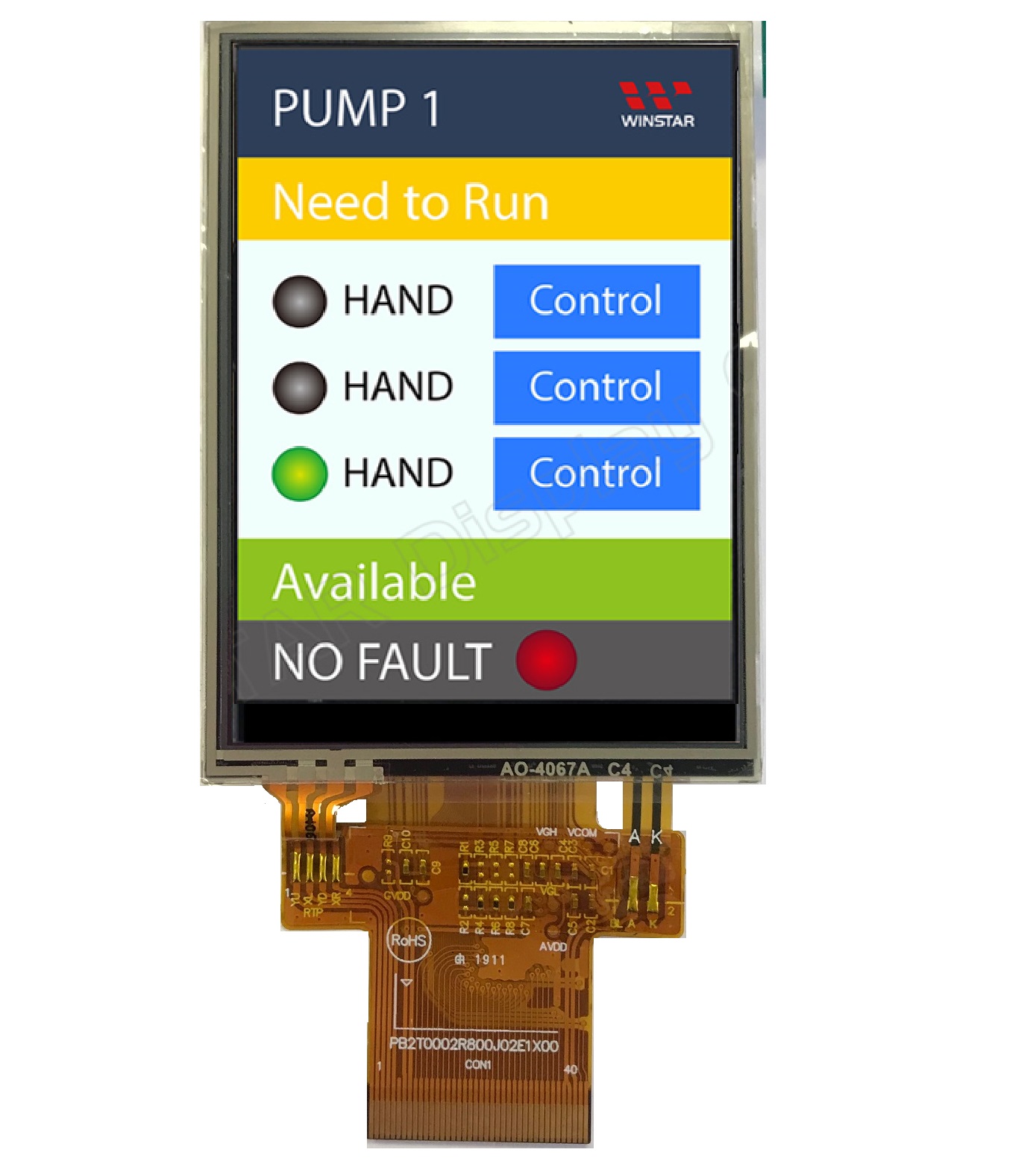

Picture of WF28-240320JD#0SP1-FC Picture of WF28-240320JD#0SP1-FC Picture of WF28-240320JD#0SP1-FC
TFT 2.8" 240x320 Portrait LCD Panel, Interface MCU (Parallel/SPI) IC ILI9341V, High Brightness 700cd/m², Wide View Angle (IPS), Resistive touch panel

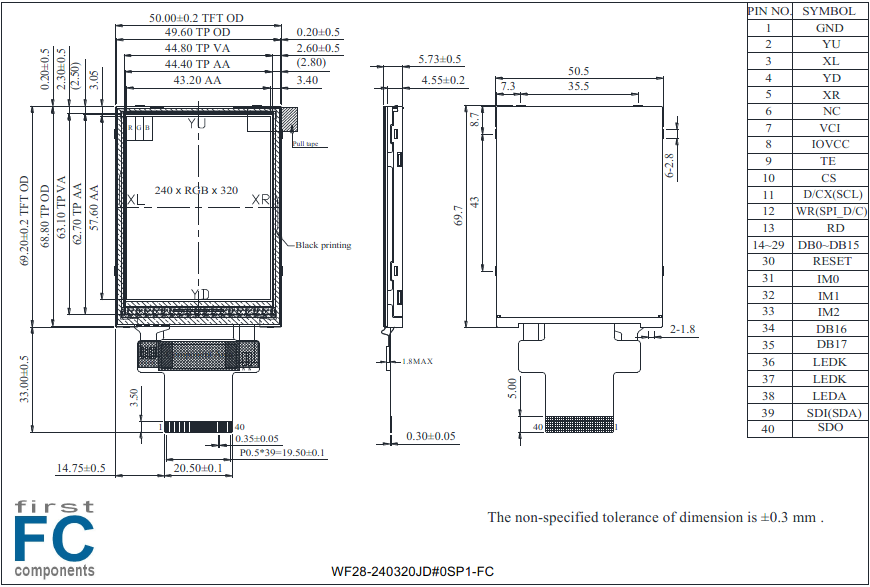

DRAWING

SKU: WF28-240320JD#0SP1-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€20.30
€14.90
€12.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€20.30 excl tax

DRAWING

Products specifications
Brand Winstar
Size 2.8"
Resolution 240x320
Active Area (mm) 43.20x57.60
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ILI9341
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.8"
Resolution 240x320
Active Area (mm) 43.20x57.60
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ILI9341
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
