WF28-240320JD#0P3-FC

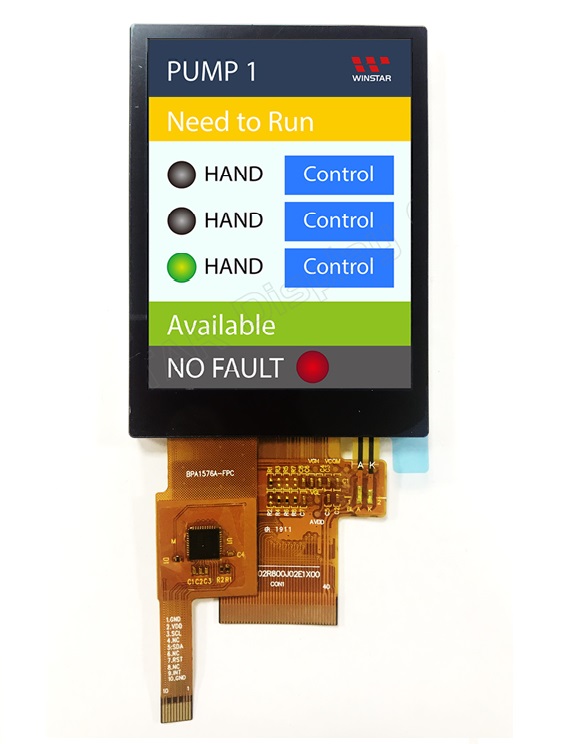

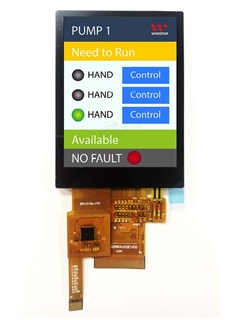

Picture of WF28-240320JD#0P3-FC Picture of WF28-240320JD#0P3-FC
TFT 2.8" 240x320 Portrait LCD Panel, Interface MCU (Parallel/SPI) IC ILI9341V, 400cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GF, IC CF1124)

DESCRIPTION

2.4 inch TFT-LCD module with resolution 240x320 pixels. This module is built in with Himax8347-I IC; it supports 4-wire SPI interface, supply voltage for analog (VDD) range from 2.5V to 3.0V. It is a high brightness version, brightness 700 nits (typical value). View Direction 6 o'clock, Gray scale inversion 12 o'clock, contrast ratio 500:1.

This TFT-LCD module is Portrait brightness 400 nits (typical value). Capacitive Touch Screen (RTP) on board. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.

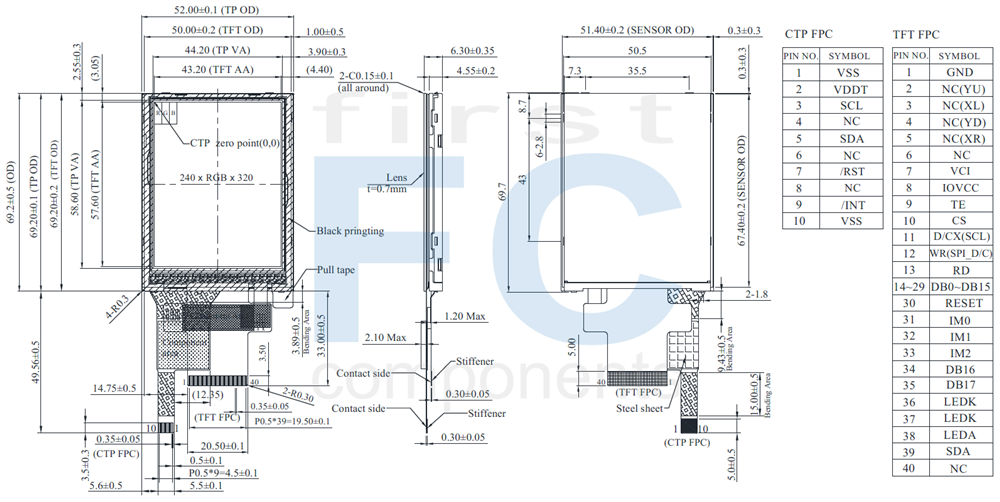

DRAWING

General Specifications

ItemDimensionUnit
Size 2.8 inch
Dot Matrix 240xRGBx320(TFT) dots
Module dimension 52.0(W)x69.2(H)x6.3(D) mm
Active area 43.2x57.6 mm
Dot pitch 0.18x0.18 mm
LCD type TFT, Normally black, Transmissive
TFT Driver IC ILI9341V or equivalent
TFT Interface MCU/SPI
View angle 80/80/80/80
Aspect Ratio 3:4
Backlight Type LED, Normally White
CTP Driver IC CF1124 or equivalent
CTP Interface I2C
CTP FW Version 01
CTP Resolution 240*320
With/Without TP With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 - +70 °C
Storage Temperature TST -30 - +80 °C



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for digital IOVCC - 1.65 - 3.3 V
Supply Voltage for analog VCI - 2.5 - 3.3 V
Power Supply for Current ICC IOVCC=VCI
=VCC=3.0V		 - 13 20 mA
Supply Voltage For Touch Logic VDDT - 3.0 3.3 3.6 V
IDDT - - 15 25 mA



Interface

PinSymbolFunctionI/O
1 GND Ground P
2~6 NC No connetcion -
7 VCI High voltage power supply for analog circuit blocks (2.5~3.3V) P
8 IOVCC Low voltage power supply for interface logic circuits (2.5~3.3V) P
9 TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low.
If not used, open this pin. 		 O
10 CS Chip select signal. -
11 D/CX(SCL) (DCX) This pin is used to select “Data or Command” in the parallel interface.
When DCX = ’1’, data is selected.
When DCX = ’0’, command is selected.
(SCL) This pin is also used as serial interface clock in 3-line 9-bit / 4-line 8-bit serial data interface.
If it's not used, this pin should be connected to IOVCC or GND.		 I
12 WR(SPI_D/C) - 8080-Ⅰ/8080-Ⅱ system (WRX): Serves as a write signal and writes data at the rising edge.
- 4-line system (D/CX): Serves as Data or Command select.
- In serial interface "2-data-lane data" transfers mode, serves as a second data pin (SDA2)
Fix to IOVCC level when not in use. 		 I
13 RD 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge.
Fix to IOVCC level when not in use. 		 I
14~29 DB0~DB15 18-bit parallel bi-directional data bus for MCU system.  Fix to GND level when not in use.  I/O
30 RESET This signal will reset the device and must be applied properly to initialize the chip.
Signal is active low. 		 I
31 IM0 Select the MCU interface mode I
32 IM1
33 IM2
IM2 IM! IM0 MCU-Interface Mode
DB Pin in use
Register/Content GRAM
0 0 0 80 MCU 8-bit bus interface I DB[7:0] DB[7:0]
0 0 1 80 MCU 16-bit bus interface I DB[7:0] DB[15:0]
0 1 0 80 MCU 9-bit bus interface I DB[7:0] DB[8:0]
0 1 1 80 MCU 18-bit bus interface I DB[7:0] DB[17:0]
1 0 1 3-wire 9-bit data serial interface I SDA: In/Out
1 1 0 4-wire 8-bit data serial interface I SDA: In/Out

MPU Parallel interface bus and serial interface select
If use RGB Interface must select serial interface
* : Fix these pins at IOVCC or GND.
34 DB16 18-bit parallel bi-directional data bus for MCU system and RGB interface mode
Fix to GND level when not to in use.		 I/O
35 DB17
36 LEDK Cathode for LED backlight. P
37 LEDK Cathode for LED backlight. P
38 LEDA Anode for LED backlight. P
39 SDA SDA: Serial in/out signal.
The data is applied on the rising edge of the SCL signal.
If not used, fix this pin at IOVCC or GND.		 I/O
40 NC Not used, open this pin.
SKU: WF28-240320JD#0P3-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€21.40
€17.10
€14.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€21.40 excl tax

DESCRIPTION

2.4 inch TFT-LCD module with resolution 240x320 pixels. This module is built in with Himax8347-I IC; it supports 4-wire SPI interface, supply voltage for analog (VDD) range from 2.5V to 3.0V. It is a high brightness version, brightness 700 nits (typical value). View Direction 6 o'clock, Gray scale inversion 12 o'clock, contrast ratio 500:1.

This TFT-LCD module is Portrait brightness 400 nits (typical value). Capacitive Touch Screen (RTP) on board. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.



DRAWING

General Specifications

ItemDimensionUnit
Size 2.8 inch
Dot Matrix 240xRGBx320(TFT) dots
Module dimension 52.0(W)x69.2(H)x6.3(D) mm
Active area 43.2x57.6 mm
Dot pitch 0.18x0.18 mm
LCD type TFT, Normally black, Transmissive
TFT Driver IC ILI9341V or equivalent
TFT Interface MCU/SPI
View angle 80/80/80/80
Aspect Ratio 3:4
Backlight Type LED, Normally White
CTP Driver IC CF1124 or equivalent
CTP Interface I2C
CTP FW Version 01
CTP Resolution 240*320
With/Without TP With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 - +70 °C
Storage Temperature TST -30 - +80 °C



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for digital IOVCC - 1.65 - 3.3 V
Supply Voltage for analog VCI - 2.5 - 3.3 V
Power Supply for Current ICC IOVCC=VCI
=VCC=3.0V		 - 13 20 mA
Supply Voltage For Touch Logic VDDT - 3.0 3.3 3.6 V
IDDT - - 15 25 mA



Interface

PinSymbolFunctionI/O
1 GND Ground P
2~6 NC No connetcion -
7 VCI High voltage power supply for analog circuit blocks (2.5~3.3V) P
8 IOVCC Low voltage power supply for interface logic circuits (2.5~3.3V) P
9 TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low.
If not used, open this pin. 		 O
10 CS Chip select signal. -
11 D/CX(SCL) (DCX) This pin is used to select “Data or Command” in the parallel interface.
When DCX = ’1’, data is selected.
When DCX = ’0’, command is selected.
(SCL) This pin is also used as serial interface clock in 3-line 9-bit / 4-line 8-bit serial data interface.
If it's not used, this pin should be connected to IOVCC or GND.		 I
12 WR(SPI_D/C) - 8080-Ⅰ/8080-Ⅱ system (WRX): Serves as a write signal and writes data at the rising edge.
- 4-line system (D/CX): Serves as Data or Command select.
- In serial interface "2-data-lane data" transfers mode, serves as a second data pin (SDA2)
Fix to IOVCC level when not in use. 		 I
13 RD 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge.
Fix to IOVCC level when not in use. 		 I
14~29 DB0~DB15 18-bit parallel bi-directional data bus for MCU system.  Fix to GND level when not in use.  I/O
30 RESET This signal will reset the device and must be applied properly to initialize the chip.
Signal is active low. 		 I
31 IM0 Select the MCU interface mode I
32 IM1
33 IM2
IM2 IM! IM0 MCU-Interface Mode
DB Pin in use
Register/Content GRAM
0 0 0 80 MCU 8-bit bus interface I DB[7:0] DB[7:0]
0 0 1 80 MCU 16-bit bus interface I DB[7:0] DB[15:0]
0 1 0 80 MCU 9-bit bus interface I DB[7:0] DB[8:0]
0 1 1 80 MCU 18-bit bus interface I DB[7:0] DB[17:0]
1 0 1 3-wire 9-bit data serial interface I SDA: In/Out
1 1 0 4-wire 8-bit data serial interface I SDA: In/Out

MPU Parallel interface bus and serial interface select
If use RGB Interface must select serial interface
* : Fix these pins at IOVCC or GND.
34 DB16 18-bit parallel bi-directional data bus for MCU system and RGB interface mode
Fix to GND level when not to in use.		 I/O
35 DB17
36 LEDK Cathode for LED backlight. P
37 LEDK Cathode for LED backlight. P
38 LEDA Anode for LED backlight. P
39 SDA SDA: Serial in/out signal.
The data is applied on the rising edge of the SCL signal.
If not used, fix this pin at IOVCC or GND.		 I/O
40 NC Not used, open this pin.
Products specifications
Brand Winstar
Size 2.8"
Resolution 240x320
Active Area (mm) 43.20x57.60
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ILI9341
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller FT6336G
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.8"
Resolution 240x320
Active Area (mm) 43.20x57.60
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ILI9341
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller FT6336G
Preferred - Not Preferred Preferred
