WF35-320480UD#0P0-FC

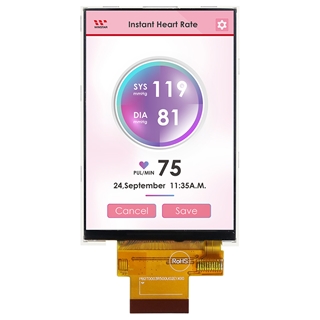

Picture of WF35-320480UD#0P0-FC Picture of WF35-320480UD#0P0-FC
TFT 3.5" 320x480 Portrait LCD Panel, Interface MCU (Parallel/SPI) IC ILI9488, 600cd/m², Wide View Angle (IPS), No touch

DESCRIPTION

3.5 inch IPS Panel with 320x480 resolution TFT LCD module. This module is built in with ILI9488 IC; it supports MCU, 3-Line SPI interface / RGB interface+3-SPI and featured with brightness 600 nits (typical value).

This 3.5” TFT LCD module is portrait mode with IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical). operating temperature from -20℃ to +70℃; Storage temperature from -30℃ to +80℃.

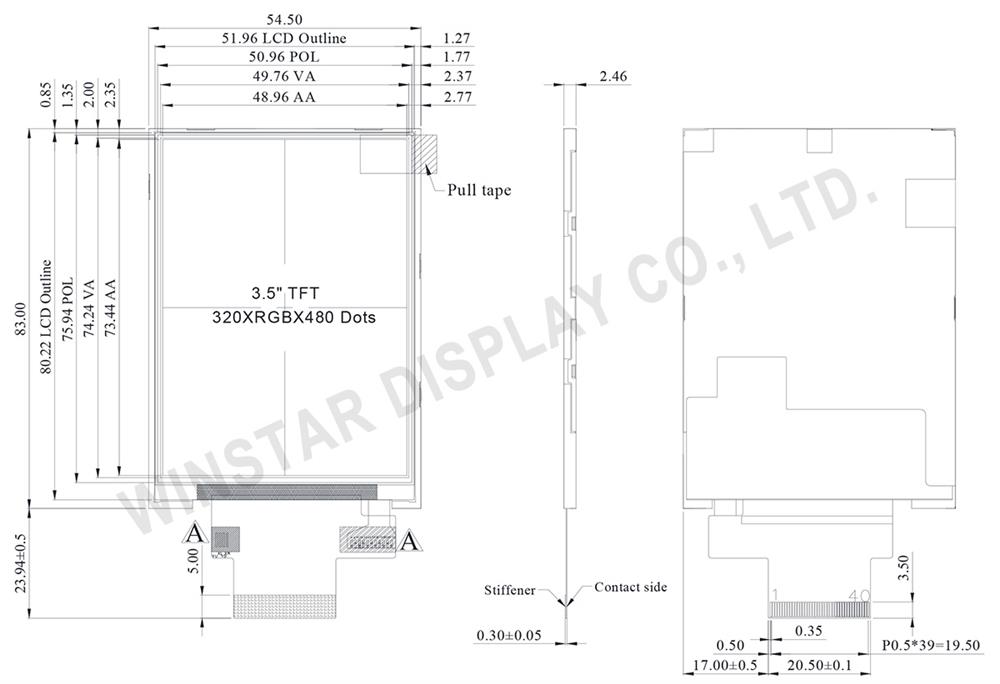

DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

NOSymbolFunctionI/O
1 LEDK Cathode of LED backlight P
2 LEDA Anode of LED backlight. P
3 IM0 Note 1 I
4 IM1 Note 1 I
5 IM2 Note 1 I
6 RESET System reset pin. I
7 NC(VS) No Connection (Vrtical Sync signal) Note 2) I
8 NC(HS) No Connection (Horizontal Sync signal ; Note 2) I
9 NC(DCLK) No Connection (Pixel clock signal; Note 2) I
10 NC(DE) No Connection (Data Enable; Note 2) I
11-16 DB17-12 Data bus (R5~R0; RGB-18bit Pixel; Note 2) I
17-22 DB11-6 Data bus (G5~G0; RGB-18bit Pixel; Note 2) I
23-28 DB5-0 Data bus (R5~G0; RGB-18bit Pixel; Note 2) I
29 NC (SDA) Connection (serial data input/output pin) I
30 RD Read strobe signal. Read out data when RDX is Low. I
31 WR (SCL) Write data when WRX is Low.(serial clock input pin) I
32 D/C register select I
33 CS (NCS) Chip select signal (serial chip select input pin) I
34 IOVCC Power supply (TYP:1.8V/2.8V). P
35 VCI Power supply(TYP:2.8V). P
36 GND Ground P
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection




Note 1

IM2IM1IM0MPU  InterfaceGRAM
0 0 0 8080 MCU 18-bit bus D[17:0]
0 1 0 8080 MCU 16-bit bus D[15:0]
0 1 1 8080 MCU 8-bit bus D[7:0]
1 0 1 3-Line SPI SDA,SCL,NCS
1 0 1 RGB interface+3-SPI D[17:0] (RGB-18bit/Pixel)
D[15:0] (RGB-16bit/Pixel)



General Specifications

ItemDimensionUnit
Size 3.5 inch
Dot Matrix 320 × RGB × 480(TFT) dots
Module dimension 54.5 (W) × 83.0 (H) × 2.46(D) mm
Active area 48.96 × 73.44 mm
LCD type TFT, Normally Black, Transmissive
View Direction  Wide View
Aspect Ratio Portrait
Driver IC ILI9488 Or Equal
Interface MCU 8/16/18-bit, 3-SPI ,RGB interface+3-SPI
Backlight Type LED,Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － 70 ℃
Storage Temperature TST -30 － 80 ℃



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for digital IOVCC － － 1.8/2.8 3.3 V
Supply Voltage for analog VCI － － 2.8 3.3 V
Power Supply for Current ICC IOVCC=VCI
=VCC=3.3V		 － 13.6 － mA


SKU: WF35-320480UD#0P0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€19.70
€15.70
€13.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€19.70 excl tax

DESCRIPTION

3.5 inch IPS Panel with 320x480 resolution TFT LCD module. This module is built in with ILI9488 IC; it supports MCU, 3-Line SPI interface / RGB interface+3-SPI and featured with brightness 600 nits (typical value).

This 3.5” TFT LCD module is portrait mode with IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical). operating temperature from -20℃ to +70℃; Storage temperature from -30℃ to +80℃.



DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

NOSymbolFunctionI/O
1 LEDK Cathode of LED backlight P
2 LEDA Anode of LED backlight. P
3 IM0 Note 1 I
4 IM1 Note 1 I
5 IM2 Note 1 I
6 RESET System reset pin. I
7 NC(VS) No Connection (Vrtical Sync signal) Note 2) I
8 NC(HS) No Connection (Horizontal Sync signal ; Note 2) I
9 NC(DCLK) No Connection (Pixel clock signal; Note 2) I
10 NC(DE) No Connection (Data Enable; Note 2) I
11-16 DB17-12 Data bus (R5~R0; RGB-18bit Pixel; Note 2) I
17-22 DB11-6 Data bus (G5~G0; RGB-18bit Pixel; Note 2) I
23-28 DB5-0 Data bus (R5~G0; RGB-18bit Pixel; Note 2) I
29 NC (SDA) Connection (serial data input/output pin) I
30 RD Read strobe signal. Read out data when RDX is Low. I
31 WR (SCL) Write data when WRX is Low.(serial clock input pin) I
32 D/C register select I
33 CS (NCS) Chip select signal (serial chip select input pin) I
34 IOVCC Power supply (TYP:1.8V/2.8V). P
35 VCI Power supply(TYP:2.8V). P
36 GND Ground P
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection




Note 1

IM2IM1IM0MPU  InterfaceGRAM
0 0 0 8080 MCU 18-bit bus D[17:0]
0 1 0 8080 MCU 16-bit bus D[15:0]
0 1 1 8080 MCU 8-bit bus D[7:0]
1 0 1 3-Line SPI SDA,SCL,NCS
1 0 1 RGB interface+3-SPI D[17:0] (RGB-18bit/Pixel)
D[15:0] (RGB-16bit/Pixel)



General Specifications

ItemDimensionUnit
Size 3.5 inch
Dot Matrix 320 × RGB × 480(TFT) dots
Module dimension 54.5 (W) × 83.0 (H) × 2.46(D) mm
Active area 48.96 × 73.44 mm
LCD type TFT, Normally Black, Transmissive
View Direction  Wide View
Aspect Ratio Portrait
Driver IC ILI9488 Or Equal
Interface MCU 8/16/18-bit, 3-SPI ,RGB interface+3-SPI
Backlight Type LED,Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － 70 ℃
Storage Temperature TST -30 － 80 ℃



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for digital IOVCC － － 1.8/2.8 3.3 V
Supply Voltage for analog VCI － － 2.8 3.3 V
Power Supply for Current ICC IOVCC=VCI
=VCC=3.3V		 － 13.6 － mA


Products specifications
Brand Winstar
Size 3.5"
Resolution 320x480
Active Area (mm) 48.96x73.44
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ILI9488
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x480
Active Area (mm) 48.96x73.44
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ILI9488
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
