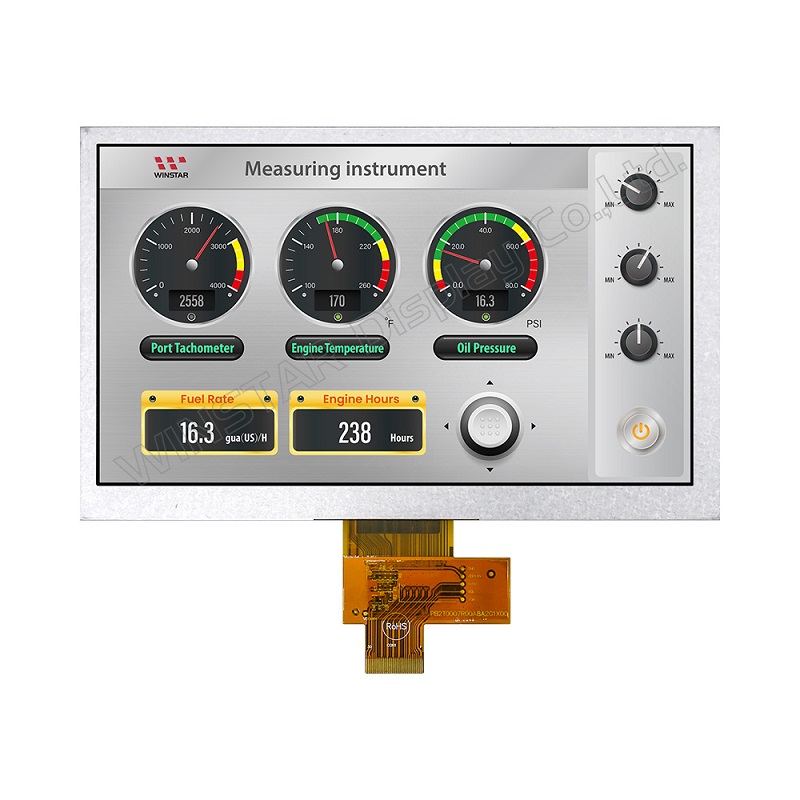

7 inch MIPI DSI interface High Brightness 1024 x 600 IPS TFT-LCD module. This TFT-LCD is featured with IPS technology which is having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical) and high brightness of 1100 nits (typical value). This model is available in projected capacitive touch panel (PCAP) and resistive touch screen option.
This module is built-in with EK7900 and EK7321 driver IC; it supports 4-Lanes MIPI interface (Mobile Industry Processor Interface) DSI (Display Serial Interface). The MIPI DSI interface becomes more popular because of the characteristics of High Speed Data Transmission and High Speed Clock Transmission. Aspect ratio 16:9, operating temperature from -20℃ to +70℃; storage temperature from -30℃ to +80℃.
NoteWhen L/R=”0”,set right to left scan direction.When L/R=”1”,set left to right scan direction.When U/D=”0”,set top to bottom scan direction.When U/D=”1”,set bottom to top scan direction.
For quantities above 25 pcs pls send your enquiry to firstname.lastname@example.org or call +39 0332 1888005
