WF35-320480UM#0P3-FC

Picture of WF35-320480UM#0P3-FC Picture of WF35-320480UM#0P3-FC
TFT 3.5'' 320x480, Portrait, LCD + IC Controller, Interface MIPI IC ILI9488, 500cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG)

DESCRIPTION

3.5 inch IPS TFT LCD module made of resolution 320x480 pixels. This module is built-in with ILI9488 IC; it supports MIPI (Mobile Industry Processor Interface) DSI (Display Serial Interface) interface and features a brightness of 500 nits (typical value) and contrast ratio of 700:1 (typical value). It has a Projected Capacitive Touch Panel (PCAP) on the module, which is built-in with GT911 IC on the touchscreen, supports I2C interface, and the power supply for the analog circuit range from 2.8V to 3.3V.

This 3.5" TFT LCD module is portrait mode with IPS (In-Plane Switching) Panel which has the advantage of a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical). Operating temperature from -20℃ to +70℃; storage temperature from -30℃ to +80℃.

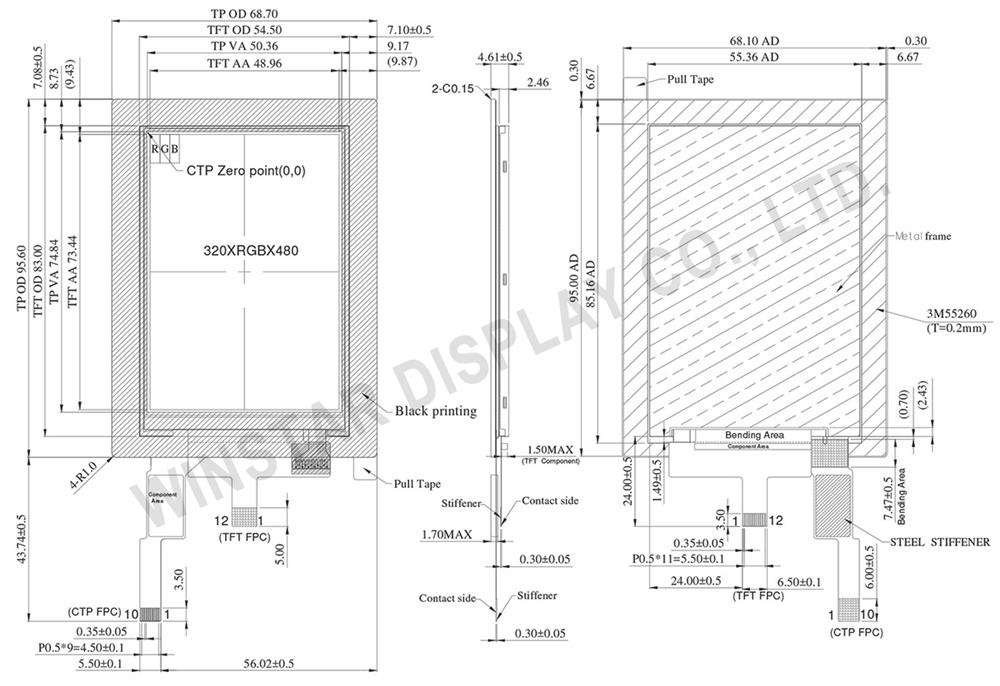

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

NOSymbolFunctionI/O
1 VCI A supply voltage to the analog circuit. Connect to an external power supply of 2.5 ~ 3.3V.
Connect to a stabilizing capacitor between VCI and GND.		 P
2 IOVCC A supply voltage to the digital circuit. Connect to an external power supply of 1.65 ~ 3.3V. P
3 RESET Reset input signal
Initialize the chip with a low input. Be sure to execute a power-on
reset after supplying power.		 I
4 GND Ground I
5 MIPI_CLK_P Positive polarity of low voltage differential clock signal Leave the pin open when not in use. I
6 MIPI_CLK_N Negative polarity of low voltage differential clock signal
Leave the pin open when not in use		 I
7 GND Ground I
8 MIPI_DATA_P Positive polarity of low voltage differential data signal
Leave the pin open when not in use.		 I
9 MIPI_DATA_N Negative polarity of low voltage differential data signal
Leave the pin open when not in use.		 I
10 GND Ground I
11 VLED+ Anode of LED backlight.
12 VLED- Cathode of LED backlight



PCAP PIN Definition

PinSymbolFunction
1 VSS Connect to system ground.
2 VDDT Power Supply
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 RST External Reset, Low is active
8 NC No connect
9 INT External interrupt to the host
10 VSS Connect to system ground.



General Specifications

ItemDimensionUnit
Size 3.5 inch
Dot Matrix 320 × RGB × 480(TFT) dots
Module dimension 68.7 (W) × 95.6 (H) × 4.61(D) mm
Active area 48.96 × 73.44 mm
Pixel pitch 0.153 × 0.153 mm
LCD type TFT, Normally Black, Transmissive
View Direction  80/80/80/80
Aspect Ratio Portrait
Driver IC ILI9488 Or Equal
Interface 1-Lane MIPI
Backlight Type LED, Normally White
PCAP Driver IC GT911 or equivalent
PCAP Interface I2C
FW Version 0x95
PCAP Resolution 320*480
Touch Panel Projected capacitive touch screen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － 70 ℃
Storage Temperature TST -30 － 80 ℃



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for digital IOVCC － － D1.8/2.8 3.3 V
Supply Voltage for analog VCI － － 2.8 3.3 V
Power Supply for Current ICC IOVCC=VCI
=VCC=3.3V		 － 13.6 － mA
SKU: WF35-320480UM#0P3-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€43.70
€36.40
€31.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€43.70 excl tax

DESCRIPTION

3.5 inch IPS TFT LCD module made of resolution 320x480 pixels. This module is built-in with ILI9488 IC; it supports MIPI (Mobile Industry Processor Interface) DSI (Display Serial Interface) interface and features a brightness of 500 nits (typical value) and contrast ratio of 700:1 (typical value). It has a Projected Capacitive Touch Panel (PCAP) on the module, which is built-in with GT911 IC on the touchscreen, supports I2C interface, and the power supply for the analog circuit range from 2.8V to 3.3V.

This 3.5" TFT LCD module is portrait mode with IPS (In-Plane Switching) Panel which has the advantage of a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical). Operating temperature from -20℃ to +70℃; storage temperature from -30℃ to +80℃.

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

NOSymbolFunctionI/O
1 VCI A supply voltage to the analog circuit. Connect to an external power supply of 2.5 ~ 3.3V.
Connect to a stabilizing capacitor between VCI and GND.		 P
2 IOVCC A supply voltage to the digital circuit. Connect to an external power supply of 1.65 ~ 3.3V. P
3 RESET Reset input signal
Initialize the chip with a low input. Be sure to execute a power-on
reset after supplying power.		 I
4 GND Ground I
5 MIPI_CLK_P Positive polarity of low voltage differential clock signal Leave the pin open when not in use. I
6 MIPI_CLK_N Negative polarity of low voltage differential clock signal
Leave the pin open when not in use		 I
7 GND Ground I
8 MIPI_DATA_P Positive polarity of low voltage differential data signal
Leave the pin open when not in use.		 I
9 MIPI_DATA_N Negative polarity of low voltage differential data signal
Leave the pin open when not in use.		 I
10 GND Ground I
11 VLED+ Anode of LED backlight.
12 VLED- Cathode of LED backlight



PCAP PIN Definition

PinSymbolFunction
1 VSS Connect to system ground.
2 VDDT Power Supply
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 RST External Reset, Low is active
8 NC No connect
9 INT External interrupt to the host
10 VSS Connect to system ground.



General Specifications

ItemDimensionUnit
Size 3.5 inch
Dot Matrix 320 × RGB × 480(TFT) dots
Module dimension 68.7 (W) × 95.6 (H) × 4.61(D) mm
Active area 48.96 × 73.44 mm
Pixel pitch 0.153 × 0.153 mm
LCD type TFT, Normally Black, Transmissive
View Direction  80/80/80/80
Aspect Ratio Portrait
Driver IC ILI9488 Or Equal
Interface 1-Lane MIPI
Backlight Type LED, Normally White
PCAP Driver IC GT911 or equivalent
PCAP Interface I2C
FW Version 0x95
PCAP Resolution 320*480
Touch Panel Projected capacitive touch screen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － 70 ℃
Storage Temperature TST -30 － 80 ℃



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for digital IOVCC － － D1.8/2.8 3.3 V
Supply Voltage for analog VCI － － 2.8 3.3 V
Power Supply for Current ICC IOVCC=VCI
=VCC=3.3V		 － 13.6 － mA
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x480
Active Area (mm) 48.96x73.44
Color Full Color
Display Interface MIPI
Display IC ILI9488
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 12
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x480
Active Area (mm) 48.96x73.44
Color Full Color
Display Interface MIPI
Display IC ILI9488
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 12
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
