WF50-800480FS#ASP7-FC

Picture of WF50-800480FS#ASP7-FC Picture of WF50-800480FS#ASP7-FC
TFT 5" 800x480, LCD Module, Interface SPI/QSPI, High brightness 750cd/m², Wide view angle (IPS), Capacitive touch panel

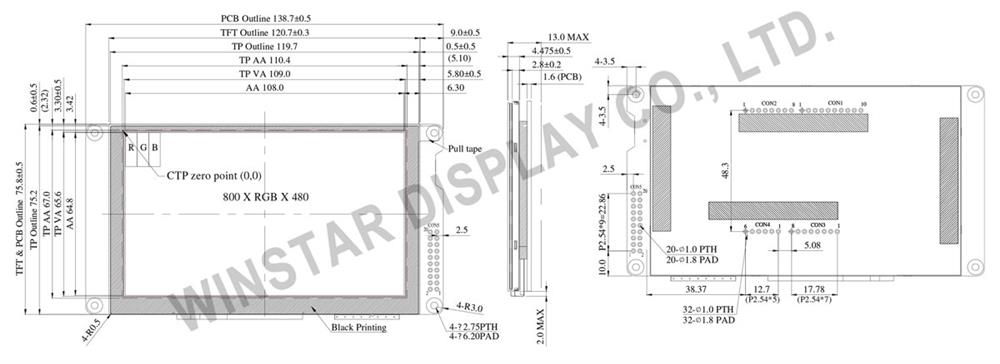

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition (CON5)

PinSymbolI/OFunction
1 VDD P 3.3V power supply input
2 GND P Ground
3 SCK I SPI clock input
4 MISO O SPI Single mode: SPI MISO output
SPI Dual/Quad mode: SPI data line 1
5 MOSI I SPI Single mode: SPI MOSI input
SPI Dual/Quad mode: SPI data line 0
6 CS I SPI slave select input
7 INT OD/O Interrupt to host, open drain output(default) or push-pull output, active low
8 PD_N I Chip power down mode control input, active low. Connect to MCU GPIO for power management or hardware reset function
9 GPIO2 I/O General purpose IO 2
10 GPIO3 I/O General purpose IO 3
11 IO2 I/O SPI Single/Dual mode: General purpose IO 0
SPI Quad mode: SPI data line 2
12 IO3 I/O SPI Single/Dual mode: General purpose IO 1
SPI Quad mode: SPI data line 3
13 CSCL I Connect to I2C SCL pin of the CTP(ILI2130)
14 CSDA I/O Connect to I2C SDA pin of the CTP(ILI2130)
15 CRST I Connect to reset pin of the CTP(ILI2130)
16 CINT O Connect to interrupt pin of the CTP(ILI2130)
17 VLED P 5V power supply input
18 VLED P 5V power supply input
19 GND P Ground
20 GND P Ground



General Specifications

ItemDimensionUnit
Size 5 inch
Dot Matrix 800× 3(RGB) × 480 dots
Module dimension 138.7 (W) x 75.8 (H) x 13.0(D)(MAX) mm
Active area 108(W) ×64.8 (H)  mm
Pixel pitch 0.135(W) ×0.135(H)  mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 5:3
Backlight Type LED, Normally White
TFT Controller IC BT815Q
TFT Interface SPI/QSPI
PCAP FW Version 0x07.0x00.0x00.0x00.0xA1.0x25.0x50.0x00
PCAP IC ILI2130 or equivalent
PCAP Interface I2C
PCAP Resolution 16384*16384
Touch Panel With PCAP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For VDD VDD － 3.1 3.3 3.5 V
Supply Current For VDD IDD VDD=3.3V － 147 220 mA
Supply Voltage For VLED VLED － 4.5 5 5.5 V
Supply Current For VLED ILED VLED=+5V － 334 500 mA
SKU: WF50-800480FS#ASP7-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€83.60
€75.20
€63.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€83.60 excl tax

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition (CON5)

PinSymbolI/OFunction
1 VDD P 3.3V power supply input
2 GND P Ground
3 SCK I SPI clock input
4 MISO O SPI Single mode: SPI MISO output
SPI Dual/Quad mode: SPI data line 1
5 MOSI I SPI Single mode: SPI MOSI input
SPI Dual/Quad mode: SPI data line 0
6 CS I SPI slave select input
7 INT OD/O Interrupt to host, open drain output(default) or push-pull output, active low
8 PD_N I Chip power down mode control input, active low. Connect to MCU GPIO for power management or hardware reset function
9 GPIO2 I/O General purpose IO 2
10 GPIO3 I/O General purpose IO 3
11 IO2 I/O SPI Single/Dual mode: General purpose IO 0
SPI Quad mode: SPI data line 2
12 IO3 I/O SPI Single/Dual mode: General purpose IO 1
SPI Quad mode: SPI data line 3
13 CSCL I Connect to I2C SCL pin of the CTP(ILI2130)
14 CSDA I/O Connect to I2C SDA pin of the CTP(ILI2130)
15 CRST I Connect to reset pin of the CTP(ILI2130)
16 CINT O Connect to interrupt pin of the CTP(ILI2130)
17 VLED P 5V power supply input
18 VLED P 5V power supply input
19 GND P Ground
20 GND P Ground



General Specifications

ItemDimensionUnit
Size 5 inch
Dot Matrix 800× 3(RGB) × 480 dots
Module dimension 138.7 (W) x 75.8 (H) x 13.0(D)(MAX) mm
Active area 108(W) ×64.8 (H)  mm
Pixel pitch 0.135(W) ×0.135(H)  mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 5:3
Backlight Type LED, Normally White
TFT Controller IC BT815Q
TFT Interface SPI/QSPI
PCAP FW Version 0x07.0x00.0x00.0x00.0xA1.0x25.0x50.0x00
PCAP IC ILI2130 or equivalent
PCAP Interface I2C
PCAP Resolution 16384*16384
Touch Panel With PCAP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For VDD VDD － 3.1 3.3 3.5 V
Supply Current For VDD IDD VDD=3.3V － 147 220 mA
Supply Voltage For VLED VLED － 4.5 5 5.5 V
Supply Current For VLED ILED VLED=+5V － 334 500 mA
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface MCU (SPI/QSPI)
Display IC BT816Q
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface MCU (SPI/QSPI)
Display IC BT816Q
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Preferred
