WF40-480480EM#0SPW0-FC

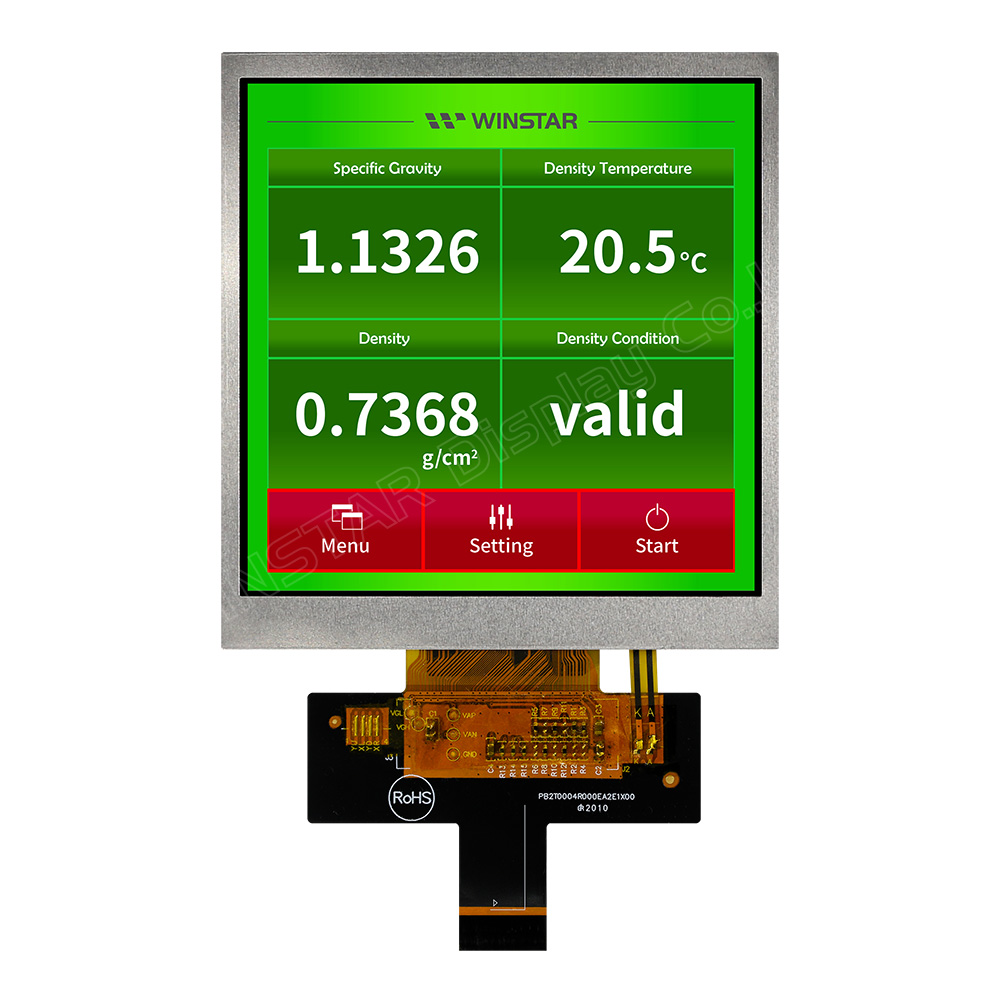

Picture of WF40-480480EM#0SPW0-FC Picture of WF40-480480EM#0SPW0-FC
TFT 4'' 480x480, Square, LCD Module, Interface MIPI DSI IC ST7701S, High Brightness 1000cd/m², Wide View Angle (IPS), Super extended temperature, No touch

DESCRIPTION



High Brightness 4 inch Square IPS TFT-LCD module; made of resolution 480 x 480 pixels. This module supports MIPI DSI Serial interface (2 lanes), it featured with IPS panel which is having the advantage of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), high brightness 1000 nits (typical value), glare surface panel, aspect Ratio 1:1.

It has an integrated driver IC ST7701S on module, the interface supply voltage range from 2.5V to 3.6V, typical value 2.8V. Operating temperatures from -30℃ to +80℃; storage temperatures from -30℃ to +80℃.

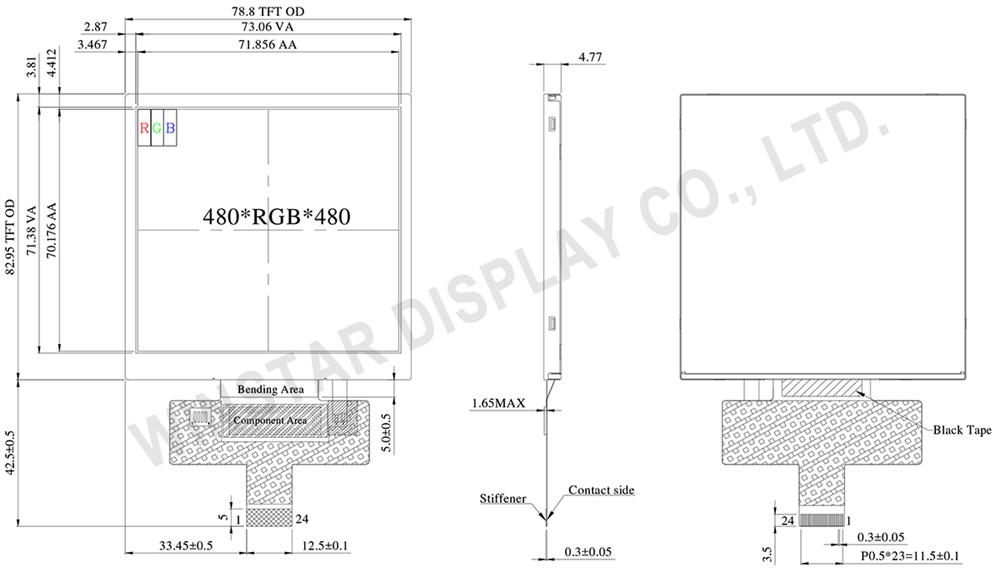

DRAWING

4 TFT LCD, TFT LCD 4, TFT 4, 4 TFT Display, 4 TFT, 4 inch TFT Display - WF40ESWAA6MNN0



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 GND Power ground
2-5 NC No connect
6 GND Power ground
7 D0N MIPI DSI differential data pair (Data lane 0)
8 D0P
9 GND Power ground
10 CLK_N MIPI DSI differential clock pair
11 CLK_P
12 GND Power ground
13 D1N MIPI DSI differential data pair(Data lane 1)
14 D1P
15 GND Power ground
16 IOVCC I/O and interface power supply (1.8V)
17 RESET Reset input
18 TE Tearing effect output pin.
19 VCI Analog power supply
20 VCI Analog power supply
21 NC No connect
22 VLED- Power for LED backlight cathode
23 VLED+ Power for LED backlight anode
24 GND Power ground



General Specifications

ItemDimensionUnit
Size 4.0 inch
Dot Matrix 480 × 3(RGB) × 480 dots
Module dimension 78.8(H) × 82.95 (W) × 4.77 mm
Active area 71.856(H) × 70.176 (V) mm
Dot pitch 0.1497(H) × 0.1462(V) mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 1:1
Interface 2-Lanes MIPI
Driver IC ST7701S
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolValuesUnit
Min.Typ.Max.
Interface Supply Voltage VCI 2.5 2.8 3.6 V
Power voltage IOVCC 1.65 1.8 3.3 V
Current for Driver(White) IDD - 11 16.5 mA

SKU: WF40-480480EM#0SPW0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€18.40
€14.70
€13.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€18.40 excl tax

DESCRIPTION



High Brightness 4 inch Square IPS TFT-LCD module; made of resolution 480 x 480 pixels. This module supports MIPI DSI Serial interface (2 lanes), it featured with IPS panel which is having the advantage of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), high brightness 1000 nits (typical value), glare surface panel, aspect Ratio 1:1.

It has an integrated driver IC ST7701S on module, the interface supply voltage range from 2.5V to 3.6V, typical value 2.8V. Operating temperatures from -30℃ to +80℃; storage temperatures from -30℃ to +80℃.



DRAWING

4 TFT LCD, TFT LCD 4, TFT 4, 4 TFT Display, 4 TFT, 4 inch TFT Display - WF40ESWAA6MNN0



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 GND Power ground
2-5 NC No connect
6 GND Power ground
7 D0N MIPI DSI differential data pair (Data lane 0)
8 D0P
9 GND Power ground
10 CLK_N MIPI DSI differential clock pair
11 CLK_P
12 GND Power ground
13 D1N MIPI DSI differential data pair(Data lane 1)
14 D1P
15 GND Power ground
16 IOVCC I/O and interface power supply (1.8V)
17 RESET Reset input
18 TE Tearing effect output pin.
19 VCI Analog power supply
20 VCI Analog power supply
21 NC No connect
22 VLED- Power for LED backlight cathode
23 VLED+ Power for LED backlight anode
24 GND Power ground



General Specifications

ItemDimensionUnit
Size 4.0 inch
Dot Matrix 480 × 3(RGB) × 480 dots
Module dimension 78.8(H) × 82.95 (W) × 4.77 mm
Active area 71.856(H) × 70.176 (V) mm
Dot pitch 0.1497(H) × 0.1462(V) mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 1:1
Interface 2-Lanes MIPI
Driver IC ST7701S
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolValuesUnit
Min.Typ.Max.
Interface Supply Voltage VCI 2.5 2.8 3.6 V
Power voltage IOVCC 1.65 1.8 3.3 V
Current for Driver(White) IDD - 11 16.5 mA

Products specifications
Brand Winstar
Size 4"
Resolution 480x480
Active Area (mm) 71.85x70.17
Color Full Color
Display Interface MIPI
Display IC Controller ST7701S
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4"
Resolution 480x480
Active Area (mm) 71.85x70.17
Color Full Color
Display Interface MIPI
Display IC Controller ST7701S
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
