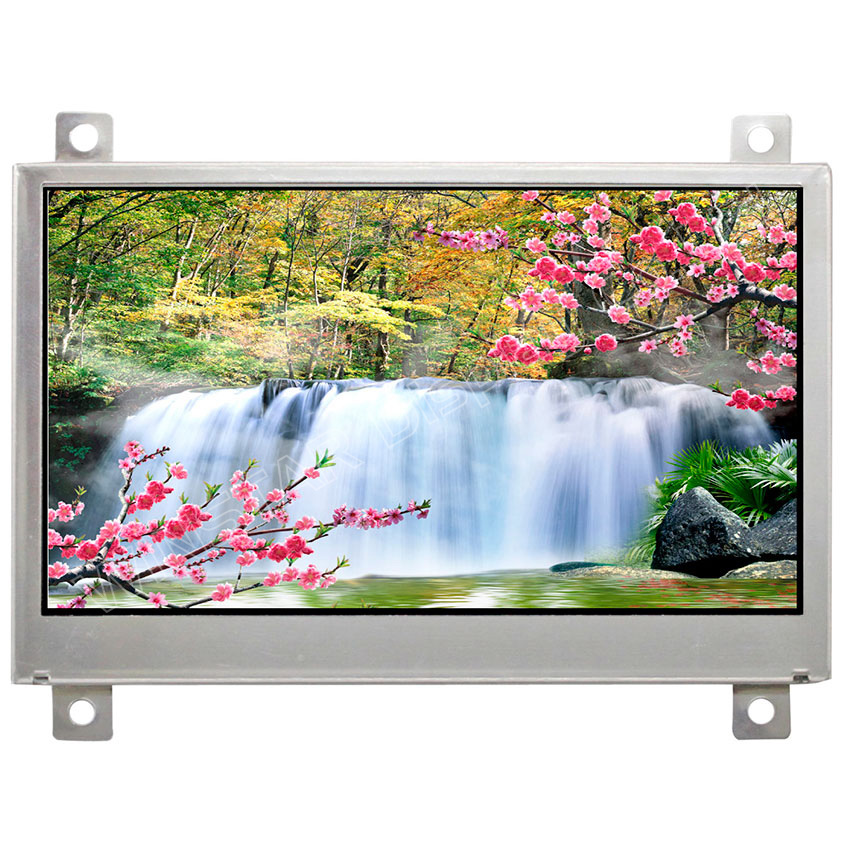

WF43-480272QD#DF4-FC

TFT 4.3" 480x272, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 400cd/m², Wide view angle (O-Film), Frame, No touch

DESCRIPTION

The Winstar TFT Q Series Modules provide the following innovative advantages to offer outstanding performance for colorful displays:

Q Series integrated a 36 pin-out connector on SSD1963 controller board and all connectors are the same direction.
Q Series modules are available in 8 bit and 16 bit parallel interface options.
The pin no. 33 ~ 36 already pre-defined as backlight supply.
Built in backlight driver IC, Q series TFT displays can be drive by 5.0V (3.5" and 4.3" also support 3.3V). The customers do not have to change the backlight driver circuits while change the TFT module sizes.
The 5.7”, 7.0”, 8.0” and 10.2” Q Series are allowed to design “Sleep Mode” to close BIAS(VGH, VGL, AVDD) low power consumption mode.
Resistive Touch Screen options are available for all Q Series display, and 4-Line signal (X1, Y1, X2, Y2) can be input from 36pin connector.
Capacitive Touch Screen options are available for all Q Series display, and the I2C read/write protocol can be input from 36pin connector.

Pin	Symbol	Function
1	GND	System round pin of the IC. Connect to system ground.
2	VDD	Power Supply : +3.3V
3	BL_E	Backlight control signal , H: On \ L: Off
4	D/C	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7~14	DB0~DB7	Data bus
15~22	DB8~DB15	Data bus (When select 8bits Mode, this pin is NC)
23~24	NC	No connection
25	CS	Chip select
26	RESET	Hardware reset
27	DIP ON	Display control H: On \ L:Off
28	NC	No connection
29	NC	No connection
30	NC	No connection
31	NC	No connection
32	YD	Bottom electrode
33~34	VLED-	VLED- for B/L LED inverter (GND)
35~36	VLED+	VLED+ for B/L LED inverter (+3.3V)

SKU: WF43-480272QD#DF4-FC

Brand: Winstar

Available: No

Accessory Kit

Price Breaks

Quantity

10+

Price

€44.80

€37.30

€31.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€44.80 excl tax
