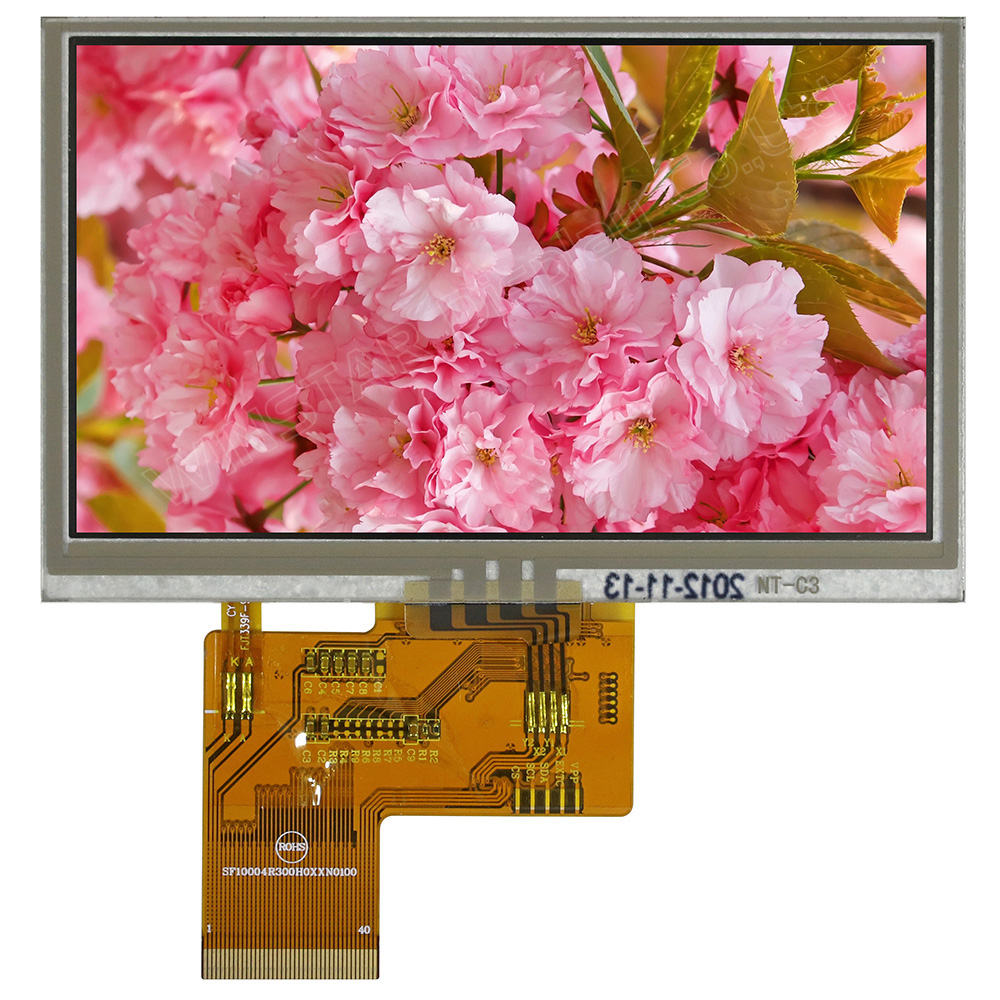

WF43-480272VD#001-FC

TFT 4.3'' 480x272, LCD Module, Interface RGB, Resistive touch panel, Default HSYNC-VSYNC, B/L 50K hours lifetime

DESCRIPTION



4.3'' TFT touch panel module. This TFT module outline dimension 105.5x67.2 mm, viewing area size 98.7x57.5 mm, active area size 95.04x53.856 mm. This 4.3" TFT LCD module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image.

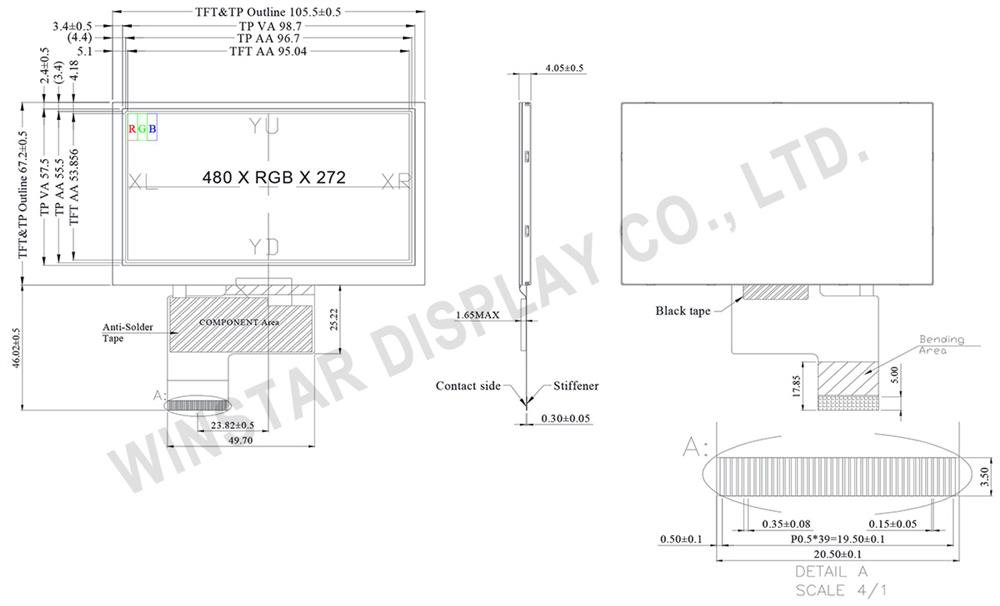

DRAWING

Winstar 4.3" Resistive Touch Panel TFT LCD - WF43VTIAEDNT0

INTERFACE

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VDD Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32 HSYNC Horizontal sync signal; negative polarity
33 VSYNC Vertical sync signal; negative polarity
34 DE Data Enable
35 NC No connection
36 GND Power ground
37 XR Right electrode
38 YD Down electrode
39 XL Left electrode
40 YU Top electrode
SKU: WF43-480272VD#001-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
50+
100+
300+
500+
Price
€25.10
€20.10
€18.30
€16.90
€15.90
€13.90
€13.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€25.10 excl tax

DESCRIPTION



4.3'' TFT touch panel module. This TFT module outline dimension 105.5x67.2 mm, viewing area size 98.7x57.5 mm, active area size 95.04x53.856 mm. This 4.3" TFT LCD module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image.


DRAWING

Winstar 4.3" Resistive Touch Panel TFT LCD - WF43VTIAEDNT0

INTERFACE

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VDD Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32 HSYNC Horizontal sync signal; negative polarity
33 VSYNC Vertical sync signal; negative polarity
34 DE Data Enable
35 NC No connection
36 GND Power ground
37 XR Right electrode
38 YD Down electrode
39 XL Left electrode
40 YU Top electrode
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.86
Color Full Color
Interface RGB
Built-in Controller No
View Angle 12H
Brightness (cd/m²) 350
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.86
Color Full Color
Interface RGB
Built-in Controller No
View Angle 12H
Brightness (cd/m²) 350
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
