WF70-800480A2D#0S1-FC

TFT 7'' 800x480, LCD Module, Interface RGB, High Brightness 600cd/m², Resistive touch panel

DESCRIPTION



7 inch High Brightness TFT LCD module with Resistive Touch Panel (RTP), resolution WVGA 800x480 pixels. This TFT model is built in with ST-5623 source driver IC and ST-5091 gate driver IC with high brightness 600 nits (typical value). This model supports RGB interface.

The supply voltage for logic (VCC) is from 3.0V to 3.6V, typical value 3.3V, Anti-Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and aspect ratio 16:9, contrast ratio 800 (typical value). Operating temperatures from -20℃ to +70 ℃ and storage temperatures from -30 to +80 ℃.

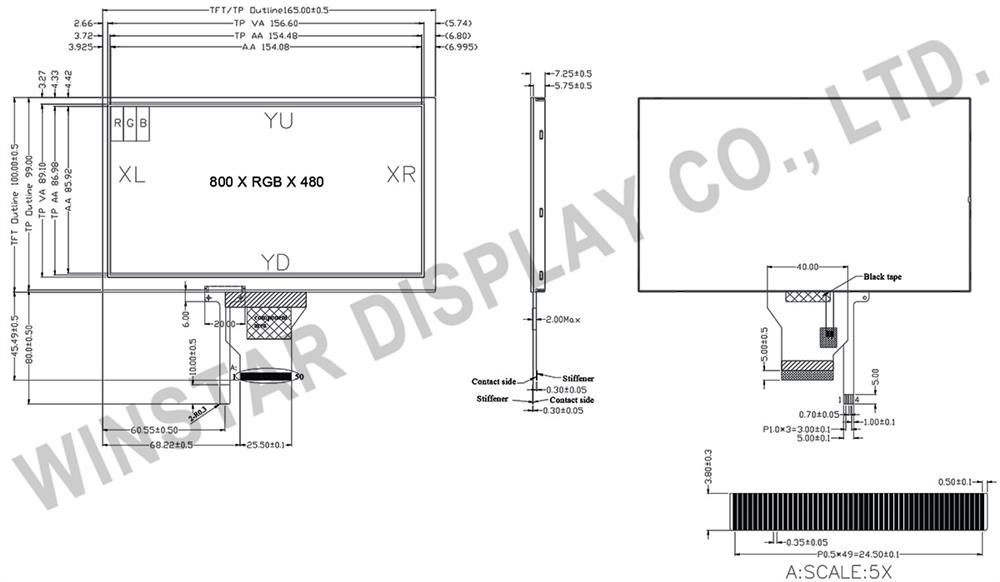

DRAWING

7"  High Brightness RTP TFT Display - WF70A2SIAGDNT0

SPECIFICATIONS



Interface

PinSymbolFunction
1~2 A Power supply for backlight
3~4 K Backlight ground
5 GND Power ground
6 VCOM Common voltage
7 VCC Power for Digital Circuit
8 MODE DE/SYNC mode select
9 DE Data Input Enable
10 VS Vertical Sync Input
11 HS Horizontal Sync Input
12 B7 Blue data(MSB)
13~18 B6~B1 Blue data
19 B0 Blue data(LSB)
20 G7 Green data(MSB)
21~26 G6~G1 Green data
27 G0 Green data(LSB)
28 R7 Red data(MSB)
29~34 R6~R1 Red data
35 R0 Red data(LSB)
36 GND Power Ground
37 DCLK Sample clock
38 GND Power Ground
39 L/R Left / right selection
40 U/D Up/down selection
41 VGH Gate ON Voltage
42 VGL Gate OFF Voltage
43 AVDD Power for Analog Circuit
44 RESET Global reset pin.
45 NC No connection
46 VCOM Common Voltage
47 DITHB Dithering function
48 GND Power Ground
49~50 NC No connection



General Specifications

ItemDimensionUnit
Size 7 inch
Dot Matrix 800 × RGB × 480  (TFT) dots
Module dimension 165 × 100.0 × 7.25 mm
Active area 154.08 × 85.92 mm
Pixel Pitch 0.1926 × 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED ,Normally White
Color arrangement RGB-STRIPE
Driver IC Source IC: ST-5623D, Gate IC: ST5091D
Touch Panel With Resistive Touch Panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For Logic VCC 3 3.3 3.6 V
Power voltage AVDD - 10.4 - V
Power Supply For Current VCC =3.3V - 4.3 - mA
Power voltage VGH 14.5 15 15.5 V
Power voltage VGL -10.5 -10 -9.5 V
Input signal voltage VCOM 3.54 4.04 4.54 V


SKU: WF70-800480A2D#0S1-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€48.10
€40.10
€36.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€48.10 excl tax

DESCRIPTION



7 inch High Brightness TFT LCD module with Resistive Touch Panel (RTP), resolution WVGA 800x480 pixels. This TFT model is built in with ST-5623 source driver IC and ST-5091 gate driver IC with high brightness 600 nits (typical value). This model supports RGB interface.

The supply voltage for logic (VCC) is from 3.0V to 3.6V, typical value 3.3V, Anti-Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and aspect ratio 16:9, contrast ratio 800 (typical value). Operating temperatures from -20℃ to +70 ℃ and storage temperatures from -30 to +80 ℃.



DRAWING

7"  High Brightness RTP TFT Display - WF70A2SIAGDNT0

SPECIFICATIONS



Interface

PinSymbolFunction
1~2 A Power supply for backlight
3~4 K Backlight ground
5 GND Power ground
6 VCOM Common voltage
7 VCC Power for Digital Circuit
8 MODE DE/SYNC mode select
9 DE Data Input Enable
10 VS Vertical Sync Input
11 HS Horizontal Sync Input
12 B7 Blue data(MSB)
13~18 B6~B1 Blue data
19 B0 Blue data(LSB)
20 G7 Green data(MSB)
21~26 G6~G1 Green data
27 G0 Green data(LSB)
28 R7 Red data(MSB)
29~34 R6~R1 Red data
35 R0 Red data(LSB)
36 GND Power Ground
37 DCLK Sample clock
38 GND Power Ground
39 L/R Left / right selection
40 U/D Up/down selection
41 VGH Gate ON Voltage
42 VGL Gate OFF Voltage
43 AVDD Power for Analog Circuit
44 RESET Global reset pin.
45 NC No connection
46 VCOM Common Voltage
47 DITHB Dithering function
48 GND Power Ground
49~50 NC No connection



General Specifications

ItemDimensionUnit
Size 7 inch
Dot Matrix 800 × RGB × 480  (TFT) dots
Module dimension 165 × 100.0 × 7.25 mm
Active area 154.08 × 85.92 mm
Pixel Pitch 0.1926 × 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED ,Normally White
Color arrangement RGB-STRIPE
Driver IC Source IC: ST-5623D, Gate IC: ST5091D
Touch Panel With Resistive Touch Panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For Logic VCC 3 3.3 3.6 V
Power voltage AVDD - 10.4 - V
Power Supply For Current VCC =3.3V - 4.3 - mA
Power voltage VGH 14.5 15 15.5 V
Power voltage VGL -10.5 -10 -9.5 V
Input signal voltage VCOM 3.54 4.04 4.54 V


Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Interface RGB
Built-in Controller No
View Angle 12H
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
