WF43-480272WD#0PW1-FC

TFT 4.3'' 480x272, LCD Module, Interface RGB, 350cd/m², Wide view angle (IPS), Super Extended Temperature, Resistive touch panel, Default HSYNC-VSYNC

DESCRIPTION

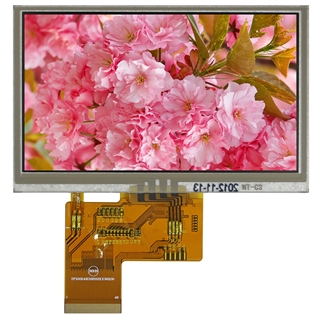

4.3 inch wide view angle IPS TFT LCD module 480x272 pixels with Resistive touch panel. This TFT model is built in with SC7283 driver IC, it supports 24-bit RGB interface, brightness 350 nits (typical value).

This 4.3” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage for LCM (VCC) is from 3.0V to 3.6V, Glare surface glass, aspect ratio 16:9, contrast ratio 800 (typical value). Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.

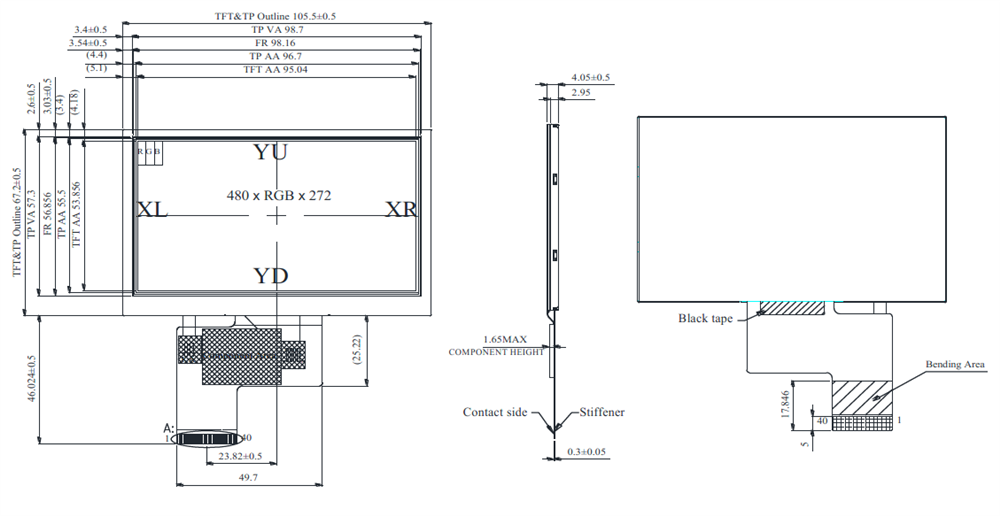

DRAWING

INTERFACE

PinSymbolFunction
1 LED- Power for LED backlight cathode
2 LED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data
13 G0 Green data
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data
21 B0 Blue data
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data
29 GND Power ground
30 CLK Pixel clock input pin
31 DISP DISP sets the display mode.
VDLKPOLFunction Description
L VSYNC polarity: positive
H YSNC polarity: negative
32 HSYNC Horizontal sync signal, default is negative polarity.
33 VSYNC Vertical sync signal, default is negative polarity.
34 DE Data input enable.
35 NC No connection
36 GND Power ground
37 XR Right electrode
38 YD Dowm electrode
39 XL Left electrode
40 YU Top electrode



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dots
Module dimension 105.4(W) × 67.1(H) mm
Active area 95.04 × 53.856 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 16:9
TFT Driver IC SC7283 or equivalent
Interface 24-bit RGB
Backlight Type LED, Normally White
Touch Panel Resistive touch panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 - 3.6 V
Supply Current For LCM ICC - 25 37.5 mA



LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current - - 20 - mA
Power Consumption - 540 640 680 mW
LED voltage VLED+ 27 32 34 V
LED Life Time - - 50,000 - Hr



SKU: WF43-480272WD#0PW1-FC
Brand: Winstar
Available: Yes

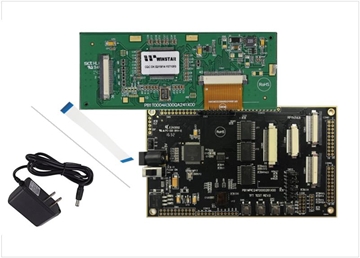

Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€30.90
€24.70
€21.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€30.90 excl tax

DESCRIPTION



4.3 inch wide view angle IPS TFT LCD module 480x272 pixels with Resistive touch panel. This TFT model is built in with SC7283 driver IC, it supports 24-bit RGB interface, brightness 350 nits (typical value).

This 4.3” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage for LCM (VCC) is from 3.0V to 3.6V, Glare surface glass, aspect ratio 16:9, contrast ratio 800 (typical value). Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.



DRAWING

INTERFACE

PinSymbolFunction
1 LED- Power for LED backlight cathode
2 LED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data
13 G0 Green data
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data
21 B0 Blue data
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data
29 GND Power ground
30 CLK Pixel clock input pin
31 DISP DISP sets the display mode.
VDLKPOLFunction Description
L VSYNC polarity: positive
H YSNC polarity: negative
32 HSYNC Horizontal sync signal, default is negative polarity.
33 VSYNC Vertical sync signal, default is negative polarity.
34 DE Data input enable.
35 NC No connection
36 GND Power ground
37 XR Right electrode
38 YD Dowm electrode
39 XL Left electrode
40 YU Top electrode



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dots
Module dimension 105.4(W) × 67.1(H) mm
Active area 95.04 × 53.856 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 16:9
TFT Driver IC SC7283 or equivalent
Interface 24-bit RGB
Backlight Type LED, Normally White
Touch Panel Resistive touch panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 - 3.6 V
Supply Current For LCM ICC - 25 37.5 mA



LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current - - 20 - mA
Power Consumption - 540 640 680 mW
LED voltage VLED+ 27 32 34 V
LED Life Time - - 50,000 - Hr
