WF50-800480FD#0SP1B-FC

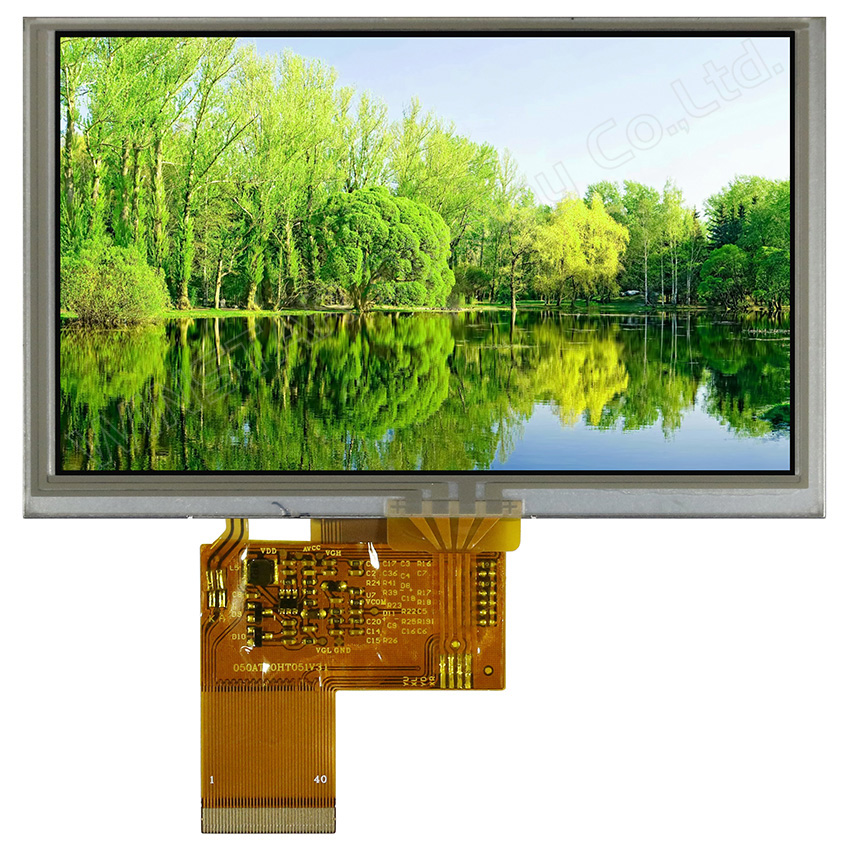

TFT 5'' 800x480, LCD Module, Interface RGB (SYNC mode), High Brightness 650cd/m², Wide view angle (IPS), Resistive touch panel

DESCRIPTION

5 inch IPS landscape mode TFT LCD module, with resolution 800x480 pixels.  Resistive touch panel on board. This module is built in with ST7262 driver IC; it supports 24 bit RGB interface, contrast ratio 1000 (typical value). High brightness version 650 nits (typical value).   This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage is from 3.0 to 3.6V, aspect ratio 16:9, normally black, transmissive LCD type, Anti-glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.

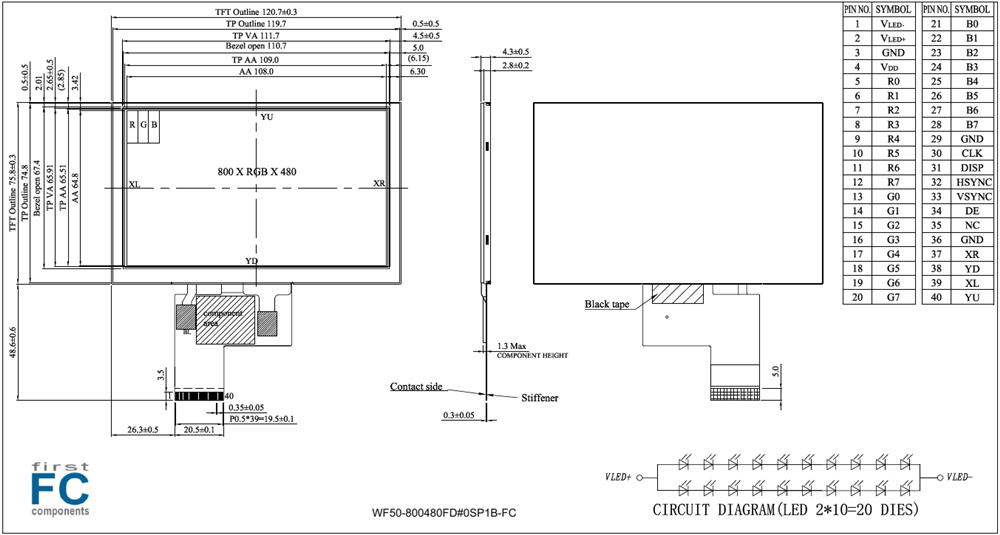

DRAWING

SKU: WF50-800480FD#0SP1B-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€47.50
€39.60
€34.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€47.50 excl tax

DESCRIPTION

5 inch IPS landscape mode TFT LCD module, with resolution 800x480 pixels.  Resistive touch panel on board. This module is built in with ST7262 driver IC; it supports 24 bit RGB interface, contrast ratio 1000 (typical value). High brightness version 650 nits (typical value).   This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage is from 3.0 to 3.6V, aspect ratio 16:9, normally black, transmissive LCD type, Anti-glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.

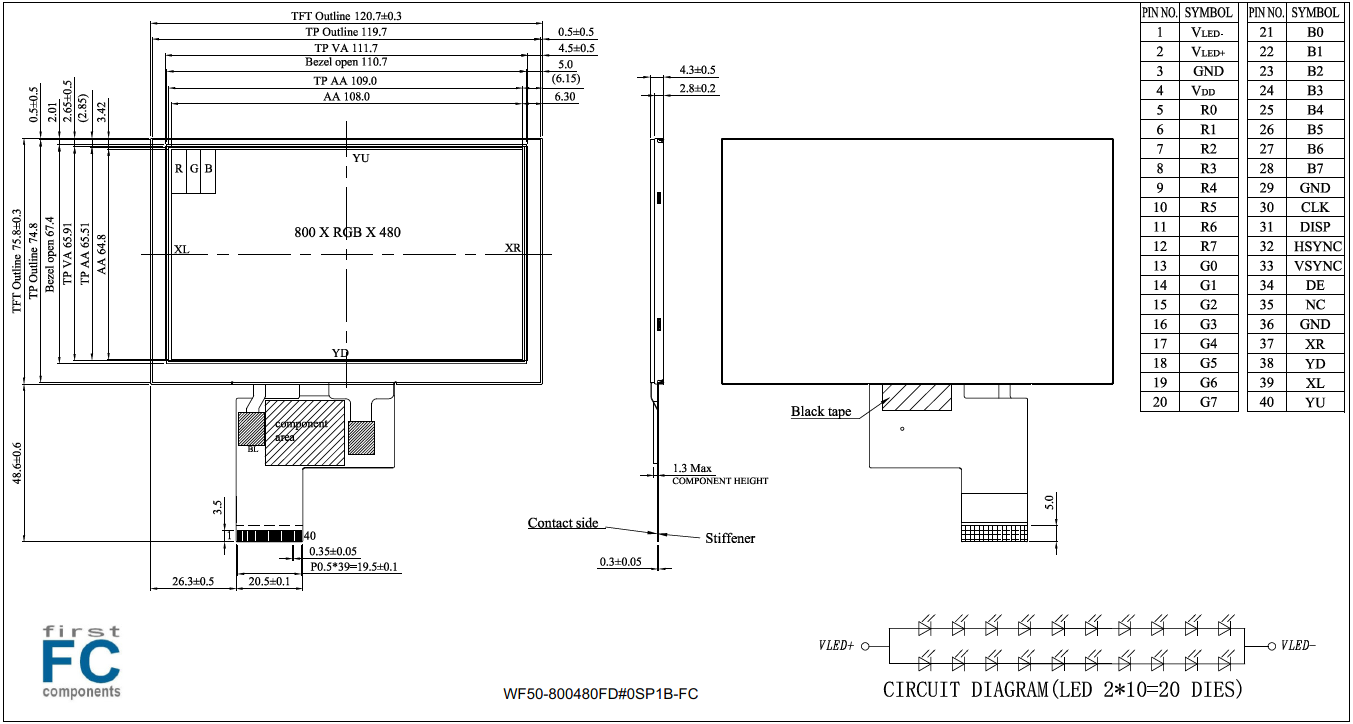

DRAWING

Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC Controller No
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC Controller No
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
