WF50-800480FD#0SPW3-FC

TFT 5'' 800x480, LCD Module, Interface RGB, High Brightness 750cd/m², Wide view angle (IPS), Super extended Temperature, Capacitive touch panel I2C interface (GG, ILI2130 IC)

DESCRIPTION

This TFT 5.0” is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This TFT LCD has a 5.0 inch diagonally measured active display area with 800x480 (800 horizontal by 480 vertical pixel) resolution.

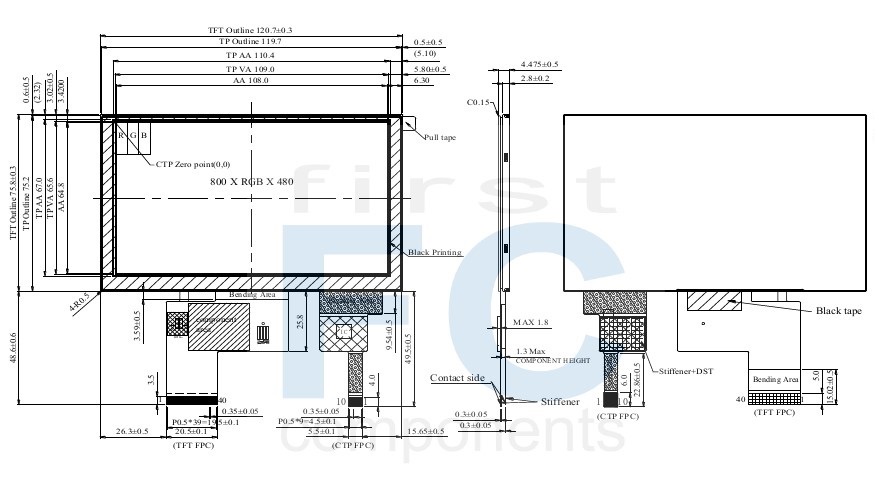

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	5.0	inch
Dot Matrix	800× 3(RGB) × 480	dots
Module dimension	120.7(W) ×75.8(H) ×4.475	mm
Active area	108(W) ×64.8 (H)	mm
Pixel pitch	0.135(W) ×0.135(H)	mm
LCD type	TFT, Normally Black, Transmissive
View Direction	80/80/80/80
Aspect Ratio	5:3
Driver IC	ST7262 or equivalent
TFT Interface	24 bit R.G.B.
Backlight Type	LED ,Normally White
CTP IC	ILI2130 or Equivalent
CTP Interface	I2C
CTP FW Version	0x07.0x00.0x00.0x00.0xA1.0x25.0x50.0x00
CTP Resolution	16384*16384
With /Without TP	With CTP
Surface	Glare

Interface

LCM PIN Definition

Pin	Symbol	Function	Remark
1	VLED-	Power for LED backlight (Cathode)
2	VLED+	Power for LED backlight (Anode)
3	GND	Power Ground
4	VDD	Power voltage
5	R0	Red data (LSB)
6	R1	Red data
7	R2	Red data
8	R3	Red data
9	R4	Red data
10	R5	Red data
11	R6	Red data
12	R7	Red data(MSB)
13	G0	Green data(LSB)
14	G1	Green data
15	G2	Green data
16	G3	Green data
17	G4	Green data
18	G5	Green data
19	G6	Green data
20	G7	Green data(MSB)
21	B0	Blue data(LSB)
22	B1	Blue data
23	B2	Blue data
24	B3	Blue data
25	B4	Blue data
26	B5	Blue data
27	B6	Blue data
28	B7	Blue data(MSB)
29	GND	Power Ground
30	CLK	Sample clock(DCLK)

31	DISP	Display on/off
32	NC	No connection
33	NC	No connection
34	DE	Data input enable
35	NC	No connection
36	GND	Power Ground
37	NC	No connection
38	NC	No connection
39	NC	No connection
40	NC	No connection

CTP PIN Definition

Pin	Symbol	Function	Remark
1	VSS	Ground for analog circuit
2	VDDT	Power Supply : +3.3V
3	SCL	I2C clock input I2C clock input
4	NC	No connect
5	SDA	I2C data input and output
6	NC	No connect
7	/RST	External Reset, Low is active
8	NC	No connect
9	/INT	External interrupt to the host
10	VSS	Ground for analog circuit

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	-	+80	°C
Storage Temperature	TST	-30	-	+80	°C

Electrical Characteristics

Item	Symbol	Values			Unit	Remark
Item	Symbol				Unit	Remark
Power voltage	VDD	3.1	3.3	3.6	V
Current for Driver(Black)	IDD	-	65	97.5	mA	VDD=3.3V
Input logic high voltage	VIH	0.7 VDD	-	VDD	V	Note 1
Input logic low voltage	VIL	0	-	0.3 VDD
Supply CTP	VDDT	3.0	3.3	3.6	V
Supply CTP	ICTP	-	51	77	mA

Optical Characteristics

Item		Symbol		Min			Unit	Remark
Response time		Tr+Tf	8=0^°、Φ=0^°	-	30	40	.ms	Note 3
Contrast ratio		CR	At optimized viewing angle	800	1000	-	-	Note 4
Color Chromaticity	White	Wx	8=0^°、Φ=0	0.27	0.32	0.37		Note 2,6,7
Color Chromaticity	White	Wy	8=0^°、Φ=0	0.295	0.345	0.395		Note 2,6,7
Viewing angle		ΘR	CR≧10	70	80	-		Note 1
		ΘL		70	80	-
		ΦT		70	80	-
		ΦB		70	80	-
Brightness		-	-	650	750	-	cd/m2	Center of display
Uniformity		(U)	-	75	-	-	%	Note5

SKU: WF50-800480FD#0SPW3-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector
Touch-Panel Connector

Price Breaks

Quantity

10+

Price

€55.40

€49.90

€42.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€55.40 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	5.0	inch
Dot Matrix	800× 3(RGB) × 480	dots
Module dimension	120.7(W) ×75.8(H) ×4.475	mm
Active area	108(W) ×64.8 (H)	mm
Pixel pitch	0.135(W) ×0.135(H)	mm
LCD type	TFT, Normally Black, Transmissive
View Direction	80/80/80/80
Aspect Ratio	5:3
Driver IC	ST7262 or equivalent
TFT Interface	24 bit R.G.B.
Backlight Type	LED ,Normally White
CTP IC	ILI2130 or Equivalent
CTP Interface	I2C
CTP FW Version	0x07.0x00.0x00.0x00.0xA1.0x25.0x50.0x00
CTP Resolution	16384*16384
With /Without TP	With CTP
Surface	Glare

Interface

LCM PIN Definition

Pin	Symbol	Function	Remark
1	VLED-	Power for LED backlight (Cathode)
2	VLED+	Power for LED backlight (Anode)
3	GND	Power Ground
4	VDD	Power voltage
5	R0	Red data (LSB)
6	R1	Red data
7	R2	Red data
8	R3	Red data
9	R4	Red data
10	R5	Red data
11	R6	Red data
12	R7	Red data(MSB)
13	G0	Green data(LSB)
14	G1	Green data
15	G2	Green data
16	G3	Green data
17	G4	Green data
18	G5	Green data
19	G6	Green data
20	G7	Green data(MSB)
21	B0	Blue data(LSB)
22	B1	Blue data
23	B2	Blue data
24	B3	Blue data
25	B4	Blue data
26	B5	Blue data
27	B6	Blue data
28	B7	Blue data(MSB)
29	GND	Power Ground
30	CLK	Sample clock(DCLK)

31	DISP	Display on/off
32	NC	No connection
33	NC	No connection
34	DE	Data input enable
35	NC	No connection
36	GND	Power Ground
37	NC	No connection
38	NC	No connection
39	NC	No connection
40	NC	No connection

CTP PIN Definition

Pin	Symbol	Function	Remark
1	VSS	Ground for analog circuit
2	VDDT	Power Supply : +3.3V
3	SCL	I2C clock input I2C clock input
4	NC	No connect
5	SDA	I2C data input and output
6	NC	No connect
7	/RST	External Reset, Low is active
8	NC	No connect
9	/INT	External interrupt to the host
10	VSS	Ground for analog circuit

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	-	+80	°C
Storage Temperature	TST	-30	-	+80	°C

Electrical Characteristics

Item	Symbol	Values			Unit	Remark
Item	Symbol				Unit	Remark
Power voltage	VDD	3.1	3.3	3.6	V
Current for Driver(Black)	IDD	-	65	97.5	mA	VDD=3.3V
Input logic high voltage	VIH	0.7 VDD	-	VDD	V	Note 1
Input logic low voltage	VIL	0	-	0.3 VDD
Supply CTP	VDDT	3.0	3.3	3.6	V
Supply CTP	ICTP	-	51	77	mA

Optical Characteristics

Item		Symbol		Min			Unit	Remark
Response time		Tr+Tf	8=0^°、Φ=0^°	-	30	40	.ms	Note 3
Contrast ratio		CR	At optimized viewing angle	800	1000	-	-	Note 4
Color Chromaticity	White	Wx	8=0^°、Φ=0	0.27	0.32	0.37		Note 2,6,7
Color Chromaticity	White	Wy	8=0^°、Φ=0	0.295	0.345	0.395		Note 2,6,7
Viewing angle		ΘR	CR≧10	70	80	-		Note 1
		ΘL		70	80	-
		ΦT		70	80	-
		ΦB		70	80	-
Brightness		-	-	650	750	-	cd/m2	Center of display
Uniformity		(U)	-	75	-	-	%	Note5

Products specifications

Brand	Winstar
Size	5"
Resolution	800x480
Active Area (mm)	108.00x64.80
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Capacitive
O. Temperature (°C)	-30~80
Display Connection	FPC per ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Touch Panel IC Controller	ILI2130
Preferred - Not Preferred	Preferred
