WF50-800480FD#0SPW0-FC

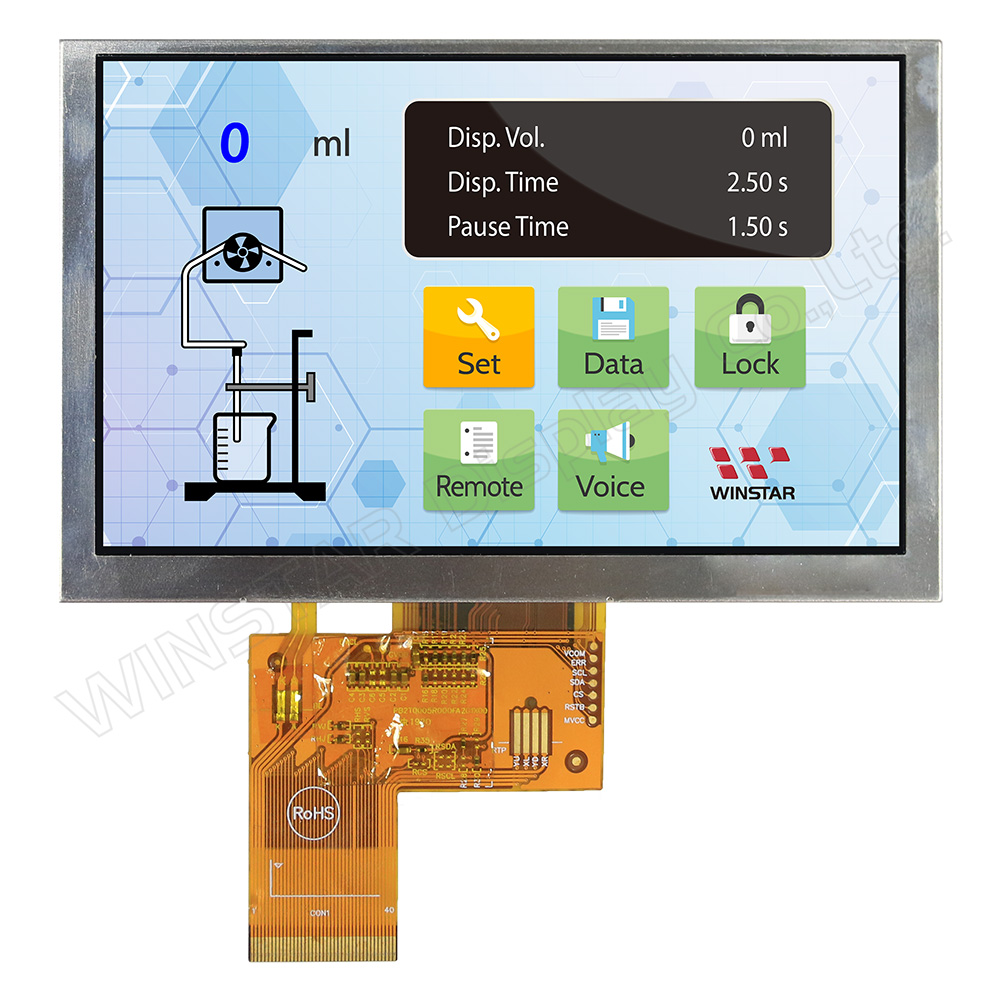

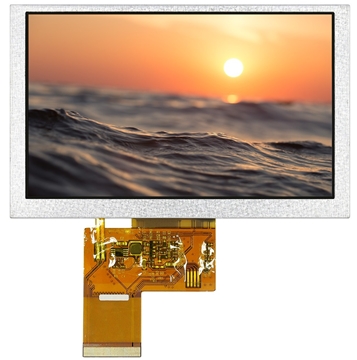

Picture of WF50-800480FD#0SPW0-FC Picture of WF50-800480FD#0SPW0-FC
TFT 5'' 800x480, LCD Module, Interface RGB, High Brightness 1000cd/m², Wide view angle (IPS), Super extended Temperature, No touch

DESCRIPTION



5 inch IPS landscape mode TFT LCD Panel, with resolution 800x480 pixels. This module is built in with ST7262 driver IC; it supports 24 bit RGB interface, contrast ratio 1000 (typical value). It is a high brightness version which is having brightness 1000 nits (typical value). This 5" IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage is from 3.0 to 3.6V, aspect ratio 16:9, normally black, transmissive LCD type, Anti-glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.



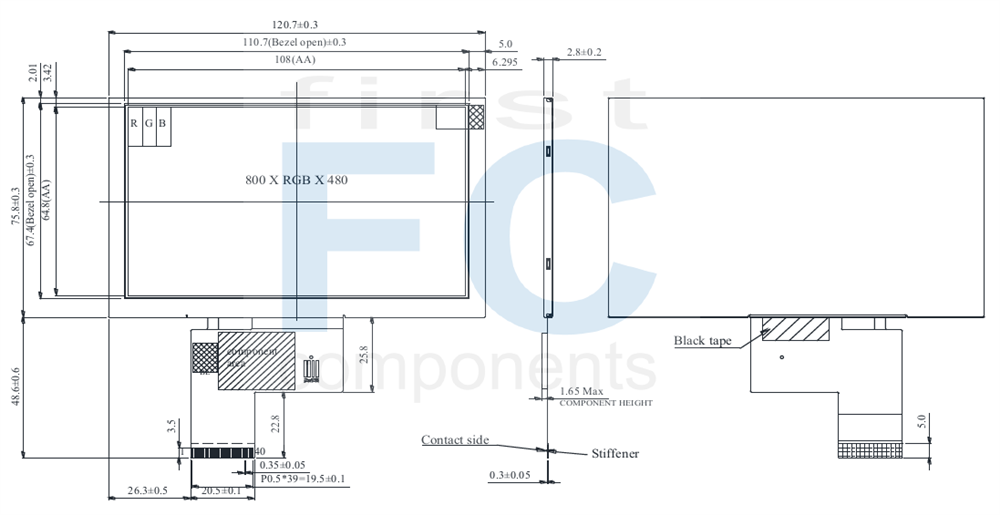

DRAWING

IPS 5, Sunlight Readable 5 inch IPS TFT LCD Panel 800x480 - WF50FSWAGDNN0



SPECIFICATIONS



Interface

LCM PIN Definition

FPC Connector is used for the module electronics interface.
PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock
31 DISP Display on/off
32 NC No connection
33 NC No connection
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection



General Specifications

ItemDimensionUnit
Size 5 inch
Dot Matrix 800 × 3(RGB) × 480 dots
Module dimension 120.7(W) × 75.8(H) × 2.8(D) mm
Active area 108(W) × 64.8 (H) mm
Dot pitch 0.135(W) × 0.135(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 16:9
TFT Driver IC ST7262 or equivalent
TFT Interface 24 bit R.G.B.
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VDD 3.0 3.3 3.6 V
Current for Driver(Black) IDD - 65 97.5 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD


SKU: WF50-800480FD#0SPW0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€37.00
€29.60
€25.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€37.00 excl tax

DESCRIPTION



5 inch IPS landscape mode TFT LCD Panel, with resolution 800x480 pixels. This module is built in with ST7262 driver IC; it supports 24 bit RGB interface, contrast ratio 1000 (typical value). It is a high brightness version which is having brightness 1000 nits (typical value). This 5" IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage is from 3.0 to 3.6V, aspect ratio 16:9, normally black, transmissive LCD type, Anti-glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.



DRAWING

IPS 5, Sunlight Readable 5 inch IPS TFT LCD Panel 800x480 - WF50FSWAGDNN0



SPECIFICATIONS



Interface

LCM PIN Definition

FPC Connector is used for the module electronics interface.
PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock
31 DISP Display on/off
32 NC No connection
33 NC No connection
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection



General Specifications

ItemDimensionUnit
Size 5 inch
Dot Matrix 800 × 3(RGB) × 480 dots
Module dimension 120.7(W) × 75.8(H) × 2.8(D) mm
Active area 108(W) × 64.8 (H) mm
Dot pitch 0.135(W) × 0.135(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 16:9
TFT Driver IC ST7262 or equivalent
TFT Interface 24 bit R.G.B.
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VDD 3.0 3.3 3.6 V
Current for Driver(Black) IDD - 65 97.5 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD


Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC Controller No
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC Controller No
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
