WF50-800480FD#BSPW3-FC

Picture of WF50-800480FD#BSPW3-FC Picture of WF50-800480FD#BSPW3-FC
TFT 5" 800x480 LCD Panel, Interface RGB, High Brightness 750cd/m², Wide view angle (IPS), Super extended Temperature, Capacitive touch panel I2C interface (GG, GT911 IC)

DESCRIPTION

Introducing the WF50-800480FD#BSPW3-FC, a remarkable 5-inch TFT LCD display module designed for optimal performance across various applications. This display boasts a winning combination of high brightness and an extensive temperature range, ensuring exceptional functionality.

Equipped with a PCAP (Projected Capacitive) touch panel featuring the GT911 IC, I2C interface, and 5-point touch technology, this 5-inch TFT display delivers a responsive and user-friendly experience.

Measuring at an outer dimension of 147 × 104 mm and an Active Area (AA) of 108.0 × 64.8 mm, this module features a 5:3 aspect ratio for an elegant display proportion. Integrated with the ST7262 driver IC and supporting a 24-bit RGB interface, along with IPS panel technology, it guarantees excellent viewing angles in all directions: Right: 80 degrees, Left: 80 degrees, Up: 80 degrees, Down: 80 degrees.

With a remarkable brightness of up to 750 nits and an outstanding contrast ratio of 1000:1, this 5-inch TFT display ensures clear and bright images in diverse environments. Operating temperature ranges from -30℃ to +80℃, making it suitable for a wide range of applications.

The WF50-800480FD#BSPW3-FC TFT display maintains a stable power supply with a VDD voltage range of 3.1V to 3.6V, featuring a typical value of 3.3V. This makes it an ideal choice for industrial control displays, medical equipment displays, inspection equipment displays, smart home appliances, and more.

Whether used indoors or outdoors, this 5-inch TFT LCD display meets diverse display requirements, serving as a versatile and high-performance solution for a wide array of applications.



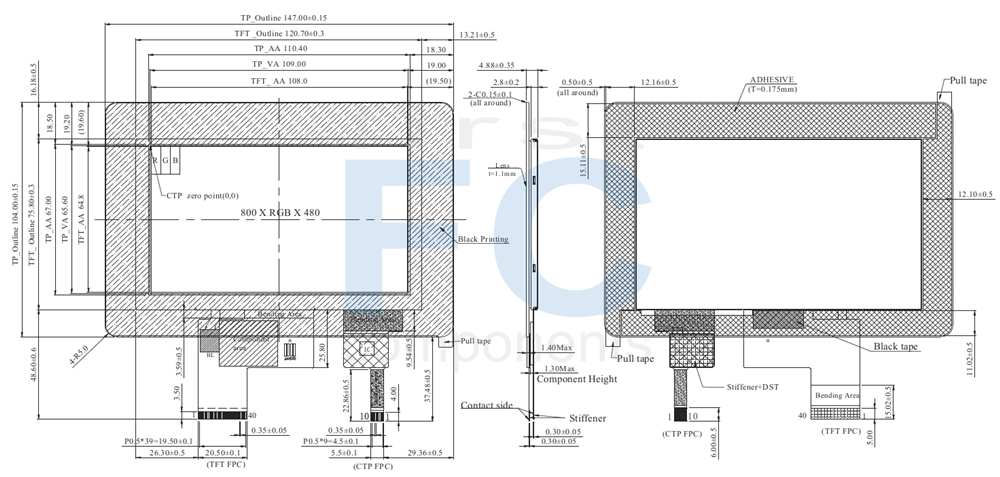

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

FPC Connector is used for the module electronics interface.

PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock(DCLK)
31 DISP Display on/off
32 NC No connection
33 NC No connection
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection


PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock input I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800 × 3(RGB) × 480 dots
Module dimension 147.0(W) × 104.0(H) × 4.88 mm
Active area 108(W) × 64.8(H) mm
Dot pitch 0.135(W) × 0.135(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 5:3
Driver IC ST7262 or equivalent
TFT Interface 24-bit RGB
Backlight Type LED, Normally White
PCAP IC GT911 or equivalent
PCAP Interface I2C
PCAP FW Version 65
PCAP Resolution 800*480
Touch Screen Projected Capacitive Touch Screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolValuesUnit
MinTypMax
Power voltage VDD 3.1 3.3 3.6 V
Current for Driver (Black) IDD - 65 97.5 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD
Supply PCAP VDDT 2.8 - 3.3 V
ICTP － 15 22.5 mA





SKU: WF50-800480FD#BSPW3-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€45.10
€37.60
€31.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€45.10 excl tax

DESCRIPTION

Introducing the WF50-800480FD#BSPW3-FC, a remarkable 5-inch TFT LCD display module designed for optimal performance across various applications. This display boasts a winning combination of high brightness and an extensive temperature range, ensuring exceptional functionality.

Equipped with a PCAP (Projected Capacitive) touch panel featuring the GT911 IC, I2C interface, and 5-point touch technology, this 5-inch TFT display delivers a responsive and user-friendly experience.

Measuring at an outer dimension of 147 × 104 mm and an Active Area (AA) of 108.0 × 64.8 mm, this module features a 5:3 aspect ratio for an elegant display proportion. Integrated with the ST7262 driver IC and supporting a 24-bit RGB interface, along with IPS panel technology, it guarantees excellent viewing angles in all directions: Right: 80 degrees, Left: 80 degrees, Up: 80 degrees, Down: 80 degrees.

With a remarkable brightness of up to 750 nits and an outstanding contrast ratio of 1000:1, this 5-inch TFT display ensures clear and bright images in diverse environments. Operating temperature ranges from -30℃ to +80℃, making it suitable for a wide range of applications.

The WF50-800480FD#BSPW3-FC TFT display maintains a stable power supply with a VDD voltage range of 3.1V to 3.6V, featuring a typical value of 3.3V. This makes it an ideal choice for industrial control displays, medical equipment displays, inspection equipment displays, smart home appliances, and more.

Whether used indoors or outdoors, this 5-inch TFT LCD display meets diverse display requirements, serving as a versatile and high-performance solution for a wide array of applications.



DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

FPC Connector is used for the module electronics interface.

PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock(DCLK)
31 DISP Display on/off
32 NC No connection
33 NC No connection
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection


PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock input I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800 × 3(RGB) × 480 dots
Module dimension 147.0(W) × 104.0(H) × 4.88 mm
Active area 108(W) × 64.8(H) mm
Dot pitch 0.135(W) × 0.135(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 5:3
Driver IC ST7262 or equivalent
TFT Interface 24-bit RGB
Backlight Type LED, Normally White
PCAP IC GT911 or equivalent
PCAP Interface I2C
PCAP FW Version 65
PCAP Resolution 800*480
Touch Screen Projected Capacitive Touch Screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolValuesUnit
MinTypMax
Power voltage VDD 3.1 3.3 3.6 V
Current for Driver (Black) IDD - 65 97.5 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD
Supply PCAP VDDT 2.8 - 3.3 V
ICTP － 15 22.5 mA





Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
