Pin

Symbol

Function

Remark

1

NC

No connection

2

5V

Raspberry Pi:Power 5V

3

GPIO02

Raspberry Pi:GPIO02

4

5V

Raspberry Pi:Power 5V

5

GPIO03

Raspberry Pi:GPIO03

6

GND

Raspberry Pi:GND

7

GPIO04

Raspberry Pi:GPIO04

8

GPIO14

Raspberry Pi:GPIO14

9

GND

Raspberry Pi:GND

10

GPIO15

Raspberry Pi:GPIO15

11

GPIO17

Raspberry Pi:GPIO17

12

GPIO18

Raspberry Pi:GPIO18 (Backlight Enable)

13

GPIO27

Raspberry Pi:GPIO27

14

GND

Raspberry Pi:GND

15

GPIO22

Raspberry Pi:GPIO22

16

GPIO23

Raspberry Pi:GPIO23

17

NC

No connection

18

GPIO24

Raspberry Pi:GPIO24

19

GPIO10

Raspberry Pi:GPIO10

20

GND

Raspberry Pi:GND

21

GPIO09

Raspberry Pi:GPIO09

22

GPIO25

Raspberry Pi:GPIO25

23

GPIO11

Raspberry Pi:GPIO11

24

GPIO08

Raspberry Pi:GPIO08

25

GND

Raspberry Pi:GND

26

GPIO07

Raspberry Pi:GPIO07

27

ID_SD

Raspberry Pi:ID_SD

28

ID_SC

Raspberry Pi:ID_SC

29

GPIO05

Raspberry Pi:GPIO05

30

GND

Raspberry Pi:GND

31

GPIO06

Raspberry Pi:GPIO06

32

GPIO12

Raspberry Pi:GPIO12

33

GPIO13

Raspberry Pi:GPIO13

34

GND

Raspberry Pi:GND

35

GPIO19

Raspberry Pi:GPIO19

36

GPIO16

Raspberry Pi:GPIO16

37

GPIO26

Raspberry Pi:GPIO26

38

GPIO20

Raspberry Pi:GPIO20

39

GND

Raspberry Pi:GND

40

GPIO21

Raspberry Pi:GPIO21

Pin

Symbol

Function

Remark

1

3.3V

TFT Module Power limit can only output 3.3V,100mA

Note1

2

5V

Raspberry Pi:Power 5V

3

GPIO02

Raspberry Pi:GPIO02

4

5V

Raspberry Pi:Power 5V

5

GPIO03

Raspberry Pi:GPIO03

6

GND

Raspberry Pi:GND

7

GPIO04

Raspberry Pi:GPIO04

8

GPIO14

Raspberry Pi:GPIO14

9

GND

Raspberry Pi:GND

10

GPIO15

Raspberry Pi:GPIO15

11

GPIO17

Raspberry Pi:GPIO17

12

GPIO18

Raspberry Pi:GPIO18 (Backlight Enable)

13

GPIO27

Raspberry Pi:GPIO27

14

GND

Raspberry Pi:GND

15

GPIO22

Raspberry Pi:GPIO22

16

GPIO23

Raspberry Pi:GPIO23

17

3.3V

TFT Module Power limit can only output 3.3V,100mA

Note1

18

GPIO24

Raspberry Pi:GPIO24

19

GPIO10

Raspberry Pi:GPIO10

20

GND

Raspberry Pi:GND

21

GPIO09

Raspberry Pi:GPIO09

22

GPIO25

Raspberry Pi:GPIO25

23

GPIO11

Raspberry Pi:GPIO11

24

GPIO08

Raspberry Pi:GPIO08

25

GND

Raspberry Pi:GND

26

GPIO07

Raspberry Pi:GPIO07

27

ID_SD

Raspberry Pi:ID_SD

28

ID_SC

Raspberry Pi:ID_SC

29

GPIO05

Raspberry Pi:GPIO05

30

GND

Raspberry Pi:GND

31

GPIO06

Raspberry Pi:GPIO06

32

GPIO12

Raspberry Pi:GPIO12

33

GPIO13

Raspberry Pi:GPIO13

34

GND

Raspberry Pi:GND

35

GPIO19

Raspberry Pi:GPIO19

36

GPIO16

Raspberry Pi:GPIO16

37

GPIO26

Raspberry Pi:GPIO26

38

GPIO20

Raspberry Pi:GPIO20

39

GND

Raspberry Pi:GND

40

GPIO21

Raspberry Pi:GPIO21

Pin

Symbol

Function

Remark

1

5V

Power 5V

2

D-

Data line -

3

D+

Data line +

4

NC

No connection

5

GND

Power Ground

Pin No.

Symbol

I/O

Function

Remark

1

Rx2+

I

+LVDS Differential Data Input

2

GND

P

Ground

3

Rx2-

I

-LVDS Differential Data Input

4

Rx1+

I

+LVDS Differential Data Input

5

GND

P

Ground

6

Rx1-

I

-LVDS Differential Data Input

7

Rx0+

I

+LVDS Differential Data Input

8

GND

P

Ground

9

Rx0-

I

-LVDS Differential Data Input

10

RxC+

I

+LVDS Differential Clock Input

11

GND

P

Ground

12

RxC-

I

-LVDS Differential Clock Input

13-14

NC

-

No connection

15

SCL

I/O

DDC(Data Display Channel) Clock

16

SDA

I/O

DDC(Data Display Channel) Data

17

GND

P

Ground

18

5V

P

Power Supply

19

Detect

I/O

Hot plug detect

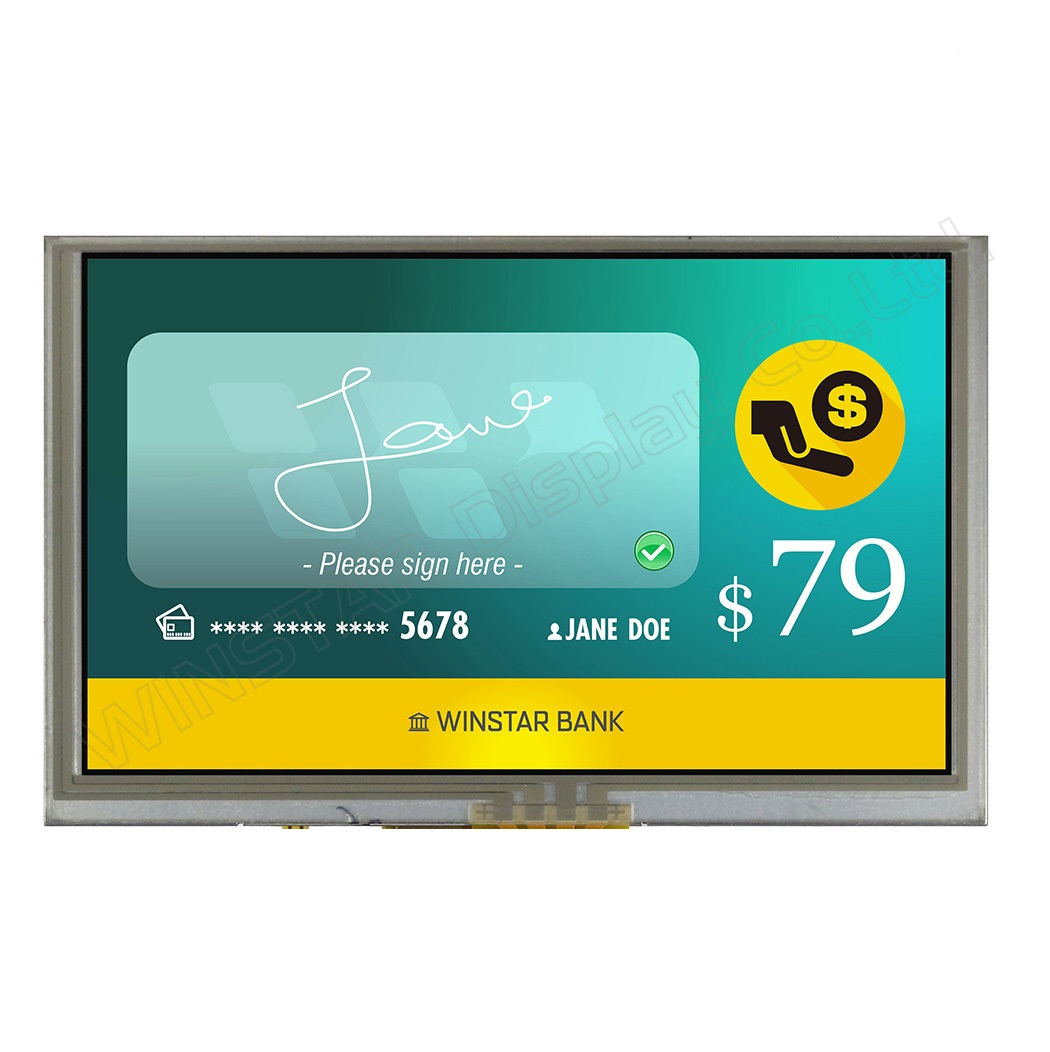

Item

Dimension

Unit

Size

5.0

inch

Dot Matrix

800 × 3(RGB) × 480

dots

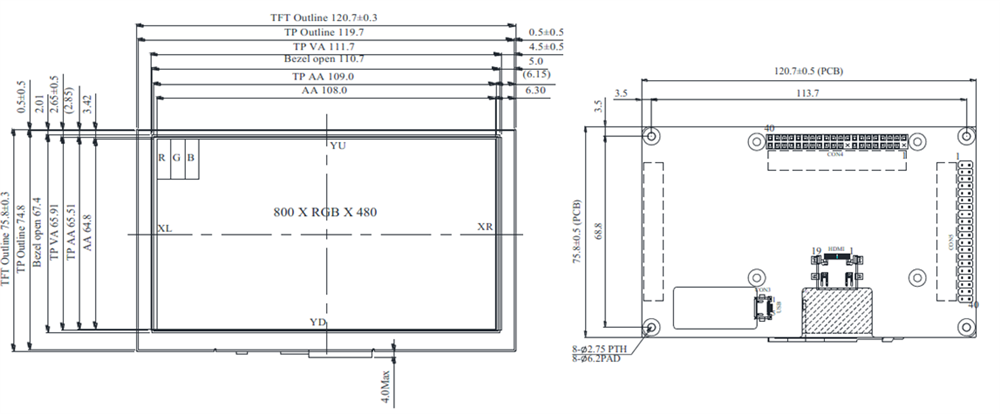

Module dimension

120.7 x 75.8 x 23.0 (Max)

mm

Active area

108.0 x 64.8

mm

Dot pitch

0.135 x 0.135

mm

LCD type

TFT, Normally Black, Transmissive

View Direction

80/80/80/80

Aspect Ratio

16:9

Backlight Type

LED, Normally White

Controller IC

TFP401

Interface

HDMI(only for DVI)

With /Without TP

With RTP(USB)

Surface

Anti-Glare

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature

TOP

-20

-

+70

°C

Storage Temperature

TST

-30

-

+80

°C
