WL0F0007000A8GAACSA00-FC

TFT 7" 1024x600, CAN Bus interface with CUSTOMIZABLE CAN ID, 450cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)

DESCRIPTION



NEW 2nd generation 7” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages.



  1.        +12V power supply input, the power consumption is around 6W.
  2.        Self testing after booting function.
  3.        CAN bus communication interface.
  4.        Support Custom CAN ID protocol, default baud rate is 250KB.
  5.        Built in flash memory, store the font and Object Dictionary Data.
  6.        Support capacitive touch panel (CTP).
  7.        Embedded buzzer controlled by Master Device.
  8.        HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  9.        Design the UI without writing a line of code by winstar GUI builder! (►Link to GUI Builder Introduction)



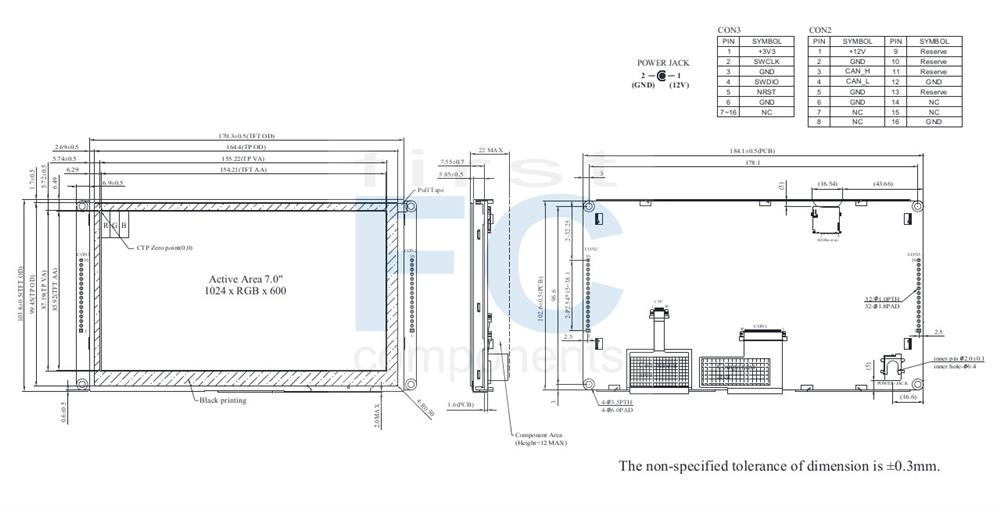

DRAWING



SPECIFICATIONS



General Specifications

Item

Standard Value

Unit

Operating voltage

5~16V

Vdc

Communication Interface

CAN bus

N/A

MCU

STM32F746 216MHz

N/A

Flash Memory

16

MB

SDRAM Frequency

166

MHz

LCD display size

7.0

inch

Dot Matrix

1024 x RGBx600(TFT)

dot

Module dimension

169.9(W) x 103.4(H) x 5.6(D)

mm

Active area

154.2144 x 85.92

mm

Dot pitch

0.1506 x 0.1432

mm

Brightness

Min: 400; Typ: 450

cd/m2

LCD type

TFT, Normally Black, Transmissive

View Direction

85/85/85/85

Aspect Ratio

16:9

With /Without TP

With CTP

Surface

Glare



Absolute Maximum Ratings

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature

TOP

-20

-

+70

°C

Storage Temperature

TST

-30

-

+80

°C



Electrical Characteristics

Item

Symbol

Condition

Min

Typ

Max

Unit

Supply Voltage

VCI

-

8

12

16

V

Supply current

I(mA)

-

-

490

-

mA



BOM

Item

Description

Remark

LCM

WF70-1024600A8L#BP3-FC



PCBA

SV10007R00AAA00N0100





Interface Pin Function

CON2 definition

Pin

Symbol

Function

Remark

1

+12V

Power supply12V input

Input

2

GND

Power supply GND input

Input

3

CAN_High

CAN bus D+

I/O

4

CAN_Low

CAN bus D-

I/O

5

GND

Power supply GND input

Input

6

GND

Power supply GND input

Input

7

NC

_

_

8

NC

_

_

9

Reserve

_

_

10

Reserve

USART RX interface(Reserve)

Reserve

11

Reserve

USART TX interface(Reserve)

Reserve

12

GND

GND

GND

13

Reserve

_

_

14

NC

_

_

15

NC

_

_

16

GND

GND

GND



CON3 definition

Pin

Symbol

Function

Remark

1

+3V3

3.3V power for JTAG interface

Output

2

SWCLK

CLK pin for JTAG interface

Input

3

GND

GND for JTAG interface

Output

4

SWDIO

Data pin for JTAG interface

I/O

5

NRST

Reset pin for JTAG interface

Input

6

GND

GND

Output

7~16

NC

_

_



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

Schermata iniziale

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection



Example Screen Layout

Example Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC



Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01



Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01

SKU: WL0F0007000A8GAACSA00-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€138.70
€136.40
€134.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€138.70 excl tax
