Pin

Symbol

Function

Remark

1

GND

System ground pin of the IC .Connect to system ground.

2

VDD

Power Supply : +3.3V

3

BLE

Backlight control signal , H: On \ L: Off

4

D/C

Data/Command select

5

WR

Write strobe signal

6

RD

Read strobe signal

7

DB0

Data bus

8

DB1

Data bus

9

DB2

Data bus

10

DB3

Data bus

11

DB4

Data bus

12

DB5

Data bus

13

DB6

Data bus

14

DB7

Data bus

15

DB8

Data bus (When select 8bits Mode, this pin is NC)

Note1

16

DB9

Data bus (When select 8bits Mode, this pin is NC)

Note1

17

DB10

Data bus (When select 8bits Mode, this pin is NC)

Note1

18

DB11

Data bus (When select 8bits Mode, this pin is NC)

Note1

19

DB12

Data bus (When select 8bits Mode, this pin is NC)

Note1

20

DB13

Data bus (When select 8bits Mode, this pin is NC)

Note1

21

DB14

Data bus (When select 8bits Mode, this pin is NC)

Note1

22

DB15

Data bus (When select 8bits Mode, this pin is NC)

Note1

23

NC

No connect

24

NC

No connect

25

CS

Chip select

26

RESET

Hardware reset

27

LR

Left / right selection; Default L/R=H

Note 2,3

28

UD

Up/down selection; ; Default U/D=L

Note 2,3

29

NC

No connect

30

NC

No connect

31

NC

No connect

32

NC

No connect

33

VLED-

Power for LED Driver IC(GND)

34

VLED-

Power for LED Driver IC(GND)

35

VLED+

Power for LED Driver IC(+5V)

36

VLED+

Power for LED Driver IC(+5V)

Item

Dimension

Unit

Size

5.7

inch

Dot Matrix

320 x RGBx240(TFT)

dots

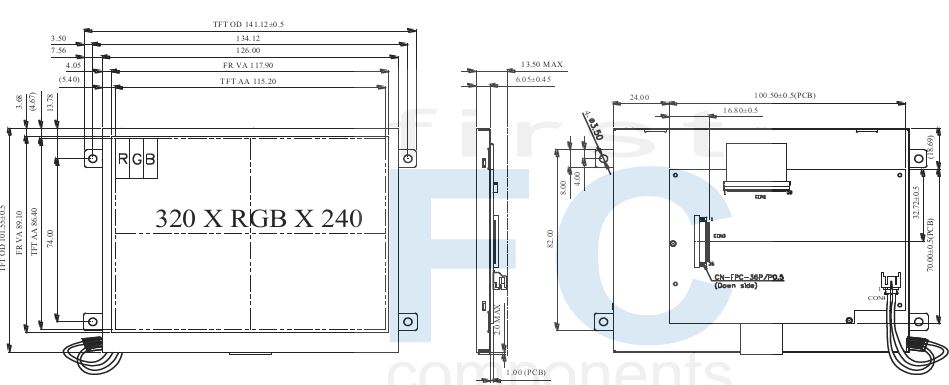

Module dimension

141.12x 101.55 x 13.5

mm

Active area

115.2 x 86.4

mm

Dot pitch

0.12 x 0.36

mm

LCD type

TFT, Normally White, Transmissive

View Direction

12 o’clock

Gray Scale Inversion Direction

6 o’clock

Aspect Ratio

4:3

Backlight Type

LED ,Normally White

Controller IC

SSD1963

Interface

Digital 8080 family MPU 8bit/16bit

With /Without TP

Without TP

Surface

Glare

Item

Symbol

Min

Typ

Max

Unit

Remark

Supply Voltage For LCM

VDD

3.0

3.1

3.3

V

-

Supply Current For LCM

IDD

-

400

600

mA

Note1

Parameter

Symbol

Unit

Remark

Operation Current For LED Driver

VLED=5V

-

370

555

mA

Note 1,2

Power Consumption

VLED=5V

-

1850

2775

mW

Note 1,2

Supply Voltage For LED Driver

VLED+

-

5

-

V

-

LED Life Time

-

-

50,000

-

Hr

Note 2,3,4

Item

Symbol

Min

Unit

Remark

Response time

Tr+Tf

8=0^°        Φ=0^°

25

-

.ms

Note 3

Contrast ratio

CR

At optimized
viewing angle

-

300

-

-

Note 4

Color

Chromaticity

White

Wx

8=0^°         Φ=0

0.267

0.317

0.367

-

Note

2,6,7

Wy

0.303

0.353

0.403

-

Viewing angle (Gray Scale Inversion Direction)

ΘR

CR≧10

-

60

-

Note 1

ΘL

-

60

-

ΦT

-

70

-

ΦB

-

70

-

Brightness

-

-

800

900

-

cd/m2

Center of display

Uniformity

(U)

-

75

-

-

%

Note 5
