Pin No.

Symbol

Description

Remark

1

GND

System ground pin of the IC.Connect to system ground.

2

VDD

Power Supply : +3.3V

3

NC

No connection

4

D/C

Data/Command select

5

WR

Write strobe signal

6

RD

Read strobe signal

7

DB0

Data bus

8

DB1

Data bus

9

DB2

Data bus

10

DB3

Data bus

11

DB4

Data bus

12

DB5

Data bus

13

DB6

Data bus

14

DB7

Data bus

15

CS

Chip select

16

RST

Hardware reset

Note 1

17

NC

No connection

18

RL

Left /right selection; Scan Direction; Default RL=H

Note 2,3

19

UD

Up/down selection; Scan Direction; Default UD=L

Note 2,3

20

NC

No connection

Item

Dimension

Unit

Size

5.7

inch

Dot Matrix

320 x RGBx240(TFT)

dots

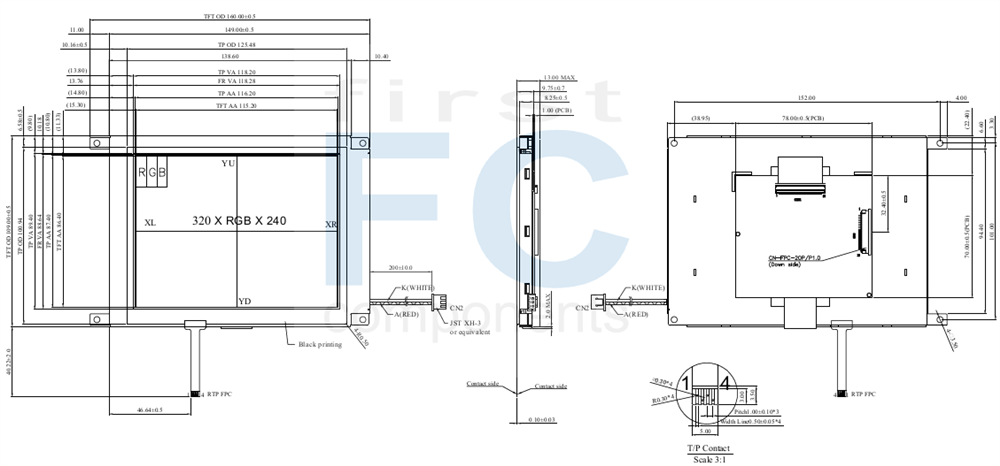

Module dimension

160(W) x 109(H) x13.9 max(D)

mm

Active area

115.2 x 86.40

mm

Dot pitch

0.12 x 0.36

mm

LCD type

TFT, Normally White, Transmissive

View Direction

12 o’clock

Gray Scale Inversion Direction

6 o’clock

Aspect Ratio

4:3

Backlight Type

LED,Normally White

Controller IC

SSD1963

Interface

Digital 8080 family MPU

With /Without TP

With RTP

Surface

Anti-Glare

Item

Symbol

Condition

Min

Typ

Max

Unit

Remark

Supply Voltage For LCM

VDD

-

3.0

3.3

3.6

V

-

Supply Current For LCM

IDD

-

-

120

180

mA

Note1

Parameter

Symbol

Unit

Remark

LED current

-

140

-

mA

Power Consumption

1260

-

1470

mW

LED voltage

VBL+

9.0

-

10.5

V

Note 1

LED Life Time

-

50,000

-

Hr

Note 2,3,4

Item

Symbol

Min

Unit

Remark

Response time

Tr+Tf

8=0°、Φ=0°

25

-

.ms

Note 3

Contrast ratio

CR

At optimized
viewing angle

-

300

-

-

Note 4

Color

Chromaticity

White

Wx

8=0°、Φ=0

0.267

0.317

0.367

Note

2,6,7

Wy

0.303

0.353

0.403

Viewing angle
(Gray Scale
Inversion
Direction)

ΘR

CR≧10

-

60

-

Note 1

ΘL

-

60

-

ΦT

-

70

-

ΦB

-

70

-

Brightness

-

-

300

350

-

cd/m2

Center of
display

Uniformity

(U)

-

75

-

-

%

Note 5
