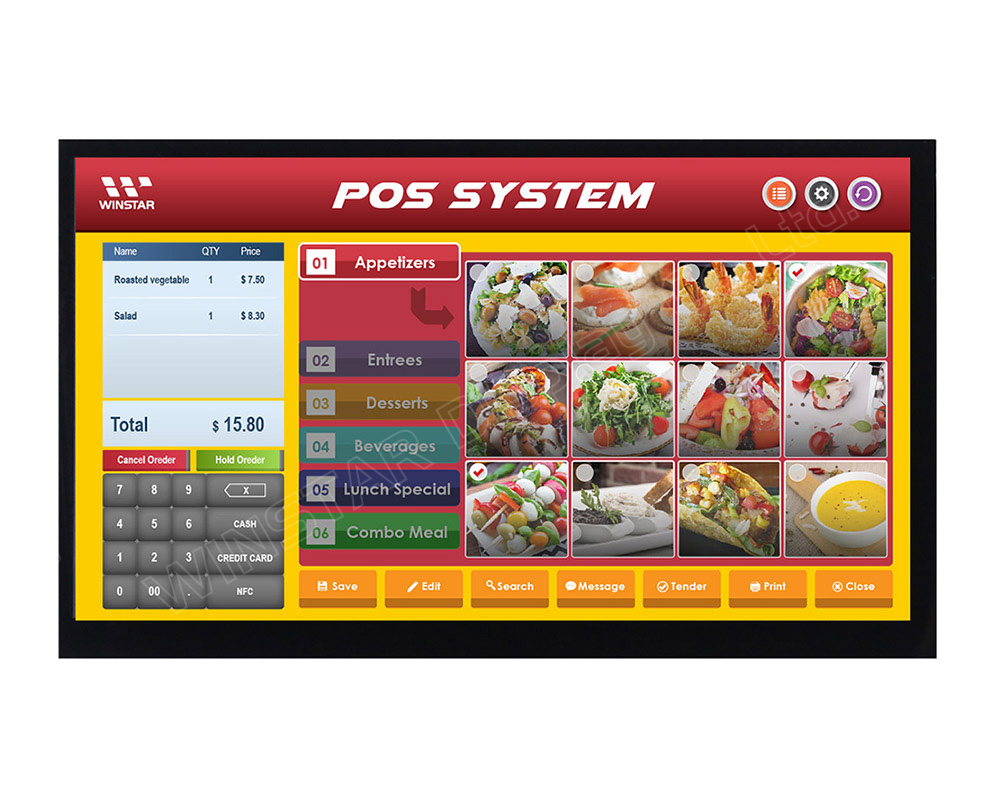

WF70-1024600A7H#V03-FC

TFT 7'' 1024x600, HDMI / Raspberry, Interface HDMI IC TFP401, 450cd/m², Incl. 2 connectors, Capacitive touch panel (GG), Suitable for Raspberry Pi 1~3 & Pi3B+ versions

DESCRIPTION



Winstar 7" medium-sized supporting for HDMI signal display, made of high resolution 1024x600 dots. This 7 inch TFT Display comes with a board which supports HDMI signal interface and a 40-pin connector on it; it is designed to make Raspberry Pi usage become easily. This TFT display has a USB interface Capacitive touch panel overlay on TFT panel. We designed a connector part no. WWHDMI-00# for option, the customers can use it to connect the module with your Raspberry Pi directly.

You can simply use this medium-sized TFT display with your Raspberry Pi, and also you can use it as computer display with any device which supports HDMI signal output. This 7" TFT model comes in 1024x600 resolutions that is high quality and would be good for embedded computing usage. Please note, this part no. does not include a HDMI connector or USB cable.



Features:

  • Good touch response
  • Fast response time
  • Not only for Raspberry Pi
  • Not only for mini-PCs, it can work as a computer monitor
  • Support RTP with USB interface
  • Without Touch panel option is available

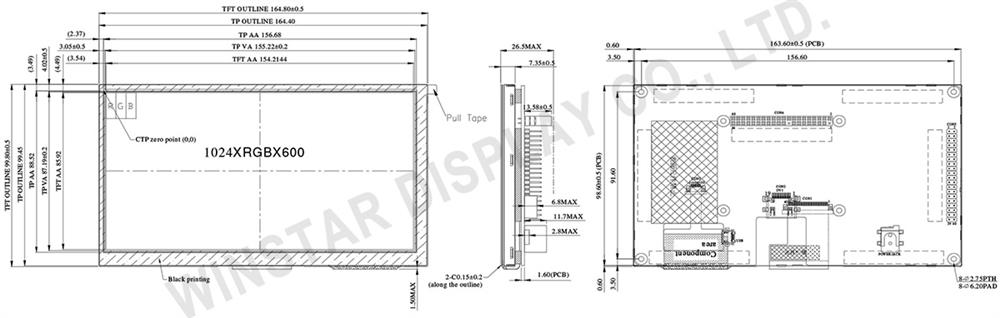

DRAWING

7 inch HDMI TFT Display with Capacitive Touch Screen - WF70A7TIFHLHGV



SPECIFICATIONS


Interface

1. LCM PIN Definition(CON6)

PinSymbolFunction
1 NC No connection
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 GPIO18 Raspberry Pi:GPIO18 (Backlight Enable)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 NC No connection
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


2. LCM PIN Definition (CON5)

PinSymbolFunction
1 3.3V TFT Module Power limit can only output 3.3V,100mA
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 GPIO18 Raspberry Pi:GPIO18 (Backlight Enable)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 3.3V TFT Module Power limit can only output 3.3V,100mA
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


3. USB

PinSymbolFunction
1 5V Power Supply (5V)
2 D- Data line -
3 D+ Data line +
4 NC No connection
5 GND Power Ground


4. POWER JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC   No connection


5. HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
I: input, O: output, P: Power


General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 1024 x RGB x 600(TFT) dots
Module dimension 164.8(W) x 99.8(H) x 26.5 (D) mm
Active area 154.2144 x 85.92 mm
Dot pitch 0.1506 x 0.1432 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o’clock
Gray Scale Inversion Direction 6 o’clock
Aspect Ratio 16:9
Controller IC TFP401 or equivalent
Backlight Type LED, Normally White
TFT Interface Support HDMI Connector (Only DVI Signal)
PCAP IC FT5426 or Equivalent
PCAP Interface USB
PCAP FW Version 03
Touch Screen Projected Capacitive Touch Screen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD 4.9 5 5.1 V
Supply Current For LCM IDD 870 1200 mA
LED life time 50,000 Hr
SKU: WF70-1024600A7H#V03-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€90.70
€89.20
€82.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€90.70 excl tax
