WF70-2801424C3M#0P0-FC

Picture of WF70-2801424C3M#0P0-FC Picture of WF70-2801424C3M#0P0-FC
TFT 7" 280×1424, Bar Type, LCD + IC Controller, Interface 4-Lanes MIPI IC OTA7290B , 550 cd/m², Wide view angle (IPS), No Frame, No touch



DESCRIPTION

WF70-2801424C3M#0P0-FC is a 7-inch Bar Type IPS TFT LCD with excellent visual effects. The module's outline dimensions are 38.2 × 186.62mm with a resolution of 280×1424 pixels. This product uses OTA7290B driver IC and supports the MIPI DSI interface, providing excellent stability and reliability. The display has a wide viewing angle of left 80/right 80/upper 80/lower 80 degrees and an aspect ratio of 1:5, and it supports a 3.3V (typical) power supply. The surface is treated with Anti-Glare, enhancing the visual quality and user experience.

This module can be operated at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. The PCAP touch option is available.

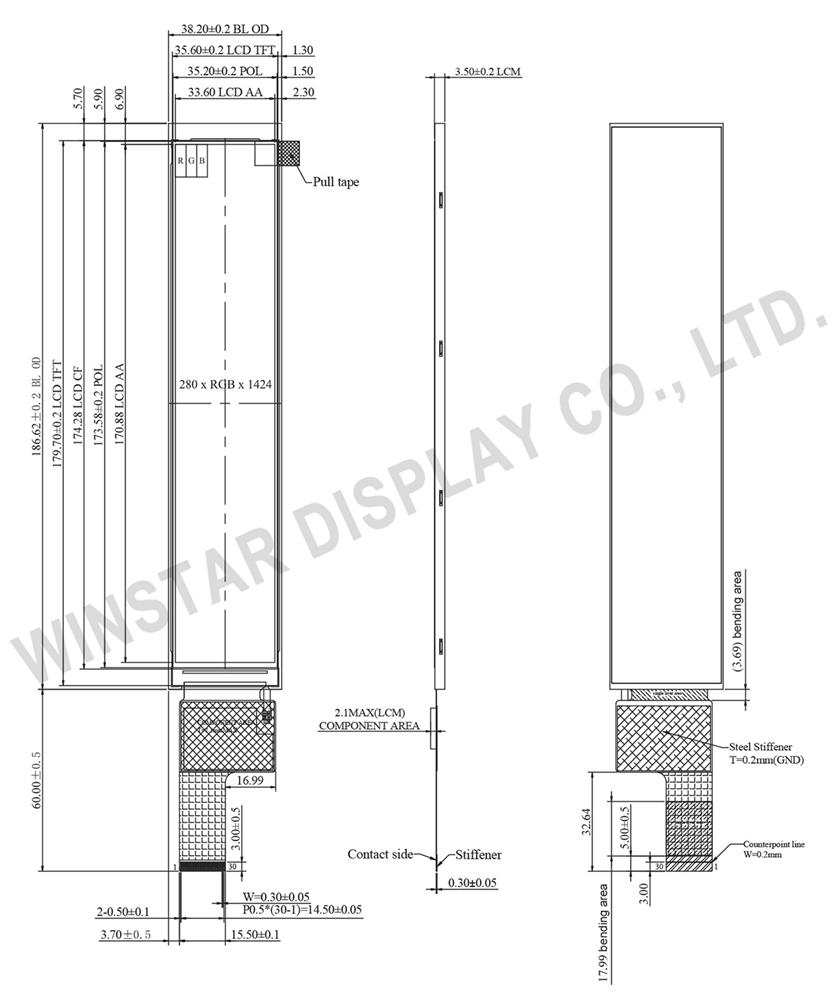

DRAWING

7 inch Bar Type, 280×1424 IPS TFT-LCD Display Module



SPECIFICATIONS



Interface

LCM PIN Definition

NO.SymbolFunction
1 GND Ground
2 D3N Negative polarity of low voltage differential data signal
3 D3P Positive polarity of low voltage differential data signal
4 GND Ground
5 D2N Negative polarity of low voltage differential data signal
6 D2P Positive polarity of low voltage differential data signal
7 GND Ground
8 CLKN Negative polarity of low voltage differential clock signal
9 CLKP Positive polarity of low voltage differential clock signal
10 GND Ground
11 D1N Negative polarity of low voltage differential data signal
12 D1P Positive polarity of low voltage differential data signal
13 GND Ground
14 D0N Negative polarity of low voltage differential data signal
15 D0P Positive polarity of low voltage differential data signal
16-17 GND Ground
18 TE Tearing effect output pin to synchronize to frame writing.
If not used, open this pin
19 RESET Reset signal pin
20 GND Ground
21-23 VCC Power supply
24 GND Ground
25-26 NC Not connect
27-28 VLED- LED cathode
29-30 VLED+ LED anode


General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 280 x RGBx1424(TFT) dots
Module dimension 38.2(H) x 186.62(V) x 3.5(D) mm
Active area 33.60 (H) x170.88(V) mm
Pixel pitch 0.12(H) x 0.12(V) mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 1:5
Driver IC OTA7290B or Equivalent
Interface 4-Lanes MIPI
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Aniti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

1.TFT LCD Module：

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC - 102 120 mA
Logic input voltage VIH 0.7*VCC - VCC V
VIL GND - 0.3*VCC V


2.Backlight Driving Conditions：

ParameterSymbolMinTypMaxUnitCondition
LED Current IF -- 40 -- mA Ta=25℃
LED Voltage VF 21.6 24 27.2 Volt Ta=25℃
LED Life-Time N/A 15,000 -- -- Hour Ta=25℃
Note (2)
SKU: WF70-2801424C3M#0P0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€82.10
€73.90
€62.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€82.10 excl tax



DESCRIPTION

WF70-2801424C3M#0P0-FC is a 7-inch Bar Type IPS TFT LCD with excellent visual effects. The module's outline dimensions are 38.2 × 186.62mm with a resolution of 280×1424 pixels. This product uses OTA7290B driver IC and supports the MIPI DSI interface, providing excellent stability and reliability. The display has a wide viewing angle of left 80/right 80/upper 80/lower 80 degrees and an aspect ratio of 1:5, and it supports a 3.3V (typical) power supply. The surface is treated with Anti-Glare, enhancing the visual quality and user experience.

This module can be operated at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. The PCAP touch option is available.



DRAWING

7 inch Bar Type, 280×1424 IPS TFT-LCD Display Module



SPECIFICATIONS



Interface

LCM PIN Definition

NO.SymbolFunction
1 GND Ground
2 D3N Negative polarity of low voltage differential data signal
3 D3P Positive polarity of low voltage differential data signal
4 GND Ground
5 D2N Negative polarity of low voltage differential data signal
6 D2P Positive polarity of low voltage differential data signal
7 GND Ground
8 CLKN Negative polarity of low voltage differential clock signal
9 CLKP Positive polarity of low voltage differential clock signal
10 GND Ground
11 D1N Negative polarity of low voltage differential data signal
12 D1P Positive polarity of low voltage differential data signal
13 GND Ground
14 D0N Negative polarity of low voltage differential data signal
15 D0P Positive polarity of low voltage differential data signal
16-17 GND Ground
18 TE Tearing effect output pin to synchronize to frame writing.
If not used, open this pin
19 RESET Reset signal pin
20 GND Ground
21-23 VCC Power supply
24 GND Ground
25-26 NC Not connect
27-28 VLED- LED cathode
29-30 VLED+ LED anode


General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 280 x RGBx1424(TFT) dots
Module dimension 38.2(H) x 186.62(V) x 3.5(D) mm
Active area 33.60 (H) x170.88(V) mm
Pixel pitch 0.12(H) x 0.12(V) mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 1:5
Driver IC OTA7290B or Equivalent
Interface 4-Lanes MIPI
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Aniti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

1.TFT LCD Module：

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC - 102 120 mA
Logic input voltage VIH 0.7*VCC - VCC V
VIL GND - 0.3*VCC V


2.Backlight Driving Conditions：

ParameterSymbolMinTypMaxUnitCondition
LED Current IF -- 40 -- mA Ta=25℃
LED Voltage VF 21.6 24 27.2 Volt Ta=25℃
LED Life-Time N/A 15,000 -- -- Hour Ta=25℃
Note (2)
Products specifications
Brand Winstar
Size 7"
Resolution 280x1424
Active Area (mm) 33.60x170.88
Color Full Color
Display Interface MIPI
Display IC OTA7290B
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
