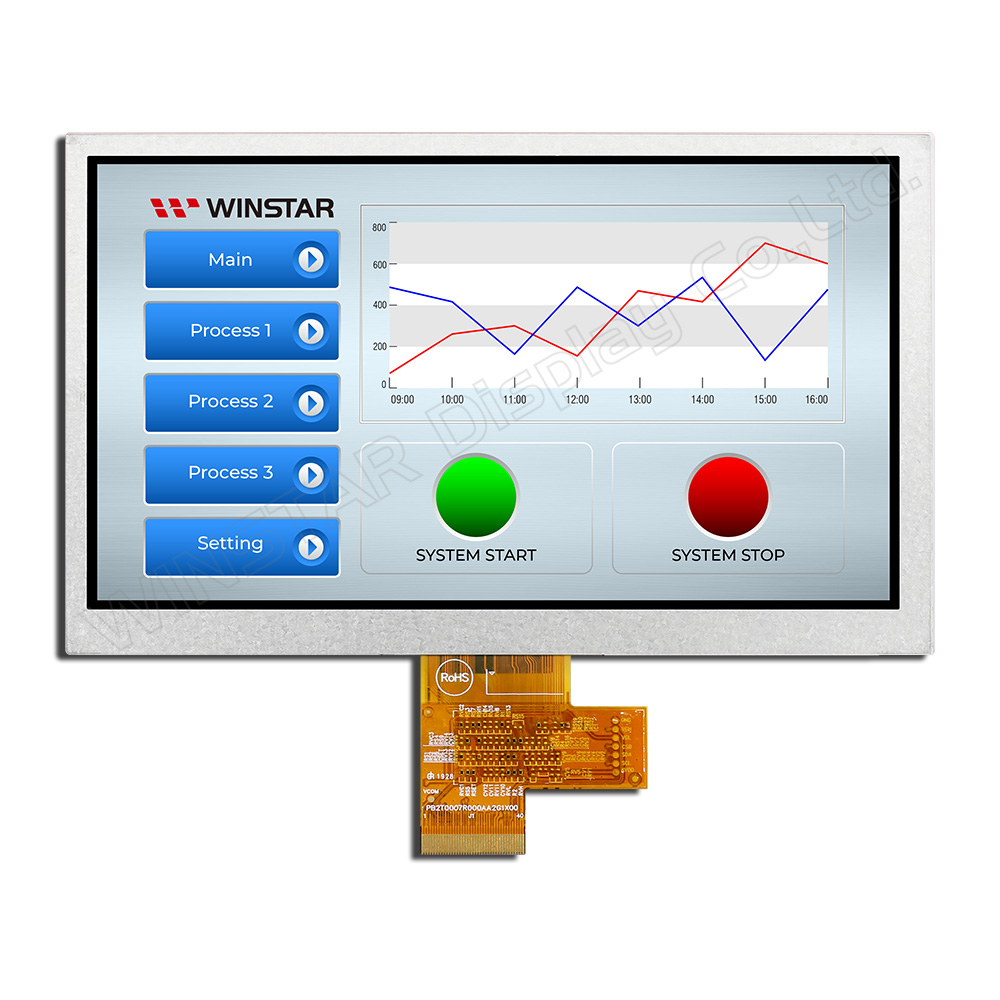

WF70-1024600A8L#0SP0-FC

TFT 7'' 1024x600, LCD Module, Interface LVDS, High Brightness 1100cd/m², Wide View Angle (IPS), No touch

DESCRIPTION



Landscape 7 inch IPS TFT High Brightness module, with resolution 1024x600 pixels. It is built in with ST5021 and ST5651 driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 1100 nits (typical value), aspect ratio 16:9, Anti-Glare surface glass, normally black, transmissive LCD type. This 7" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value).

The supply voltage (VDD) is from 3.0V to 3.6V, typical value 3.3V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. We also offer Resistive Touch Panels (RTP), Projected Capacitive Touch Panel (PCAP) optional.

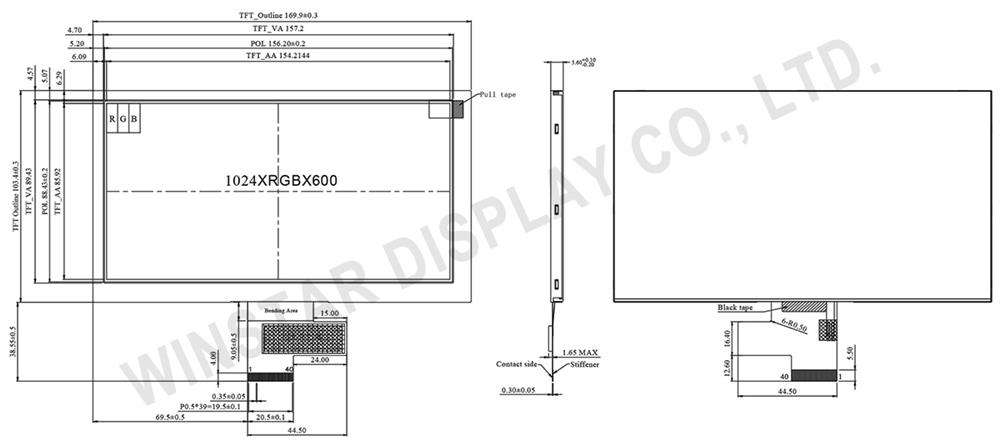

DRAWING

WF70A8SYAHLNN0 - Winstar



SPECIFICATIONS

Interface

LCM PIN Definition

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2 VDD P Digital circuit
3 VDD P Digital circuit
4 NC --- No connection
5 RESET I Global reset pin
6 STBYB   I Standby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7 GND P Ground
8 RXIN0- I Negative LVDS differential data input
9 RXIN0+ I Positive LVDS differential data input
10 GND P Ground
11 RXIN1- I Negative LVDS differential data input
12 RXIN1+ I Positive LVDS differential data input
13 GND P Ground
14 RXIN2- I Negative LVDS differential data input
15 RXIN2+ I Positive LVDS differential data input
16 GND P Ground
17 RXCLKIN- I Negative LVDS differential clock input
18 RXCLKIN+ I Positive LVDS differential clock input
19 GND P Ground
20 RXIN3- I Negative LVDS differential data input
21 RXIN3+ I Positive LVDS differential data input
22 GND P Ground
23 NC --- No connection
24 NC --- No connection
25 GND P Ground
26 NC --- No connection
27 NC --- No connection
28 SELB I 6bit/8bit mode select
H:6bit / L:8bit
29 AVDD P Power for Analog Circuit
30 GND P Ground
31 LED- P LED Cathode
32 LED- P LED Cathode
33 L/R I Horizontal inversion
34 U/D I Vertical inversion
35 VGL P Negative power for TFT
36 NC --- No connection
37 NC --- No connection
38 VGH P Positive power for TFT
39 LED+ P LED Anode
40 LED+ P LED Anode

I:input ,O:output,P:power



General Specifications

ItemDimensionUnit
Size 7 inch
Dot Matrix 1024 × RGB × 600(TFT) dots
Module dimension 169.9(W) × 103.4(H) × 5.6(D) mm
Active area 154.2144 × 85.92 mm
Dot pitch 0.1506 × 0.1432 mm
LCD type TFT, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 16:9
TFT Driver IC ST5021 + ST5651 or equivalent
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
TFT Interface LVDS
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VDD 3.0 3.3 3.6 V
Analog Power AVDD 8.9 9.0 9.1 V
TFT Gate ON Voltage VGH 17 18 19 V
TFT Gate OFF Voltage VGL -6.5 -6.0 -5.5 V
TFT Common Voltage Vcom 3.0 3.15 3.3 V
Current for Driver IDD - 14 21 mA
Power Current IAVDD - 25 - mA
TFT Gate ON Current IVGH - 1 - mA
TFT Gate OFF Current IVGL - 1 - mA
TFT Common Current IVCOM - 1 - mA


SKU: WF70-1024600A8L#0SP0-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€34.10
€28.40
€25.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€34.10 excl tax
