WF88-4801920BM#0P15-FC

Picture of WF88-4801920BM#0P15-FC Picture of WF88-4801920BM#0P15-FC
TFT 8.8" 480x1920, Bar Type, MIPI Interface IC OTA7290N, 450cd/m², Wide view angle (IPS), Capacitive touch panel I2C interface (GG, IC GT928, OCA Bonding)

DESCRIPTION

WF88-4801920BM#0P15-FC is an 8.8-inch bar-type TFT-LCD module designed for horizontal display applications requiring long-format layouts. It has a resolution of 480×1920 pixels with a 1:4 aspect ratio, suitable for control panels, list-based content, and information displays.

Using IPS technology, the module provides 85°/85°/85°/85° (L/R/U/D) wide viewing angles with stable color reproduction. An integrated projected capacitive touch panel (PCAP) with optical bonding is included, controlled by the GT928 IC, supporting single-touch input and enhanced durability.

The display is driven by the OTA7290N IC via a 4-lane MIPI DSI interface for reliable high-speed data transmission. Brightness is 450 cd/m², LED backlight lifetime is 30,000 hours (typical), and the module dimensions are 241.3 × 74.3 × 8.5 mm.

Operating temperature range: -20°C to +70°C; storage: -30°C to +80°C.

Applications: Audio/visual equipment, industrial machinery, smart appliances, medical instruments, and systems requiring bar-type displays.


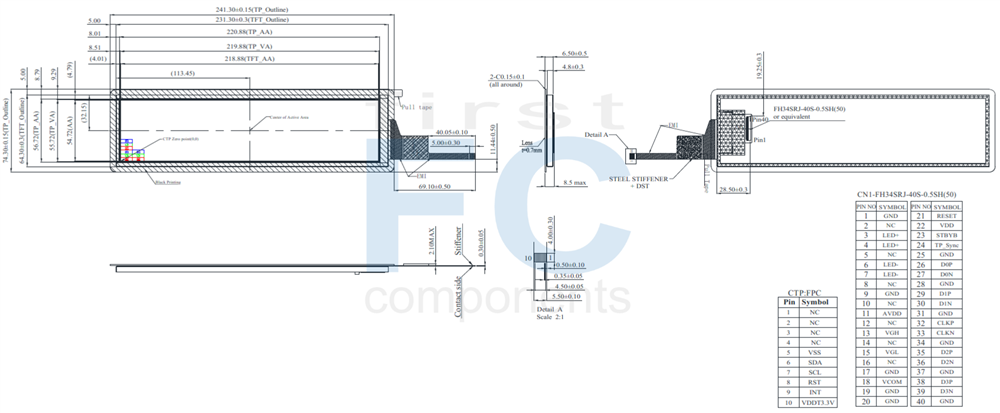

DRAWING



SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 8.8 inch
Dot Matrix 480 × R.G.B. × 1920 dots
Module dimension 241.3 × 74.3 × 8.5 mm
Active area 218.88 × 54.72 mm
Pixel pitch 0.114 × 0.114 mm
LCD type TFT, Normally black, Transmissive
Viewing angle 85/85/85/85
Aspect Ratio 1:4
Backlight Type LED ,Normally White
TFT Driver IC OTA7290N
TFT Interface 4-Lanes MIPI
CTP Driver IC GT928 or equivalent
CTP Interface I2C
CTP FW Version 66
CTP Resolution 480*1920
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － 70 ℃
Storage Temperature TST -30 － 80 ℃



Electrical Characteristics

TFT LCD Module

ItemSymbolMinTypMaxUnit
Supply Voltage VDD 3.0 3.3 3.6 V
VGH 17.0 18.0 19.0 V
VGL -11 -10 -9 V
AVDD 11.8 12 12.2 V
VCOM VCOM 4.5 4.88 5.2 V
Input signal voltage ViH 0.7 VDD - VDD V
ViL 0 - 0.3 VDD V
Current of power supply IDD - - 35 mA
IADD - - 30 mA
IGH - - 5 mA
IGL - - -5 mA
Ivcom - - 0.1 mA
Supply CTP VDDT3.3V 2.8 - 3.3 V
IDDT3.3V - 13.4 21.0 mA



Interface Pin Function

LCM PIN Definition

Pin No.SymbolI/OFunction
1 GND P Ground
2 NC --- No connection
3 LED+ P LED Anode
4 LED+ P LED Anode
5 NC --- No connection
6 LED- P LED Cathode
7 LED- P LED Cathode
8 NC --- No connection
9 GND P Ground
10 NC --- No connection
11 AVDD P Power supply for analog circuit
12 NC --- No connection
13 VGH P Power supply for analog circuit
14 NC --- No connection
15 VGL P Power supply for analog circuit
16 NC --- No connection
17 GND P Ground
18 VCOM P Power supply for common voltage
19 GND P Ground
20 GND P Ground
21 RESET I Global reset
22 VDD P Power supply for digital circuits
23 STBYB I Standby mode
24 TP_Sync O Sync signal for touch panel
25 GND P Ground
26 D0P I MIPI Data Input Lane0 positive-end
27 D0N I MIPI Data Input Lane0 negtive-end
28 GND P Ground
29 D1P I MIPI Data Input Lane1 positive-end
30 D1N I MIPI Data Input Lane1 negtive-end
31 GND P Ground
32 CLKP I MIPI Clock Input positive-end
33 CLKN I MIPI Clock Input negtive-end
34 GND P Ground
35 D2P I MIPI Data Input Lane2 positive-end
36 D2N I MIPI Data Input Lane2 negtive-end
37 GND P Ground
38 D3P I MIPI Data Input Lane3 positive-end
39 D3N I MIPI Data Input Lane3 negtive-end
40 GND P Ground


CTP PIN Definition

PinSymbolFunction
1 NC No connection
2 NC No connection
3 NC No connection
4 NC No connection
5 VSS Ground for analog circuit
6 SDA I2C data input and output
7 SCL I2C clock input
8 RST External Reset, Low is active
9 INT External interrupt to the host
10 VDDT3.3V Power Supply : +3.3V
SKU: WF88-4801920BM#0P15-FC
Brand: Winstar
Be the first to review this product
Accessory Kit

DESCRIPTION

WF88-4801920BM#0P15-FC is an 8.8-inch bar-type TFT-LCD module designed for horizontal display applications requiring long-format layouts. It has a resolution of 480×1920 pixels with a 1:4 aspect ratio, suitable for control panels, list-based content, and information displays.

Using IPS technology, the module provides 85°/85°/85°/85° (L/R/U/D) wide viewing angles with stable color reproduction. An integrated projected capacitive touch panel (PCAP) with optical bonding is included, controlled by the GT928 IC, supporting single-touch input and enhanced durability.

The display is driven by the OTA7290N IC via a 4-lane MIPI DSI interface for reliable high-speed data transmission. Brightness is 450 cd/m², LED backlight lifetime is 30,000 hours (typical), and the module dimensions are 241.3 × 74.3 × 8.5 mm.

Operating temperature range: -20°C to +70°C; storage: -30°C to +80°C.

Applications: Audio/visual equipment, industrial machinery, smart appliances, medical instruments, and systems requiring bar-type displays.


DRAWING



SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 8.8 inch
Dot Matrix 480 × R.G.B. × 1920 dots
Module dimension 241.3 × 74.3 × 8.5 mm
Active area 218.88 × 54.72 mm
Pixel pitch 0.114 × 0.114 mm
LCD type TFT, Normally black, Transmissive
Viewing angle 85/85/85/85
Aspect Ratio 1:4
Backlight Type LED ,Normally White
TFT Driver IC OTA7290N
TFT Interface 4-Lanes MIPI
CTP Driver IC GT928 or equivalent
CTP Interface I2C
CTP FW Version 66
CTP Resolution 480*1920
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － 70 ℃
Storage Temperature TST -30 － 80 ℃



Electrical Characteristics

TFT LCD Module

ItemSymbolMinTypMaxUnit
Supply Voltage VDD 3.0 3.3 3.6 V
VGH 17.0 18.0 19.0 V
VGL -11 -10 -9 V
AVDD 11.8 12 12.2 V
VCOM VCOM 4.5 4.88 5.2 V
Input signal voltage ViH 0.7 VDD - VDD V
ViL 0 - 0.3 VDD V
Current of power supply IDD - - 35 mA
IADD - - 30 mA
IGH - - 5 mA
IGL - - -5 mA
Ivcom - - 0.1 mA
Supply CTP VDDT3.3V 2.8 - 3.3 V
IDDT3.3V - 13.4 21.0 mA



Interface Pin Function

LCM PIN Definition

Pin No.SymbolI/OFunction
1 GND P Ground
2 NC --- No connection
3 LED+ P LED Anode
4 LED+ P LED Anode
5 NC --- No connection
6 LED- P LED Cathode
7 LED- P LED Cathode
8 NC --- No connection
9 GND P Ground
10 NC --- No connection
11 AVDD P Power supply for analog circuit
12 NC --- No connection
13 VGH P Power supply for analog circuit
14 NC --- No connection
15 VGL P Power supply for analog circuit
16 NC --- No connection
17 GND P Ground
18 VCOM P Power supply for common voltage
19 GND P Ground
20 GND P Ground
21 RESET I Global reset
22 VDD P Power supply for digital circuits
23 STBYB I Standby mode
24 TP_Sync O Sync signal for touch panel
25 GND P Ground
26 D0P I MIPI Data Input Lane0 positive-end
27 D0N I MIPI Data Input Lane0 negtive-end
28 GND P Ground
29 D1P I MIPI Data Input Lane1 positive-end
30 D1N I MIPI Data Input Lane1 negtive-end
31 GND P Ground
32 CLKP I MIPI Clock Input positive-end
33 CLKN I MIPI Clock Input negtive-end
34 GND P Ground
35 D2P I MIPI Data Input Lane2 positive-end
36 D2N I MIPI Data Input Lane2 negtive-end
37 GND P Ground
38 D3P I MIPI Data Input Lane3 positive-end
39 D3N I MIPI Data Input Lane3 negtive-end
40 GND P Ground


CTP PIN Definition

PinSymbolFunction
1 NC No connection
2 NC No connection
3 NC No connection
4 NC No connection
5 VSS Ground for analog circuit
6 SDA I2C data input and output
7 SCL I2C clock input
8 RST External Reset, Low is active
9 INT External interrupt to the host
10 VDDT3.3V Power Supply : +3.3V
Products specifications
Brand Winstar
Size 8.8"
Resolution 1920x480
Active Area (mm) 218.88x54.72
Color Full Color
Display Interface MIPI
Display IC OTA7290N
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT928
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 8.8"
Resolution 1920x480
Active Area (mm) 218.88x54.72
Color Full Color
Display Interface MIPI
Display IC OTA7290N
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller GT928
Preferred - Not Preferred Preferred
