WF70-1024600A8M#0P0-FC

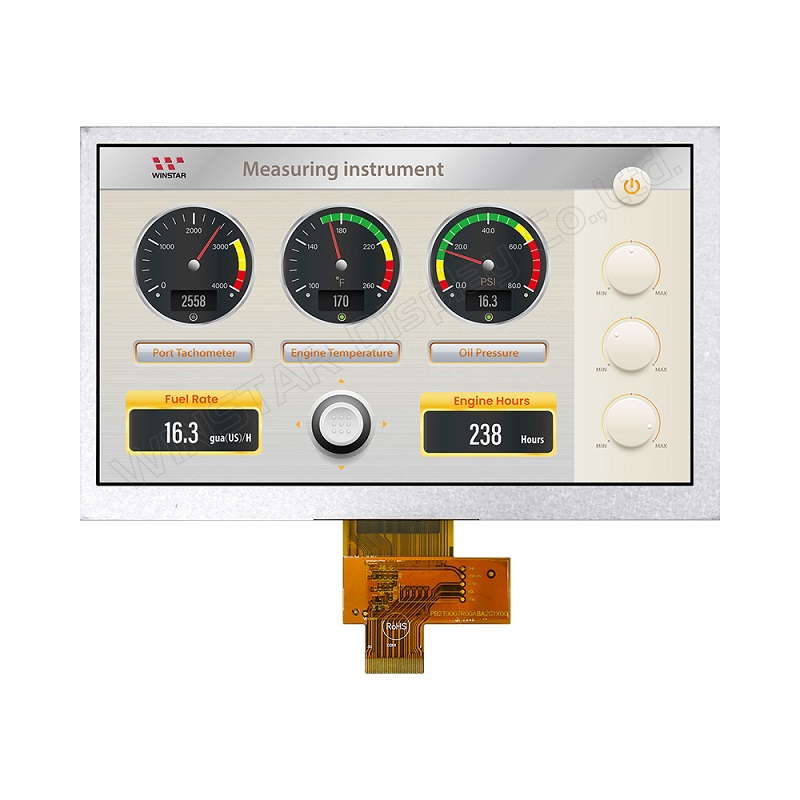

TFT 7'' 1024x600, LCD Module, Interface MIPI (EK79007AD3 + EK73217BCGA), Wide View Angle (IPS), No touch

DESCRIPTION

7'' MIPI DSI interface 1024 x 600 IPS TFT-LCD module. This TFT-LCD is featured with IPS technology which is having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree, contrast ratio 800:1 (typical value), brightness 600 nits (typical value), anti-glare surface panel, aspect Ratio 16:9. This model is available in projected capacitive touch panel (PCAP) and resistive touch panel (RTP) options; and it is available for LVDS interface as well.

This TFT module is built-in with EK7900AD3 and EK73217BCGA driver IC; it supports 4-Lanes MIPI interface (Mobile Industry Processor Interface) DSI (Display Serial Interface). The MIPI DSI interface becomes more popular because of the characteristics of High Speed Data Transmission and High Speed Clock Transmission. Aspect ratio 16:9, it can be operated at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.



DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

Pin No.SymbolFunction
1 VLED+ LED Anode
2 VLED+ LED Anode
3 VGH Positive power for TFT
4 VGL Negative power for TFT
5 UPDN Gate up or down scan control.
UPDN = ”L”, STV2 output vertical start pulse and UD pin output logical “L” to Gate driver. (default)
UPDN = ”H”, STV1 output vertical start pulse and UD pin output logical “H” to Gate driver
6 SHLR Source right or left sequence control.
SHLR = ”L“, shift left: last data = S1←S2←S3….......←S1536 = first data.
SHLR = ”H“, shift right: first data = S1→S2→S3….....→S1536 = last data.(default)
7 VLED- LED Cathode
8 VLED- LED Cathode
9 AVDD Power for Analog Circuit
10 GND Ground
11 D3P MIPI data input.
12 D3N MIPI data input.
13 GND Ground
14 D2P MIPI data input.
15 D2N MIPI data input.
16 GND Ground
17 CLKP MIPI clock input
18 CLKN MIPI clock input
19 GND Ground
20 D1P MIPI data input.
21 D1N MIPI data input.
22 GND Ground
23 D0P MIPI data input.
24 D0N MIPI data input.
25 GND Ground
26 STBYB Standby mode.
STBYB = ”H“,normal operation(default)
STBYB = ”L”, timing controller, source driver will turn off, all output are GND.
27 RESET Global reset pin. Active Low to enter Reset State. Normally pull high. Connecting with an RC reset circuit for stability.
28 VDD(1.8V) Digital circuit
29 VDD(1.8V) Digital circuit
30 VCOMIN Common voltage


Note
When L/R=”0”,set right to left scan direction.
When L/R=”1”,set left to right scan direction.
When U/D=”0”,set top to bottom scan direction.
When U/D=”1”,set bottom to top scan direction.



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 1024 × RGB × 600(TFT) dots
Module dimension 169.9(W) × 103.4(H) × 5.6(D) mm
Active area 154.2114 × 85.92 mm
Dot pitch 0.1506 × 0.1432 mm
LCD type TFT, Normally White, Transmissive
View Direction 85/85/85/85
Aspect Ratio 16:9
Driver IC EK79007AD3 + EK73217BCGA or equivalent
Interface 4-Lanes MIPI
Backlight Type LED, Normally White
Touch Screen Without touch screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VDD 1.71 1.8 1.89 V
Analog Power AVDD 8.9 9.0 9.1 V
TFT Gate ON Voltage VGH 17 18 19 V
TFT Gate OFF Voltage VGL -6.5 -6.0 -5.5 V
TFT Common Voltage VCOMIN 3.0 3.15 3.3 V
Current for Driver IDD -- 16 24 mA
Power Current IAVDD -- 19 28.5 mA
TFT Gate ON Current IVGH -- 1.6 2.4 mA
TFT Gate OFF Current IVGL -- 0.6 0.9 mA
TFT Common Current IVCOMIN -- 0 -- mA




Backlight Driving Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Voltage for LED backlight VL 16.8 19.2 21.0 V
Current for LED backlight IL -- 240 -- mA
LED life time - - 50,000 - Hr


SKU: WF70-1024600A8M#0P0-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€52.60
€43.80
€38.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€52.60 excl tax
