WF70-800480A2816D#001-FC

Picture of WF70-800480A2816D#001-FC Picture of WF70-800480A2816D#001-FC Picture of WF70-800480A2816D#001-FC
TFT 7" 800x480, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 250cd/m², Resistive touch panel (LC)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

This 7 inch TFT Display is built in with SSD1963 controller board plus a 36 pin-out connector on board. This model is available in 8080 family MPU 8bit/16bit options and already defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. This display is with the module dimension of 165 x 100 mm and includes a RTP touch screen on module.

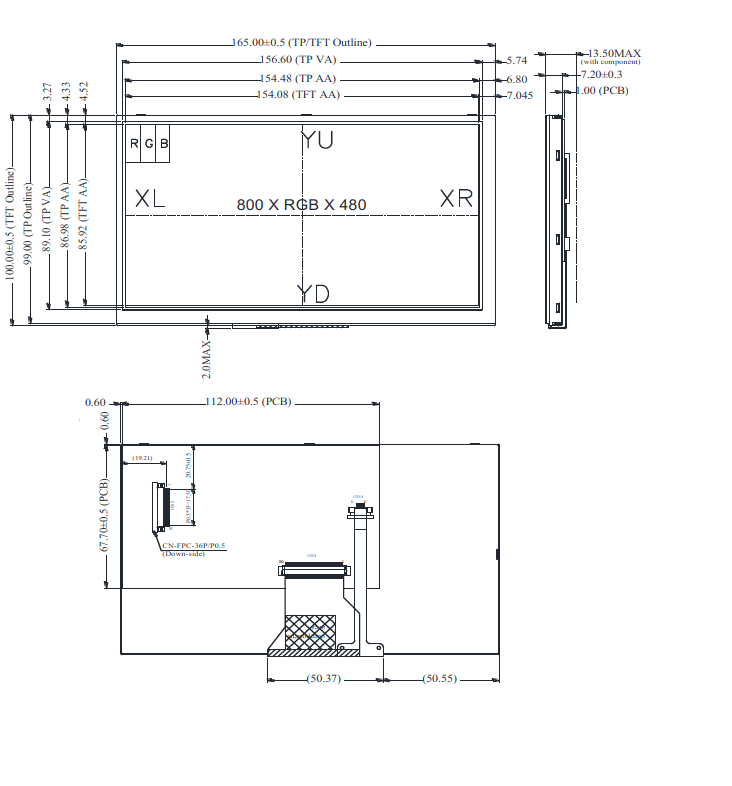

DRAWING

SPECIFICATIONS

Interface

PinSymbolFunction
1 GND System ground pin of the IC . Connect to system ground.
2 VDD Power Supply : +3.3V
3 BLE Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23~24 NC No connect
25 CS Chip select
26 RST Hardware reset
27 L/R Left / right selection; Default L/R=H
28 U/D Up/down selection; ; Default U/D=L
29 XL Left electrode
30 YU Top electrode
31 XR Right electrode
32 YD Bottom electrode
33~34 VLED- Power for LED Driver IC(GND)
35~36 VLED+ Power for LED Driver IC(+5V)



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃





SKU: WF70-800480A2816D#001-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€59.50
€53.60
€45.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€59.50 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

This 7 inch TFT Display is built in with SSD1963 controller board plus a 36 pin-out connector on board. This model is available in 8080 family MPU 8bit/16bit options and already defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. This display is with the module dimension of 165 x 100 mm and includes a RTP touch screen on module.



DRAWING

SPECIFICATIONS

Interface

PinSymbolFunction
1 GND System ground pin of the IC . Connect to system ground.
2 VDD Power Supply : +3.3V
3 BLE Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~14 DB0~DB7 Data bus
15~22 DB8~DB15 Data bus (When select 8bits Mode, this pin is NC)
23~24 NC No connect
25 CS Chip select
26 RST Hardware reset
27 L/R Left / right selection; Default L/R=H
28 U/D Up/down selection; ; Default U/D=L
29 XL Left electrode
30 YU Top electrode
31 XR Right electrode
32 YD Bottom electrode
33~34 VLED- Power for LED Driver IC(GND)
35~36 VLED+ Power for LED Driver IC(+5V)



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃





Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
