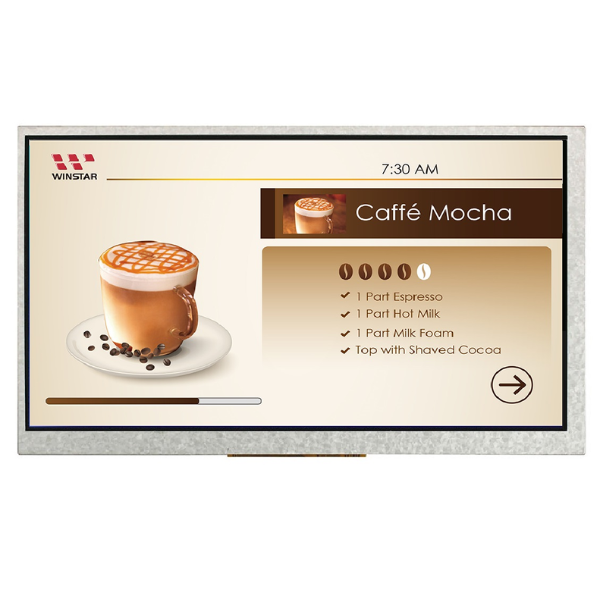

WF70-800480A2H#000-FC

TFT 7" 800x480, HDMI Interface, IC TFP401, 400cd/m², No touch (No Raspberry Connectors)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



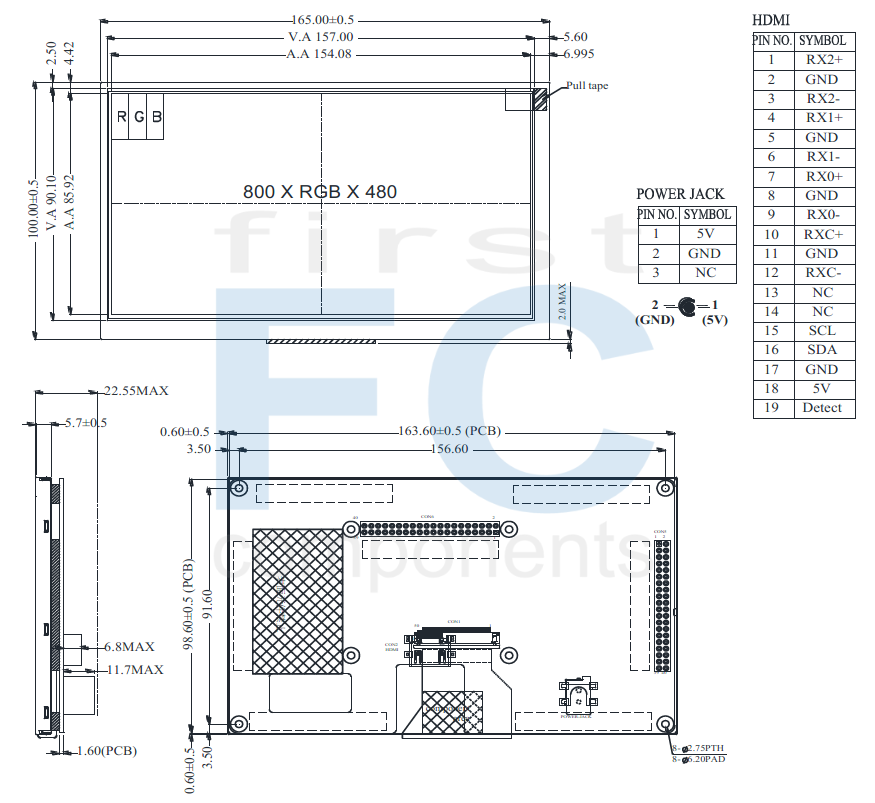

DRAWING



SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 x RGBx480(TFT) dots
Module dimension 165.0(W) x 100(H) x 22.55(D) mm
Active area 154.08 x 85.92 mm
Dot pitch 0.0642 x 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o’clock
Gray Scale Inversion Direction 6 o’clock
Aspect Ratio 16:9
Backlight Type LED,Normally White
Interface HDMI
With /Without TP Without TP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 4.9 5 5.1 V
Supply Current For LCM IDD － － 760 1140 mA
LED life time － － － 50,000 － Hr



Interface

HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
I: input, O: output, P: Power

POWER JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC   No connection
SKU: WF70-800480A2H#000-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€57.80
€52.00
€44.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€57.80 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DRAWING



SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 x RGBx480(TFT) dots
Module dimension 165.0(W) x 100(H) x 22.55(D) mm
Active area 154.08 x 85.92 mm
Dot pitch 0.0642 x 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o’clock
Gray Scale Inversion Direction 6 o’clock
Aspect Ratio 16:9
Backlight Type LED,Normally White
Interface HDMI
With /Without TP Without TP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 4.9 5 5.1 V
Supply Current For LCM IDD － － 760 1140 mA
LED life time － － － 50,000 － Hr



Interface

HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
I: input, O: output, P: Power

POWER JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC   No connection
Date Notice Link/Description
2024/07/31 EOL

Production Discontinuation of Sitronix ST7623 Driver for
Winstar TFTs WF70-800480A2 and WF70-800480B7



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Display Interface HDMI
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection HDMI Connector
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Display Interface HDMI
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection HDMI Connector
Preferred - Not Preferred Preferred
