WF70-800480A6D#001-FC

TFT 7" 800x480 LCD Panel, Interface RGB (40pin), 320cd/m² Square pixels, Resistive touch panel (Replacement Winstar family WF70H)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

2021 Panel Version // Previous version P/N WF70-800480H#001-FC

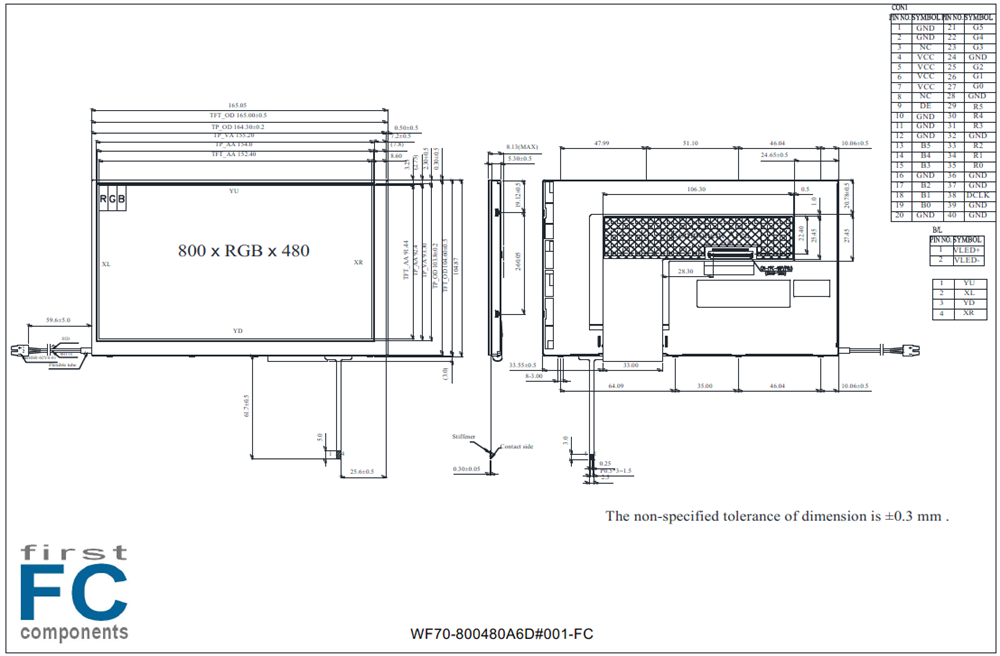

DRAWING



SKU: WF70-800480A6D#001-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€85.00
€76.50
€63.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€85.00 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

2021 Panel Version // Previous version P/N WF70-800480H#001-FC



DRAWING



Date Notice Link/Description
2024/12/30 EOL

Production Discontinuation of Innolux Glass for Winstar TFT WF70-800480A6*



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
