WF70-800480A9D#0SPW0-FC

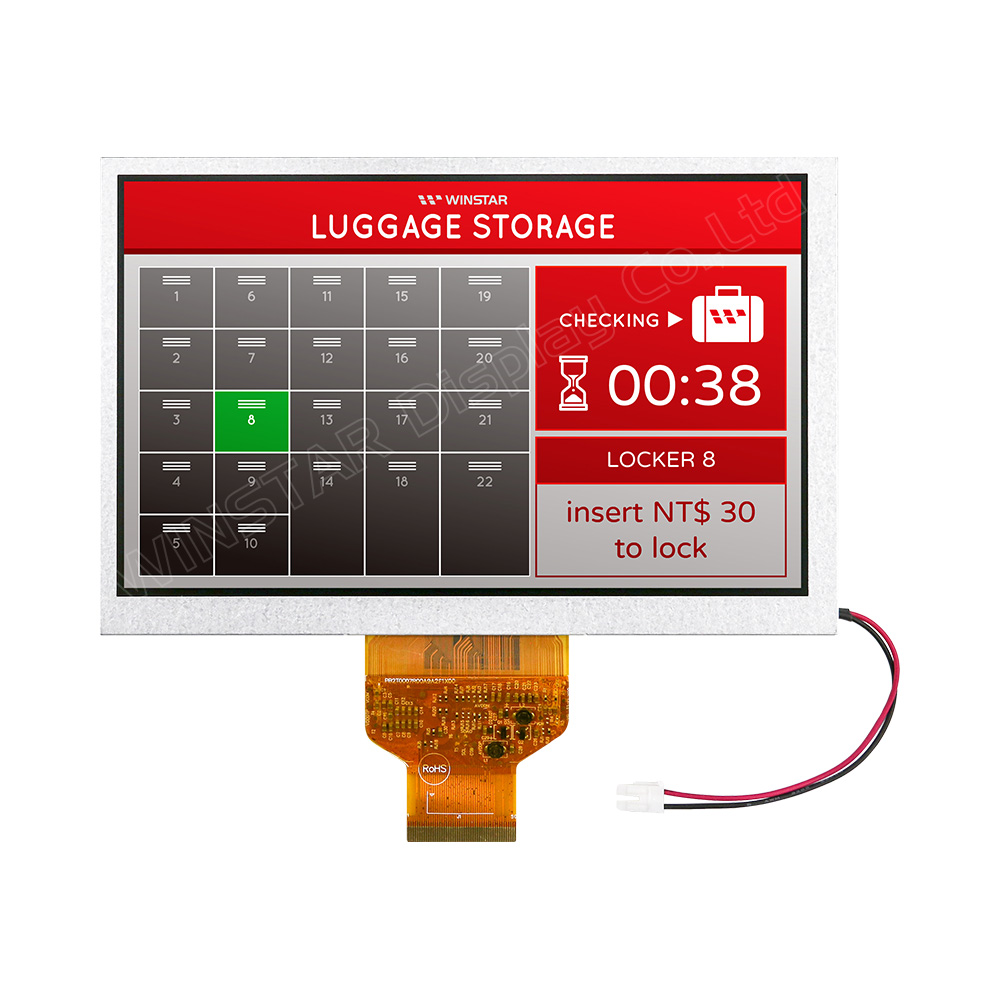

TFT 7'' 800x480, LCD Module, Interface RGB (50pin), High Brightness 1000cd/m², Wide view angle (IPS), Square pixels, Super extended Temperature, No touch

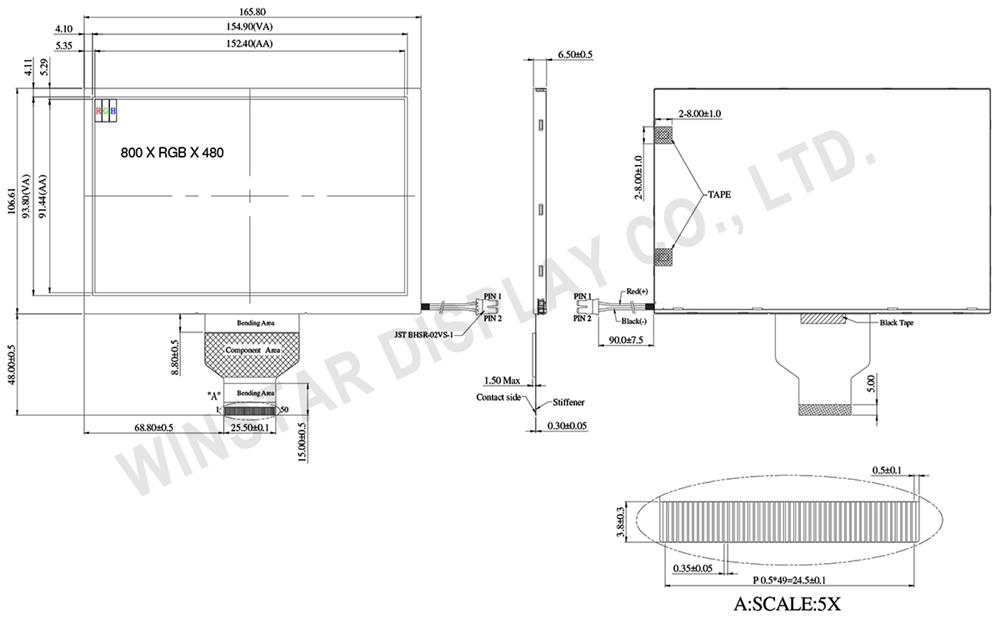

DRAWING



7 inch 800x480 Wide Temperature IPS TFT LCD Panel - WF70A9TWAGDNN0

SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1-4 NC No connection
5 GND Power Ground
6 NC No connection
7 VCC Power voltage
8 NC
(MODE)
Input timing mode selection. Effective when FCS=1.
MODEFunctionNote
0 DE only -
1 HS+VS Default
9 DE Data enable signal for TTL mode.
10 VS Vertical sync input
11 HS Horizontal sync input
12 B7 Blue data(MSB)
13 B6 Blue data
14 B5 Blue data
15 B4 Blue data
16 B3 Blue data
17 B2 Blue data
18 B1 Blue data
19 B0 Blue data(LSB)
20 G7 Green data(MSB)
21 G6 Green data
22 G5 Green data
23 G4 Green data
24 G3 Green data
25 G2 Green data
26 G1 Green data
27 G0 Green data(LSB)
28 R7 Red data(MSB)
29 R6 Red data
30 R5 Red data
31 R4 Red data
32 R3 Red data
33 R2 Red data
34 R1 Red data
35 R0 Red data (LSB)
36 GND Power Ground
37 DCLK Sample clock
38 GND Power Ground
39  NC
(L/R)
Horizontal shift direction (source output) selection. Effective when FCS=1.
L/RSource output sequence and data orderNote
1 SOUT1→SOUT2→ …→ SOUT2400 Default
0 SOUT2400→SOUT2399→ …→ SOUT1 -
40  NC
(U/D)
Vertical shift direction (gate output) selection. Effective when FCS=1.
U/DFunctionNote
1 Top→bottom Default
0 Bottom→top -
41 NC No connection
42 NC No connection
43 NC No connection
44 RESET Reset pin. The chip is in reset state when RESETB=0.
45 NC No connection
46 NC No connection
47 DITHB STBYB Standby mode setting pin. The chip is in standby mode when STBYB=0.
48 GND Power Ground
49 NC No connection
50 NC No connection




Backlight PIN Definition

PinSymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- Black, LED_ Cathode



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 x RGB x 480(TFT) dots
Module dimension 165.8 (W) x 106.61 (H) x 6.5(D) mm
Active area 152.40 x 91.44 mm
Pixel pitch 0.1905 x 0.1905 mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
TFT Interface 24-bit RGB
TFT Driver IC HX8249-A + HX8678-C or Equivalent
Aspect Ratio 15:9
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage Vcc 2.7 3.3 3.6 V
Current of power supply IDD 101 150 mA
SKU: WF70-800480A9D#0SPW0-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€59.30
€52.40
€47.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€59.30 excl tax

DRAWING



7 inch 800x480 Wide Temperature IPS TFT LCD Panel - WF70A9TWAGDNN0

SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1-4 NC No connection
5 GND Power Ground
6 NC No connection
7 VCC Power voltage
8 NC
(MODE)
Input timing mode selection. Effective when FCS=1.
MODEFunctionNote
0 DE only -
1 HS+VS Default
9 DE Data enable signal for TTL mode.
10 VS Vertical sync input
11 HS Horizontal sync input
12 B7 Blue data(MSB)
13 B6 Blue data
14 B5 Blue data
15 B4 Blue data
16 B3 Blue data
17 B2 Blue data
18 B1 Blue data
19 B0 Blue data(LSB)
20 G7 Green data(MSB)
21 G6 Green data
22 G5 Green data
23 G4 Green data
24 G3 Green data
25 G2 Green data
26 G1 Green data
27 G0 Green data(LSB)
28 R7 Red data(MSB)
29 R6 Red data
30 R5 Red data
31 R4 Red data
32 R3 Red data
33 R2 Red data
34 R1 Red data
35 R0 Red data (LSB)
36 GND Power Ground
37 DCLK Sample clock
38 GND Power Ground
39  NC
(L/R)
Horizontal shift direction (source output) selection. Effective when FCS=1.
L/RSource output sequence and data orderNote
1 SOUT1→SOUT2→ …→ SOUT2400 Default
0 SOUT2400→SOUT2399→ …→ SOUT1 -
40  NC
(U/D)
Vertical shift direction (gate output) selection. Effective when FCS=1.
U/DFunctionNote
1 Top→bottom Default
0 Bottom→top -
41 NC No connection
42 NC No connection
43 NC No connection
44 RESET Reset pin. The chip is in reset state when RESETB=0.
45 NC No connection
46 NC No connection
47 DITHB STBYB Standby mode setting pin. The chip is in standby mode when STBYB=0.
48 GND Power Ground
49 NC No connection
50 NC No connection




Backlight PIN Definition

PinSymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- Black, LED_ Cathode



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 x RGB x 480(TFT) dots
Module dimension 165.8 (W) x 106.61 (H) x 6.5(D) mm
Active area 152.40 x 91.44 mm
Pixel pitch 0.1905 x 0.1905 mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
TFT Interface 24-bit RGB
TFT Driver IC HX8249-A + HX8678-C or Equivalent
Aspect Ratio 15:9
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage Vcc 2.7 3.3 3.6 V
Current of power supply IDD 101 150 mA
Products specifications
Brand Winstar
Size 7"
Resolution 800x482
Active Area (mm) 152.40x91.44
Color Full Color
Interface RGB
Built-in Controller No
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
