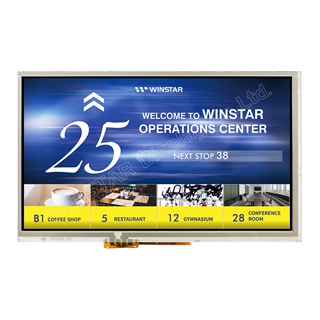

WF70-800480A2H#V01-FC

TFT 7'' 800x480, HDMI / Raspberry, Interface HDMI IC TFP401, Incl. 2 connectors, Resistive touch panel, Suitable for Raspberry Pi 1~3 & Pi3B+ versions

DESCRIPTION



7 inch Resistive Touch Panel TFT-LCD module which supports HDMI (Only DVI) signal; its resolution is made of WVGA 800x480 dots. It has a control board which supports HDMI (Only DVI) signal interface and a 40-pin GPIO connector on board; it is designed to make Raspberry Pi usage become easily. This display has a USB interface Resistive Touch Screen overlay on TFT panel. We designed a connector (P/N WWHDMI-00#) and USB cable for option, the customers can use it to connect the module with Raspberry Pi directly. Please note, this part no. does not include any HDMI connector or USB cable.

The module is built in with TFP401 Controller IC convert signal to support HDMI (Only DVI) signal interface. The supply voltage for LCM (VDD) is typical value 5V. It is featured with Anti-Glare surface glass, view direction 12 o'clock, gray scale inversion 6 o'clock, aspect ratio 16:9.

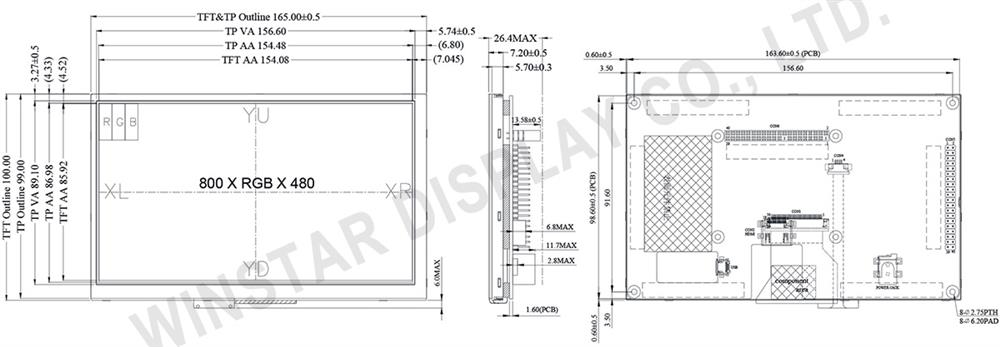

DRAWING

For Small HDMI Signal 7 inch Resistive Touch TFT LCD Display - WF70A2TIFGDHTV



SPECIFICATIONS


Interface

1. LCM PIN Definition(CON6)

PinSymbolFunction
1 NC No connection
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 GPIO18 Raspberry Pi:GPIO18 (Backlight Enable)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 NC No connection
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


2. LCM PIN Definition (CON5)

PinSymbolFunction
1 3.3V TFT Module Power limit can only output 3.3V,100mA
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 GPIO18 Raspberry Pi:GPIO18 (Backlight Enable)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 3.3V TFT Module Power limit can only output 3.3V,100mA
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


3. HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
I: input, O: output, P: Power

4. USB

Pin No.SymbolI/OFunction
1 5V P Power Supply
2 D- I/O USB Data -
3 D+ I/O USB Data +
4 NC - No connection
5 GND P Ground


5. POWER JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC   No connection



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480(TFT) dots
Module dimension 165.0(W) × 100(H) × 26.4(D) mm
Active area 154.08 × 85.92 mm
Dot pitch 0.0642 × 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Controller IC TFP401 or equivalent
Backlight Type LED, Normally White
TFT Interface Support HDMI Connector (Only DVI Signal)
RTP Interface USB
Touch Screen Resistive touch screen (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD 4.9 5 5.1 V
Supply Current For LCM IDD 760 1140 mA
LED life time 50,000 Hr
SKU: WF70-800480A2H#V01-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
50+
Price
€70.50
€62.30
€56.80
€52.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€70.50 excl tax
