WF43-480272VD#0F1-FC

TFT 4.3" 480x272 LCD Panel, Interface RGB, 350cd/m², Wide view angle (O-Film), Resistive touch panel, Default HSYNC-VSYNC, B/L 50K hours lifetime

DESCRIPTION

New panel version // Previous panel version P/N WF43-480272HD#0F1-FC in 'Related Product' section on the bottom page

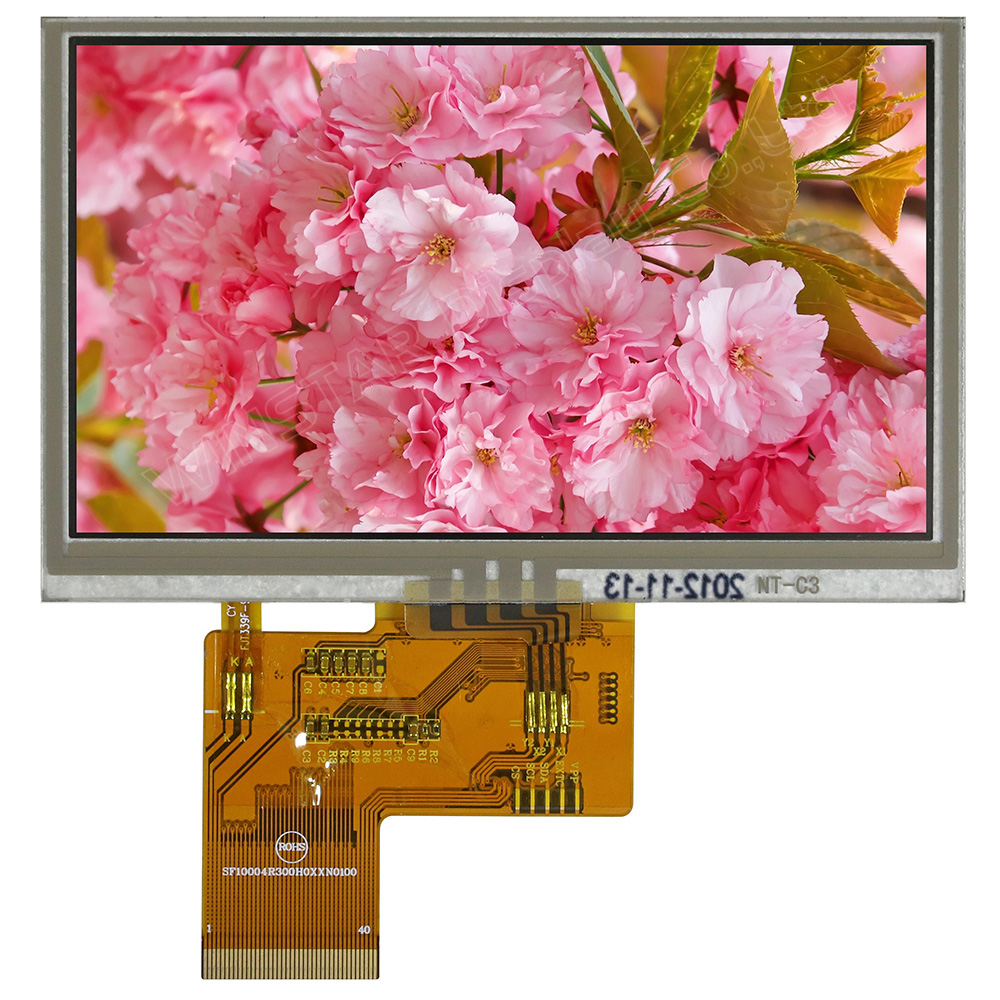

4.3'' TFT touch panel module. Wide view angle (O-Film technology). This TFT module outline dimension 105.5x67.2 mm, viewing area size 98.7x57.5 mm, active area size 95.04x53.856 mm. This 4.3" TFT LCD module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image.

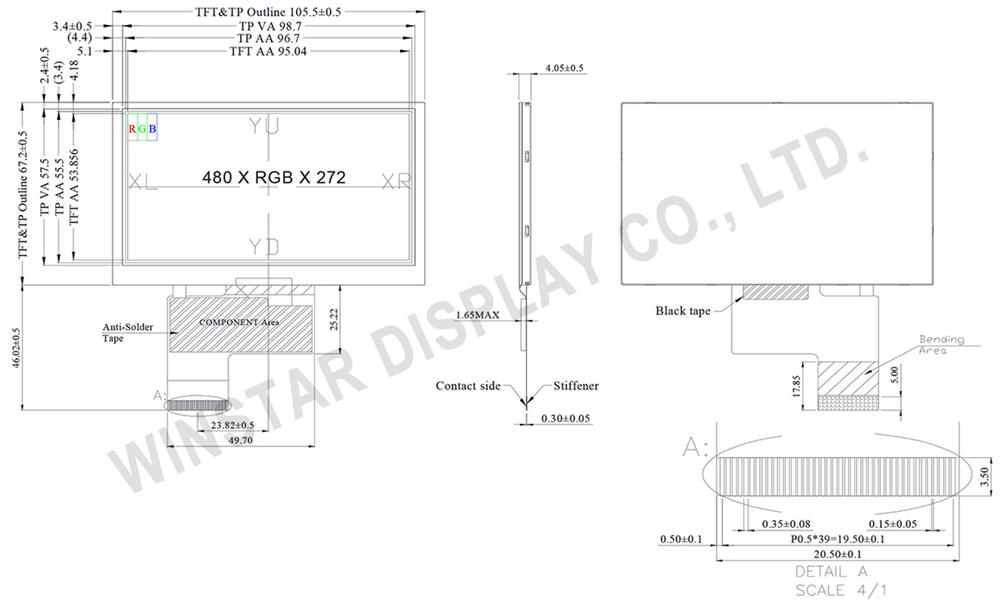

DRAWING

Winstar 4.3" Resistive Touch Panel TFT LCD - WF43VTIAEDNT0

INTERFACE

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	GND	Power ground
4	VDD	Power voltage
5	R0	Red data (LSB)
6~11	R1~R6	Red data
12	R7	Red data (MSB)
13	G0	Green data (LSB)
14~19	G1~G6	Green data
20	G7	Green data (MSB)
21	B0	Blue data (LSB)
22~27	B1~B6	Blue data
28	B7	Blue data (MSB)
29	GND	Power ground
30	CLK	Pixel clock
31	DISP	Display on/off
32	HSYNC	Horizontal sync signal; negative polarity
33	VSYNC	Vertical sync signal; negative polarity
34	DE	Data Enable
35	NC	No connection
36	GND	Power ground
37	XR	Right electrode
38	YD	Down electrode
39	XL	Left electrode
40	YU	Top electrode

SKU: WF43-480272VD#0F1-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€32.10

€25.70

€21.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€32.10 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

New panel version // Previous panel version P/N WF43-480272HD#0F1-FC in 'Related Product' section on the bottom page

DRAWING

INTERFACE

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	GND	Power ground
4	VDD	Power voltage
5	R0	Red data (LSB)
6~11	R1~R6	Red data
12	R7	Red data (MSB)
13	G0	Green data (LSB)
14~19	G1~G6	Green data
20	G7	Green data (MSB)
21	B0	Blue data (LSB)
22~27	B1~B6	Blue data
28	B7	Blue data (MSB)
29	GND	Power ground
30	CLK	Pixel clock
31	DISP	Display on/off
32	HSYNC	Horizontal sync signal; negative polarity
33	VSYNC	Vertical sync signal; negative polarity
34	DE	Data Enable
35	NC	No connection
36	GND	Power ground
37	XR	Right electrode
38	YD	Down electrode
39	XL	Left electrode
40	YU	Top electrode

Products specifications

Brand	Winstar
Size	4.3"
Resolution	480x272
Active Area (mm)	95.04x53.85
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	O-Film
Frame	No
Touch Panel	Resistive
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
