WF70-800480B6L#0SPW1-FC

Picture of WF70-800480B6L#0SPW1-FC Picture of WF70-800480B6L#0SPW1-FC
TFT 7'' 800x480, LCD Module, Interface LVDS (20pin), 800 cd/m2, Resistive Touch Panel



DESCRIPTION



The WF70 is a 7-inch LCD Cell with thin film transistors as active elements and contains 800 (H) X 480 (V) pixels. Each pixel is divided into red, green and blue dot, which are arranged in vertical stripe. The cell is normally black mode, and can be applied to the transmission type display. Backlight unit (BLU) and circuit board for the cell are not built in.



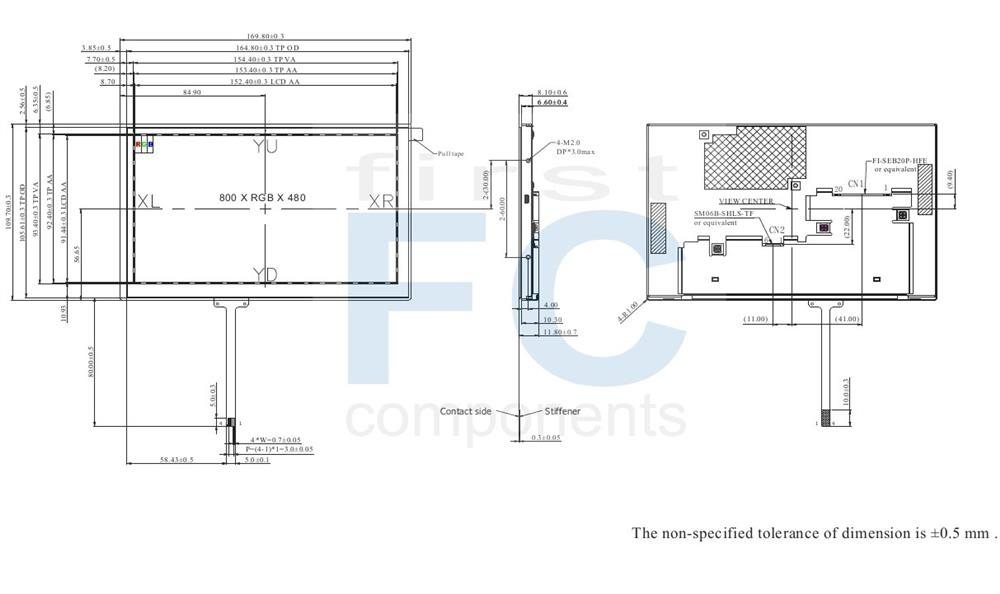

DRAWING







SPECIFICATION



Interface

LCM PIN Definition(CN1

Pin

Symbol

Function

Remark

1

VDD

Power voltage



2

VDD

Power voltage



3

GND(DISP)

Power Ground



4

GND

Power Ground



5

LINK0-

Input pins without termination resistor for LVDS mode. Keep these pins floating or connect to VSS1 if not used.



6

LINK0+



7

GND

Power Ground



8

LINK1-

Input pins without termination resistor for LVDS mode. Keep these pins floating or connect to VSS1 if not used.



9

LINK1+



10

GND

Power Ground



11

LINK2-

Input pins without termination resistor for LVDS mode. Keep these pins floating or connect to VSS1 if not used.



12

LINK2+



13

GND

Power Ground



14

CLKIN-

Input pins without termination resistor for LVDS mode. Keep these pins floating or connect to VSS1 if not used.



15

CLKIN+



16

GND

Power Ground



17

LINK3-

Input pins without termination resistor for LVDS mode. Keep these pins floating or connect to VSS1 if not used.



18

LINK3+



19

MODE

Input data format selection. Effective when FCS=1.



MODE

Function

Note



1

8-bit

Default



0

6-bit

-





20

SC

Scan direction selector (Low: Normal ;High: Reverse)





Backlight PIN Definition(CN2

Pin

Symbol

Description

1-2

NC

No connection

3

VLED1-

VLED1_ Cathode

4

VLED1+

VLED1_ Anode

5

VLED2+

VLED2_ Anode

6

VLED2-

VLED2_ Cathode



General Specifications

Item

Dimension

Unit

Size

7.0

inch

Dot Matrix

800 x RGB x 480(TFT)

dots

Module dimension

169.8 (W) x 109.7 (H) x 11.8 (D)

mm

Active area

152.40 x 91.44

mm

Pixel pitch

0.1905 x 0.1905

mm

LCD type

TFT, Normally Black, Transmissive

View Direction

80/80/80/80

TFT Interface

LVDS

TFT Driver IC

HX8249-A + HX8678-C or Equivalent

Aspect Ratio

15:9

Backlight Type

LED, Normally White

With /Without TP

With RTP

Surface

Anti-Glare



Electrical Characteristics

Operating conditions

Item

Symbol

Min

Typ

Max

Unit

Note

Supply Voltage

VDD

2.7

3.3

3.6

V



Current of power supply

IDD

-

133

200

mA

VDD =3.3V



LED driving conditions

Parameter

Symbol

Min

Typ

Max

Unit

Remark

LED current

-

-

2*110

-

mA



LED voltage

VLED+

18.9

21.0

23.8

V

Note 1

LED Life Time

-

-

100,000

-

Hr

Note 2,3,4



Optical Characteristics

Item

Symbol



Min



Unit

Remark

Response time

Tr+ Tf

8=0°、cD=0°

-

25

35

ms

Note 3

Contrast ratio

CR

At the center
point of AA

800

1000

-

-

Note 4

Color

Chromaticity

White

Wx

8=0°、cD=0

0.26

0.31

0.36

-

Note 2,6,7

Wy

0.28

0.33

0.38

-

Viewing
angle



OR

CR≧10

70

80

-



Note 1

OL

70

80

-


cDT

70

80

-

cDB

70

80

-

Brightness

-

-

700

800

-

cd/m2

Center of
display

Uniformity

(U)



75

-

-

%

Note5



SKU: WF70-800480B6L#0SPW1-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€110.10
€97.20
€79.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€110.10 excl tax



DESCRIPTION



The WF70 is a 7-inch LCD Cell with thin film transistors as active elements and contains 800 (H) X 480 (V) pixels. Each pixel is divided into red, green and blue dot, which are arranged in vertical stripe. The cell is normally black mode, and can be applied to the transmission type display. Backlight unit (BLU) and circuit board for the cell are not built in.



DRAWING







SPECIFICATION



Interface

LCM PIN Definition(CN1

Pin

Symbol

Function

Remark

1

VDD

Power voltage



2

VDD

Power voltage



3

GND(DISP)

Power Ground



4

GND

Power Ground



5

LINK0-

Input pins without termination resistor for LVDS mode. Keep these pins floating or connect to VSS1 if not used.



6

LINK0+



7

GND

Power Ground



8

LINK1-

Input pins without termination resistor for LVDS mode. Keep these pins floating or connect to VSS1 if not used.



9

LINK1+



10

GND

Power Ground



11

LINK2-

Input pins without termination resistor for LVDS mode. Keep these pins floating or connect to VSS1 if not used.



12

LINK2+



13

GND

Power Ground



14

CLKIN-

Input pins without termination resistor for LVDS mode. Keep these pins floating or connect to VSS1 if not used.



15

CLKIN+



16

GND

Power Ground



17

LINK3-

Input pins without termination resistor for LVDS mode. Keep these pins floating or connect to VSS1 if not used.



18

LINK3+



19

MODE

Input data format selection. Effective when FCS=1.



MODE

Function

Note



1

8-bit

Default



0

6-bit

-





20

SC

Scan direction selector (Low: Normal ;High: Reverse)





Backlight PIN Definition(CN2

Pin

Symbol

Description

1-2

NC

No connection

3

VLED1-

VLED1_ Cathode

4

VLED1+

VLED1_ Anode

5

VLED2+

VLED2_ Anode

6

VLED2-

VLED2_ Cathode



General Specifications

Item

Dimension

Unit

Size

7.0

inch

Dot Matrix

800 x RGB x 480(TFT)

dots

Module dimension

169.8 (W) x 109.7 (H) x 11.8 (D)

mm

Active area

152.40 x 91.44

mm

Pixel pitch

0.1905 x 0.1905

mm

LCD type

TFT, Normally Black, Transmissive

View Direction

80/80/80/80

TFT Interface

LVDS

TFT Driver IC

HX8249-A + HX8678-C or Equivalent

Aspect Ratio

15:9

Backlight Type

LED, Normally White

With /Without TP

With RTP

Surface

Anti-Glare



Electrical Characteristics

Operating conditions

Item

Symbol

Min

Typ

Max

Unit

Note

Supply Voltage

VDD

2.7

3.3

3.6

V



Current of power supply

IDD

-

133

200

mA

VDD =3.3V



LED driving conditions

Parameter

Symbol

Min

Typ

Max

Unit

Remark

LED current

-

-

2*110

-

mA



LED voltage

VLED+

18.9

21.0

23.8

V

Note 1

LED Life Time

-

-

100,000

-

Hr

Note 2,3,4



Optical Characteristics

Item

Symbol



Min



Unit

Remark

Response time

Tr+ Tf

8=0°、cD=0°

-

25

35

ms

Note 3

Contrast ratio

CR

At the center
point of AA

800

1000

-

-

Note 4

Color

Chromaticity

White

Wx

8=0°、cD=0

0.26

0.31

0.36

-

Note 2,6,7

Wy

0.28

0.33

0.38

-

Viewing
angle



OR

CR≧10

70

80

-



Note 1

OL

70

80

-


cDT

70

80

-

cDB

70

80

-

Brightness

-

-

700

800

-

cd/m2

Center of
display

Uniformity

(U)



75

-

-

%

Note5



Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 20
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 20
Preferred - Not Preferred Preferred
