WF70-800480D2D#0PW4-FC

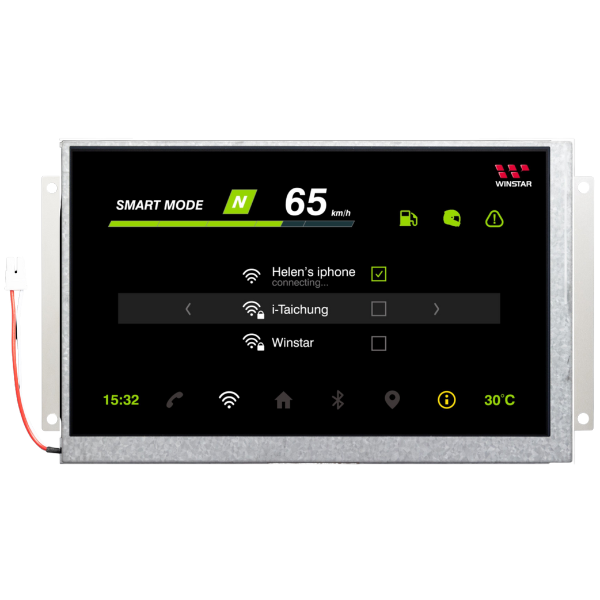

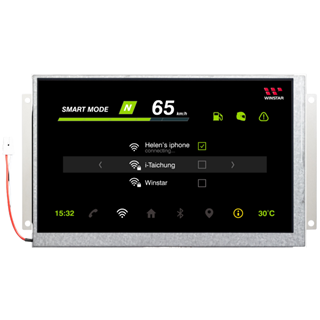

Picture of WF70-800480D2D#0PW4-FC Picture of WF70-800480D2D#0PW4-FC
TFT 7" 800x480 LCD Panel, Interface RGB (40pin), 450cd/m², Wide View Angle (IPS), Wide Temperature, Frame, No touch

DRAWING



SPECIFICATIONS

General Specification

1 LCD Type TFT
2 View Angle 85/85/85/85
3 Polarizer Transmissive
4 Screen size 7.0" (diagonal)
5 Display format 800 x RGB x 480
6 Operating Temperature -20°C~70°C
7 Storage Temperature -30°C~80°C
8 Active area 152.4 (W) x 91.44 (H)
9 Pixel pitch 0.1905(W) x 0.1905(H) mm
10 Color arrangement RGB-STRIPE
11 Brightness 400min. 450typ. cd/m2
SKU: WF70-800480D2D#0PW4-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€50.40
€42.00
€36.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€50.40 excl tax

DRAWING



SPECIFICATIONS

General Specification

1 LCD Type TFT
2 View Angle 85/85/85/85
3 Polarizer Transmissive
4 Screen size 7.0" (diagonal)
5 Display format 800 x RGB x 480
6 Operating Temperature -20°C~70°C
7 Storage Temperature -30°C~80°C
8 Active area 152.4 (W) x 91.44 (H)
9 Pixel pitch 0.1905(W) x 0.1905(H) mm
10 Color arrangement RGB-STRIPE
11 Brightness 400min. 450typ. cd/m2
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame Yes
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 152.40x91.44
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame Yes
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Related products
Picture of WF70-800480A6D#004-FC

WF70-800480A6D#004-FC

TFT 7" 800x480 LCD Panel, Interface RGB (40pin), 460cd/m² Square pixels, Frame, No touch (Replacement Winstar family WF70H)
From €60.60 excl tax

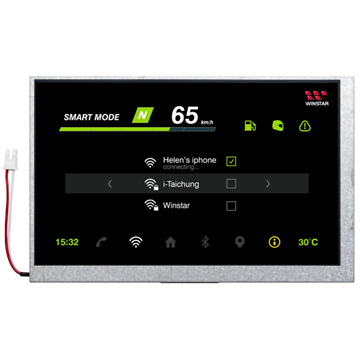

Picture of WF70-800480D2D#0PW0-FC
